Structure Steel Construction Drawing

1)Description:

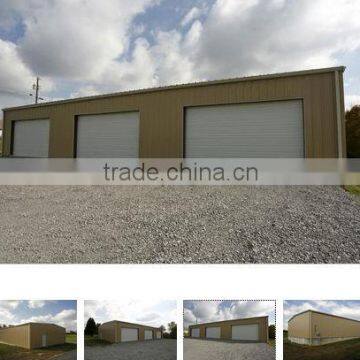

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. Light steel structure building is widely used in warehouses, workshops, large factories, and so on.

1. Features: fast and flexible to assemble, secure and safe, thermal and noise insulation, water proof and fire prevention;

2.Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;

3. Durability: The whole structrure is easy in maintenance, which can be used for more than 50 years.

4. Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it's also in line with the national level of fire prevention.

5.Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.

6.

Applications: applicable in kinds of industrial plants, shopping malls, exhibition halls, markets, warehouses, and grain storage garage, sports venues, culture workshops, station, the extension project, temporary roof construction, office-buildings,exhibition centres,stadiums,large scale commercial centres,civil and public buildings, etc.

Needing more steel structure products, pls contact us at your convenience.

2)Characteristics:
1. Wide span: Single span or multiple spans, the max span is 24m without middle column.
2. Low cost: Unit price range from USD35/sqm to USD70sqm according to customers request.
3. Fast construction and easy installation.
4. Long using life: Up to 50 years.
5. Others: Environmental protection, stable structure, earthquake proofing, water proofing, and energy conserving.

Pls tell your opinions:

Steel Structure projects cases:

If you are interested in our products, please give us the following information:
1. Dimension: Length, width, height, eave height, roof pitch, etc.
2. Doors and windows: Dimension, quantity, position.
3. Local climate: Wind speed, snow load, seismic magnitude etc.
4. Insulation material: Sandwich panel or steel sheet.
5. Crane beam: Do you need crane beam inside the steel structure? And its capacity.
6. Is there any materials that are not allowed to import into the country where the structure is planning to use?
7. If you have other requirements, such as fire proofing, isolated roof, etc, please also inform us.
8. It's better if you have your own drawings or pictures. Please send them to us.
