New Cnc Router Lathe Woodworking Engraving Cutting Machine With Three Heads Spindles/good Quality/for Sale Export CE ISO CO
- Qingdao/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
New Three Heads Spindles Cnc Router Lathe Engraving Carving Woodwooking Machine Milling/wood MDF Cheap Sale With 2 Year Warranty
-
New Three Heads Spindles Cnc Router Lathe Engraving Carving Woodwooking Machine Milling for Wood MDF Cheap Sale
-
CNC Laser Wood Varving Granite Stone Laser Engraving Machine Laser Wood Carving Machine
-
Laser Cutting Machine for Nameplate 3d Laser Cutting Machine Price,laser Engraving Cutting Machine for Sale
-
Scrapbooking Laser Cutting Machine 2016 New Type 3d Laser Engraving Machine From China Factory
-
50w Co2 Laser Engraving and Cutting Machine Co2 Laser Engraving Cutting Machine Spare Parts
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Senke | |
| Model Number | SKW-1325 | Voltage | 220v/380v/410V | |
| Power(W) | depend on spindle | Dimension(L*W*H) | 1300*2500*200mm | |
| Weight | 1200KGS | Certification | CE,CO,Form A,Form E,FTA | |
| Warranty | two years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

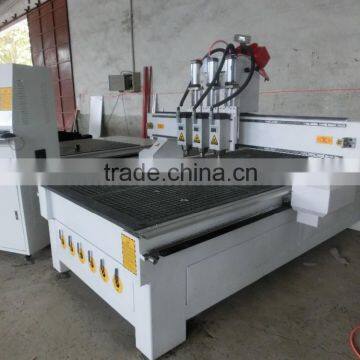

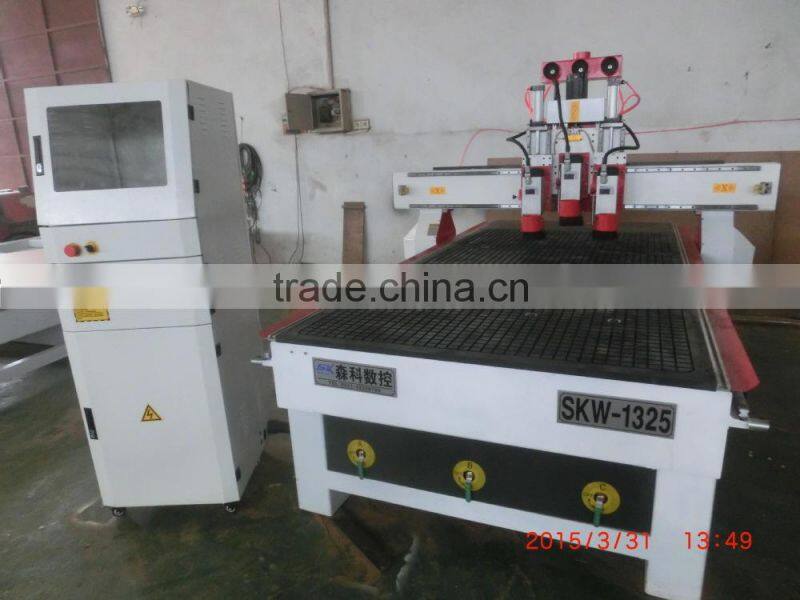

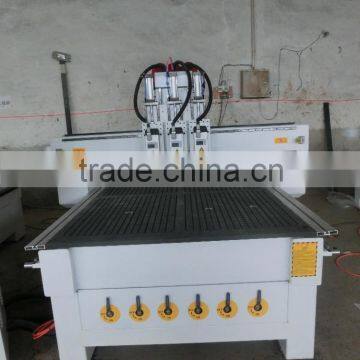

woodworking cnc machine with three spindles
Model | SKW-1325 |
Working area (X*Y*Z) | 1300*2500*200mm |
Table size | 1750*3050*1740mm |
Body structure | Thicken steel made |
X, Y Structure | Taiwan Miko rack and pinion |
rails | Taiwan hiwin square rails |
Z Structure | Taiwan TBI ball screw |
X, Y Resolution | <0.01mm |
Max Moving Speed | 40000mm/min |
Max Engraving Speed | 20000mm/min |
XYZ traveling positioning accuracy | ±0.01mm |
XYZ repositioning accuracy | ±0.01mm |
Spindle power | 3.2KW HQD brand water cooling(4.5KW/5.5KW optional) |
collect | ER25 |
Spindle Speed | 0-24,000rpm |
Voltage | 220v/single or 380v/3phase or as customer needed |
Drive type | Stepper motors and leadshine drivers |
Working Dictate | G Code |
Operating system | DSP (A11 model)/(NC-studio,mach3 optional) |
Interface | USB |
Flash memory | 128M |
software | Artcam 8.1(free supply) |
Tool sensor | Yes,included |
Auto oil lubricator | Yes,included |
Wire protect | Yes,included |
Running Environment | Temperature: 0℃~45℃ |

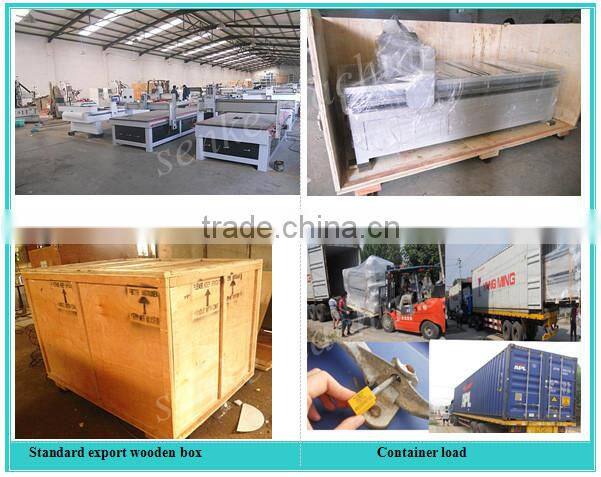

package | Export wooden box |
After packed size | 3.2*2.1*1.89M |
G.W | 1200kgs |
Advertising industry: advertising materials such as PVC, acrylic, double color plate processing
cnc machine working on metals video:
https://youtu.be/MIgaRweiFag
Laser auto feeding cutting machine engraving cloth video:
https://youtu.be/0mxo8JY_KWQ
laser engraving&cutting machine making hole on wood:
/watch?v=dcgU69i5AjY
plasma cutting machine cutting on iron working video:
/watch?v=y43Tlr3Hbms
cnc engravine machine on wood door working video:
/watch?v=zPpRkoIUyiM
- We provide two years warranty for the machine.
-All extra parts for the machine can be purchased with agent price.
- Email/ Skype/ WhatsappTrade manager online to support.
-Professional technical team and salesperson help you with troubleshooting
procedures via Internet and Phone any time when needed.
-Free and professional training at our factory.
-Door-to-door service if necessary
