32 IP QAM Modulator / ip input rf Modulator / IP QAM

Overview:

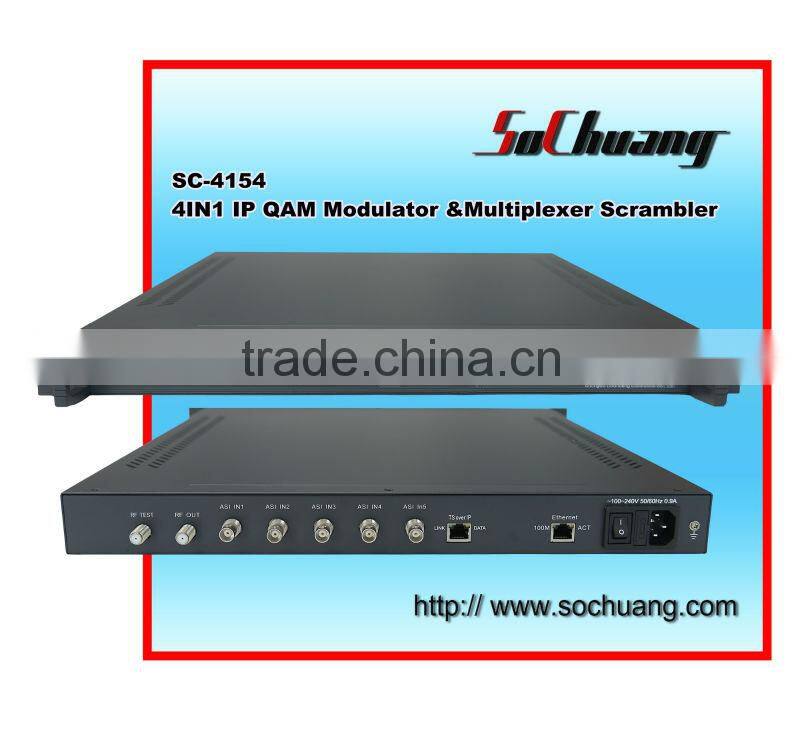

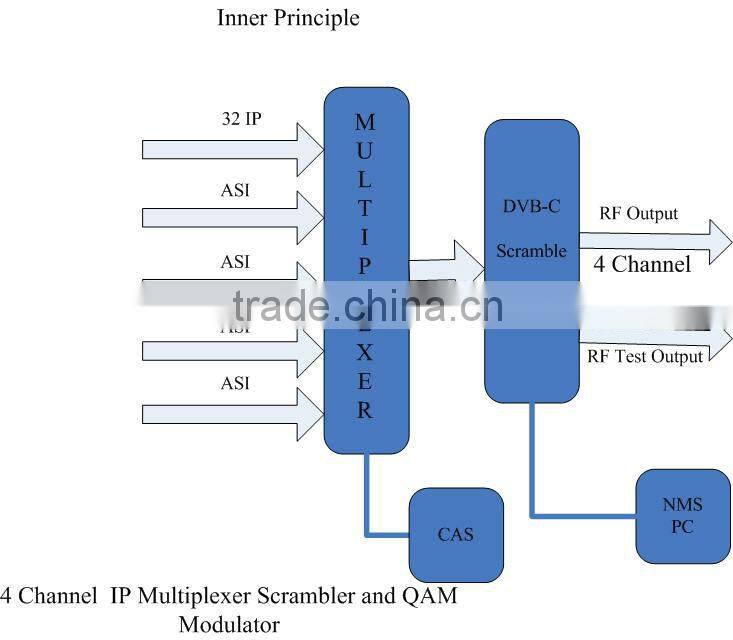

 4 in 1 IP QAM Modulator with Scrambler multiplexer is a cost effective integrated IP QAM modulator scrambler

multiplexer designed by Sochuang Company. It support 32 ip input ,ip signal are sent to signal processor

 after synchronized process ,doing scrambling, multiplexing and modulating , directly output 4 channel

QAM RF DVB-C signal. It has excellent RF performance(Mer,Ber,etc.). One 4 in 1 IP QAM Modulator with Scrambler

multiplexer can work as 4 stand alone scrambler, support 4 channel simual encryption with 4 CAS. LCD dispay,

keyword operation and NMS network management.

Features:

u  Meet DVB standard channel coding;

u  Support full range of variable Symbol Rate and QAM mode;

u  8M cache, anti-burst stream;

u  Data filling function;

u  Configurable PID filter, re-mapping, PSI, SI information synchronization update;

u  Support NIT table inserts;

u  Real-time transport stream monitoring;

u  PCR correction;

u  Fixed or variable frequency output;

u  Provide RF output monitoring port (-20dB);

u  Local and remote control;

u  LCD display, easy to operate;

u  High reliability design, stable.

 Technical Specifications:

Specifications

IP QAM Modulator with MUX-Scrambler(32 IP in,4 RF out)

32 IP in,MPTS/SPTS
4 dvb-c/qam channels RF out
scrambler,multiplexer

NMS settings:

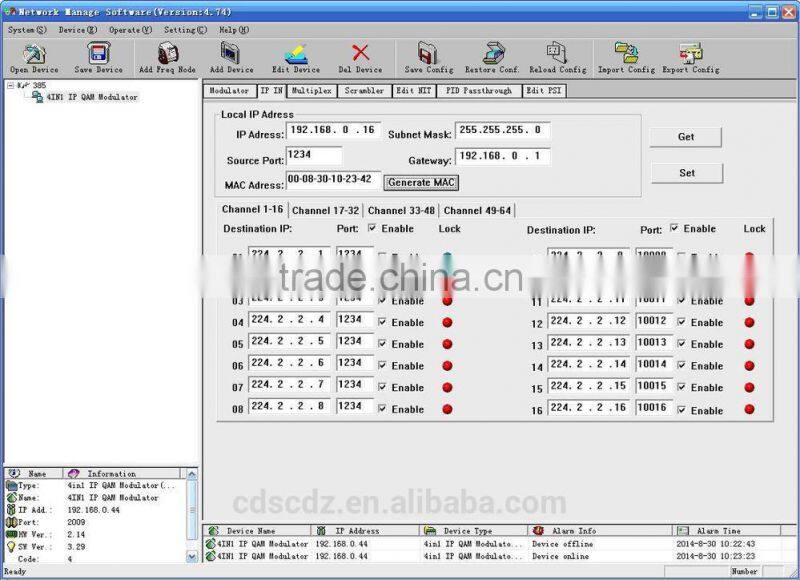

P1: IP input setting

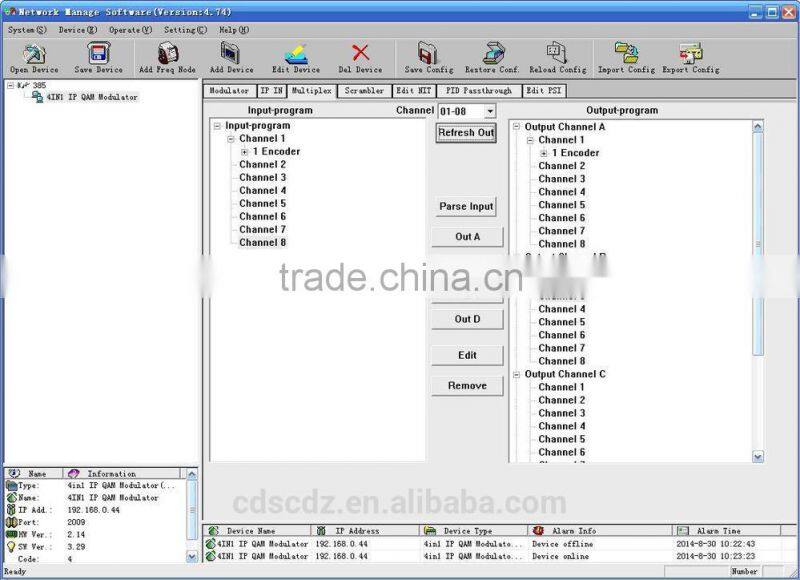

P2: Multiplexer setting

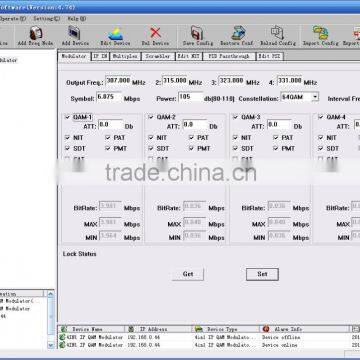

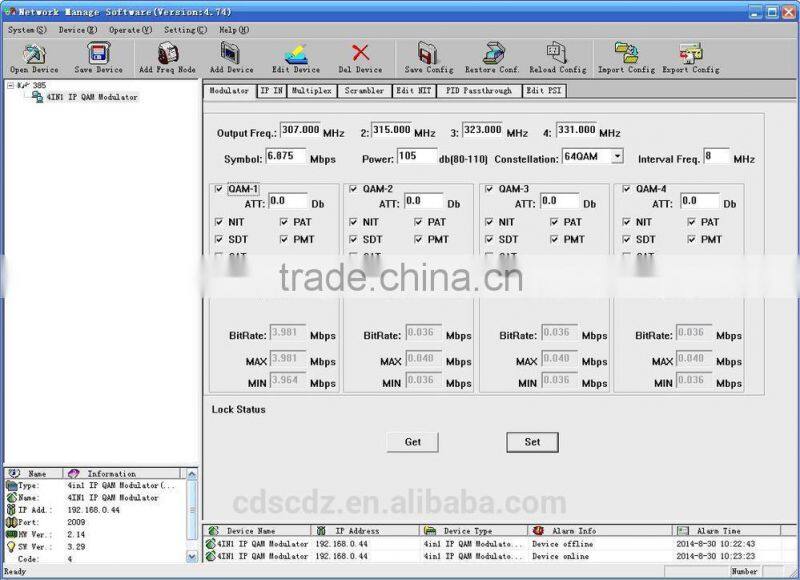

P3: Modulator setting

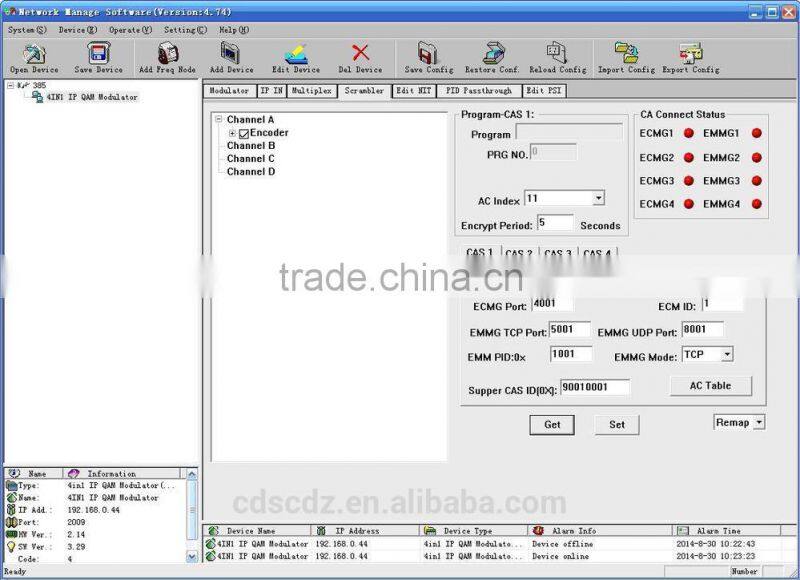

P4: Scrambler setting

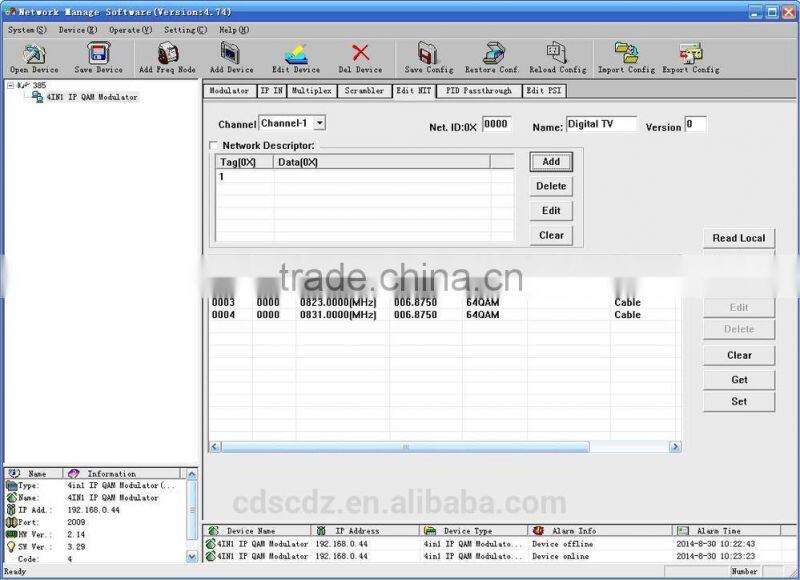

P5: Edit Nit table

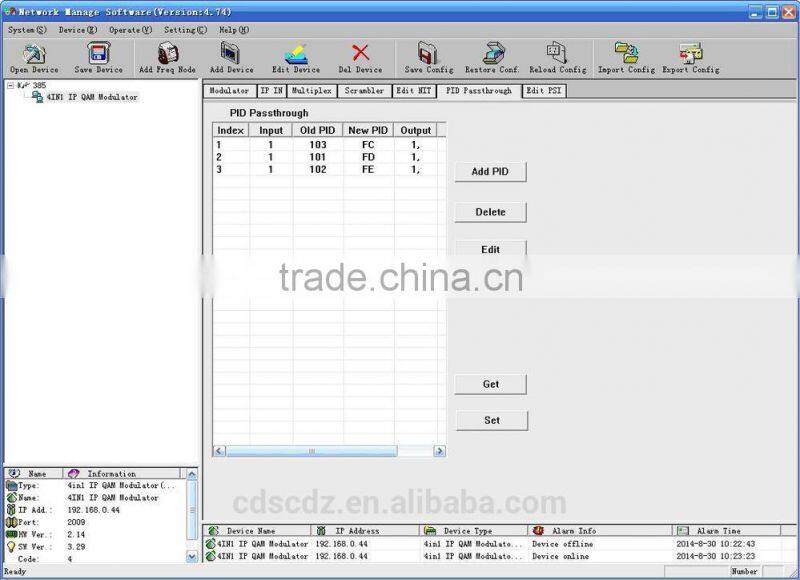

P6: PID passthrough setting

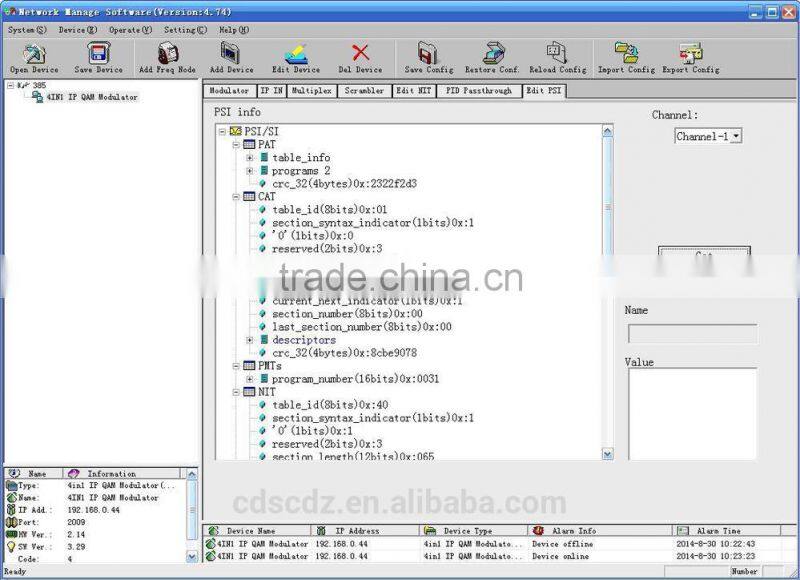

P7: Edit PSI
