1325 Cnc Router 4 Axis /vacuum Bed Cnc Woodworking Machine With Rotary From Manufacture With Good Quality
- Tianjin/Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CNC Cylinder Engraving Machine/cylinder Cnc Router Double Heads Machine for Wood Engraving With Good Quality and Good Reputation
-
High Precision 4 Axis 6090 Cnc Router Alunimum Wood Price Competitive
-
2015 New Cnc Router Wood 3030 1.5kw Water Cooling Cheap 3636 Cnc Router Wood
-
DSP Control System Steel Milling Machine Cnc Router Sheet Metal Cutting Machine 4040
-
New Designed Metal CNC Router Excellence Performance Sheet Metal Cutting Machine SKA-6090
-
3030/6060/6090 Alumium /copper/acrylic/wood/stainless Steel Engraving Cutting Cnc Router Machines for Sale
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | Senke | |
| Model Number | SKW-1325 | Voltage | 220v/380v, AC220V/380V | |
| Power(W) | depend on spindle power | Dimension(L*W*H) | 1300*2500mm | |
| Weight | 1250KGS | Certification | CE,CO,Form A,Form E,FTA etc | |
| Warranty | two years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
cnc woodworking machine with rotary
Product Description
Features:
2. High power spindle, water cooling/air cooling, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.
4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press
Techncial parameters:
Discription | Parameter | |||
SKW-1325R | SKW-1530R | SKW-2040R | Option | |
Working Area (X*Y*Zmm) | 1300*2500*200mm | 1500*3000*200mm | 2000*4000*200mm | Sizes customized |

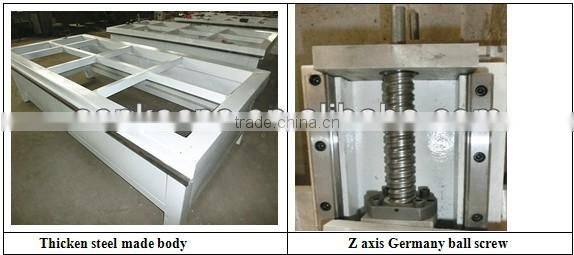

Body structure | Steel tubes | |||

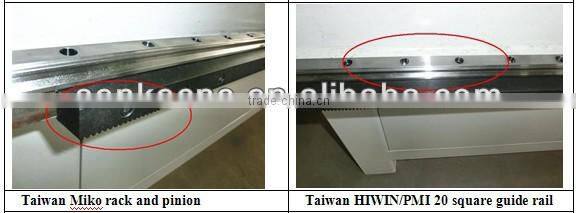

X, Y Structure | rack and pinion drive | |||
Z Structure | Ball Screw/option gear wheel | |||
X, Y Resolution | <0.01mm | |||
Max Moving Speed | 32000mm/min | |||
Max Engraving Speed | 20000mm/min | |||
XYZ traveling positioning accuracy | 0.03/300mm | |||
XYZ repositioning accuracy | 0.03mm | |||
Spindle power | 3kw/4.5kw/5.5KW/8KW(can be choices) | |||
Spindle Speed | 6000-24,000rpmrpm | |||
Table style | Fixture/option vacuum table | |||
Dust collection | Can add or not | |||
Voltage | AC220V/50Hz | |||

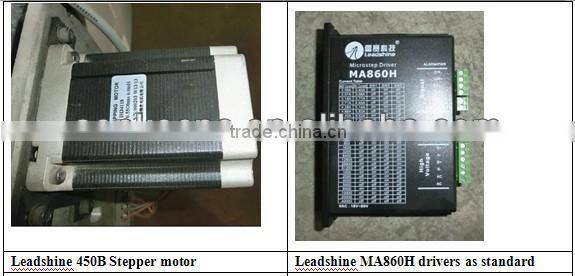

Drive type | Stepper/Option:servo | |||
Working Dictate | G Code ,HPGL | |||
Operating system | Dsp System/option syntec or LNC | |||
Interface | USB | |||
Flash memory | 128M(U Disk) | |||

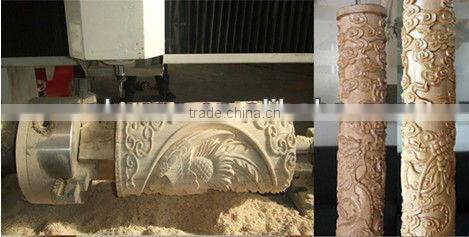

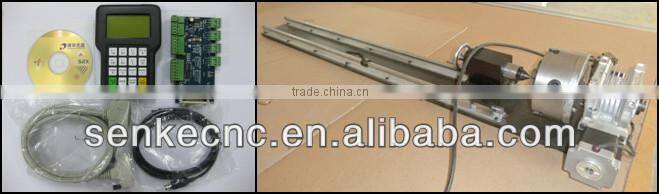

DSP control Rotary axis
Application materials:
advertising signs, PVC plate,double-color board, sign making, acrylic cutting, moulds making for vacuum thermforming, letter cutting, brand making, PVC cutting, crystal board engraving, acrylic engraving, LED channel letter outline shaping etc
cylindrical wood materials
Guarantee & After Sales Service:
1) The machine guarantee is two years .
2) 24 hours technical support by phone, email or msn.
Why you can rest assured choice of our products?
----First, the strong production capacity
1.Using international top equipment, advanced developing and manufacturing processes
2.Multiple rigorous safety certification testing, ensure equipment performance
3.Every product must be strictly controlled, to ensure that 100 percent qualified before delivery
----Second, professional technical support
1.Have a professional management team and service team
2.For the industry, provide the most professional equipment operating, maintenance and repairing
3.One to one provide you with CNC machining solutions tailored for their processing need
----Third, the brand strength
1.Together with research, development, production, sales
2.Rich experience in production technology, equipment has high speed, high precision, high stability
3.We has passed the international quality certification standards, a number of product get patent certificate
----Fourth, the quality of service
1.Service users throughout the world, excellent reputation

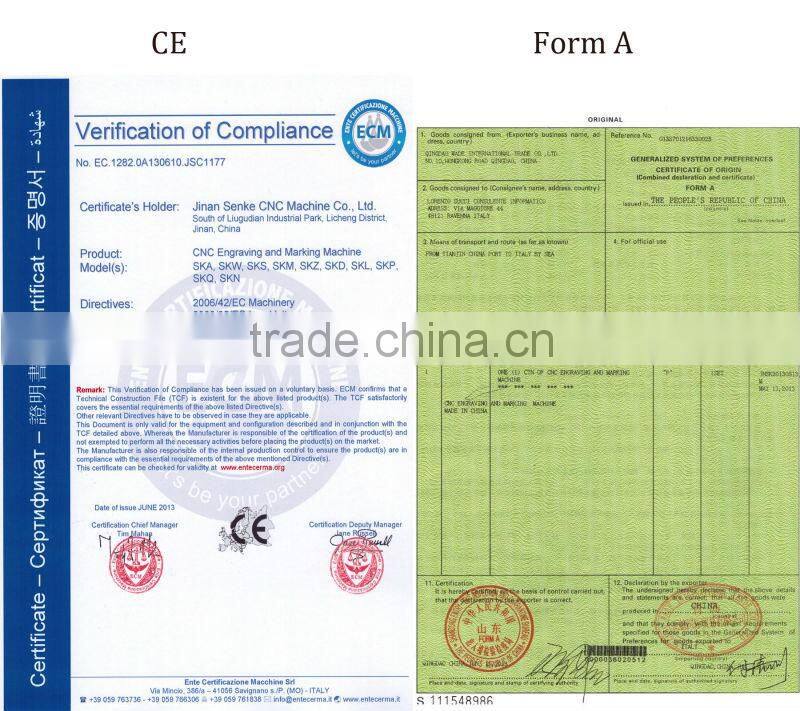

All our certifications ( CE/CO/FORM A/FORM E/FTA ect )
Contact Us
- Jinan Senke CNC Machine Co., Ltd.
- Contact namesenkecnc wang Chat Now
- Phone86-531-88099059
- AddressSouth Of Liugudian Village, Hehua Road Street, Licheng District
