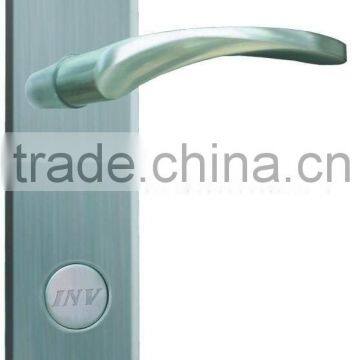

RF electric copper lock

Specifications

RF electric  lock

1.hotel electronic lock Performance

*Applicable card: TEMIC® contactless RF card or MIFARE ONE® contactless RF card, 100,000 times life.

*Material: Stainless steel; Stainless steel with golden PVD finished; Brass; Alloy with chrome plated---- moisture proof, fire retardant.

*Power supply: 4 standard AAA alkaline batteries.

*Battery life: About 10 months in normal state, depending on both usage and climatic conditions.

*Low voltage warning: When power’s voltage is less 4.5V, there will be warning when unlock. The lock can still be unlocked about 200 times before the batteries are replaced.

*Static consumption: <12uA.

*Dynamic consumption: <200mA.

*Humidity: 15%-90%

*Open time: The lock will be locked again automatically 7 seconds after unlocking.

*Reliability of card insertion: No accident for 10,000 times of continuous card insertion.

2.hotel electronic lock Function

*Easy to use: The lock is operated by handles from both the inside and the outside of the door. Outside handle is fixed while in locking state; the handle can be turned only in unlocking state. The Inside handle can be turned always. When ingress, the guest swipe the keycard then the lock unlocked, turn the outside handle to open the door; when egress, the guest turn the inside handle directly to open the door.

*Emergency unlocking: The door can be opened by Master Card or Mechanical key even if the deadbolt works.

*Free INV hotel lock management system software provided. Step by step installation software, easy operation.

*Keycards are limited by lock’s clock, when the guest’s lodging is out of the deadline, the keycard will be invalid, and so the guest has to take the card to renew.

 *Keycards are grouped into several levels to make the access authority clear. There are Master Card, Building Card, Floor Card, Waiter Card, and Guest Card. Hotel managers can modify the authority of each card according to actual need at any moment.

        Master Card: can unlock all of the locks belong to the system without time’s limited, even the deadbolt locks.

      Building Card: Can unlock the locks belong to corresponding building; cannot unlock the deadbolted locks, with time’s limited.

      Floor Card: Can unlock the locks belong to corresponding floor; cannot unlock the deadbolted locks, with time’s limited.

        Waiter Card: Can unlock the locks belong to corresponding floor in specifying timeslice; cannot unlock the deadbolted locks, with time’s limited.

     Guest Card: For the guest to open the room he/she lodges in within the specifying period of time.

*One keycard to open more doors /multiple floors.

*Stop the permissions of Guest Card or Floor Card etc temporarily.

*Report the loss of keycard: the lost keycard can be invalidated by simple card operations on the lock or put the card number to blacklist directly.

*The lock memorizes the latest 400 access records to be checked for case, guarantee the security management.

* Interface functions:  provide dynamic link library, can joint all the hotel management system at home and at broad , in order to share hotel information resources

3.hotel electronic lock Installation

*Installation request: To be installed on the door, with the thickness between 38mm and 70mm, and if the door surface is decorated, the distance between the decorative edge and the edge of the door must be over 110mm.

*Handle orientation: left hand push to open, right hand push to open;

* Multiple options for mortise: ANSI mortise (5 latch mortise) / European mortise (5 latch mortise)

*Weight: 3.5kgs / set

4.hotel electronic lock Quality

*CE certified.

* National security product test passed

5.hotel electronic lock Service

*Offering OEM/ODM service for many famous brands
