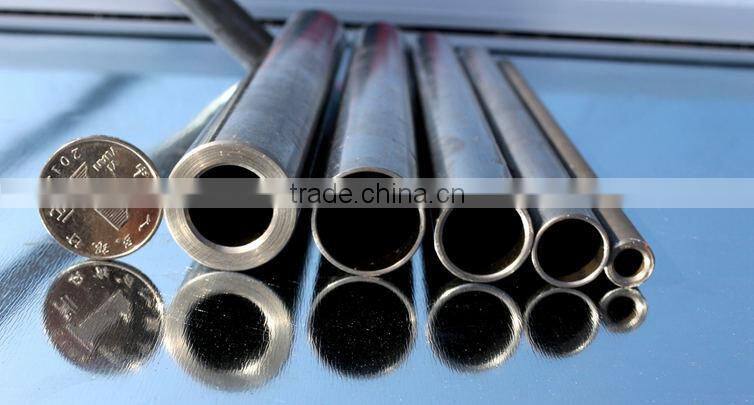

DIN2391 High Precision Black Phosphated Seamless Steel Tube
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Thickness | 0.6, 10 | Section Shape | Round | |
| Outer Diameter | 6 - 60 mm | Place of Origin | Jiangsu, China | |
| Secondary Or Not | Non-secondary | Application | Hydraulic Pipe | |
| Technique | Cold Drawn | Alloy Or Not | Non-alloy |
Product Description
Brand | seamless steel pipe |
Material | St35,St45,St52,E215,E235,E355,10,20, A106,A179,A192,A210,T11 |
T22,T12, AISI4130,SAE1010,SAE1020.etc | |
Standard | Meet or exceed ASTM,ASME,API,ANSI and DIN standards. |
ASTM A106/A179/A192/A210/A213/A519 etc. | |
DIN2391/DIN17175/EN10305 etc | |
GB8162/GB8163/GB3639 etc | |
Technique | Cold Drawn/Cold rolled |

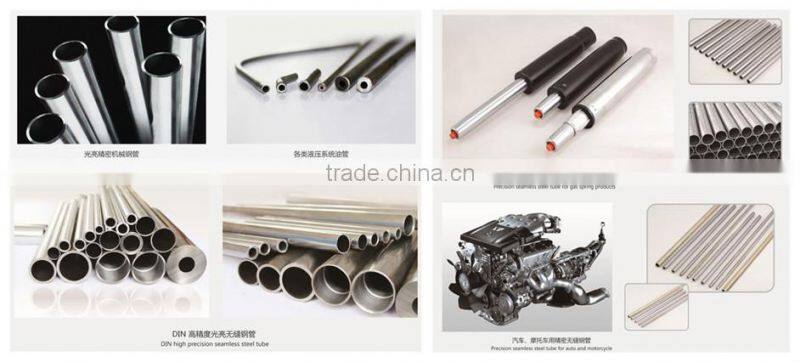

Usage | 1. auto and motorcycle steel pipe |
2. Gas spring steel Tube | |
3. Boiler Pipe | |
4. Low and middle pressure fluid transportation pipeline | |
5. Hydraulic system steel tube | |
6. Electric industry |
| Application | Cold drawn or cold rolled precision seamless steel tubes for hydraulic pressure and pneumatic services. |
| For Auto use,machinery use,oil cylinder tube,motorcycle shock reducer use,auto shock reducer inner cylinder,gas spring use etc. | |
| Seamless steel pipes for low and medium pressure boiler, high pressure boiler, ship-building,Liquid service, petroleum cracking, chemical fertilizer equipment,Drawing-oil-equipment and structure purposes. |

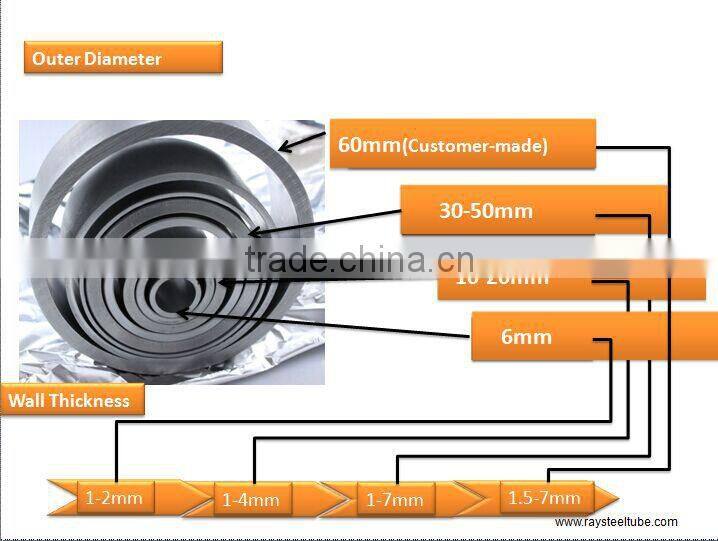

Specification Range of Seamless Steel Pipe | ||||||||||
OD(mm) | WALL THICKNESS(mm) | |||||||||
6 | 1 | 1.5 | 2 | _ | _ | _ | _ | _ | _ | _ |
8 | 1 | 1.5 | 2 | 2.5 | _ | _ | _ | _ | _ | _ |
10 | 1 | 1.5 | 2 | 2.5 | 3 | _ | _ | _ | _ | _ |
12 | 1 | 1.5 | 2 | 2.5 | 3 | _ | _ | _ | _ | _ |
14 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | _ | _ | _ | _ |
15 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | _ | _ | _ | _ |
16 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | _ | _ | _ | _ |
18 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | _ | _ | _ |
20 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | _ | _ | _ |
22 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | _ | _ | _ |
25 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | _ | _ | _ |
28 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | _ | _ | _ |
30 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | _ | _ |
32 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | _ | _ |
34 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | _ |
35 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
38 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
40 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
42 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
45 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
48 | _ | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
50 | _ | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
52 | _ | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
54 | _ | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
55 | _ | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
58 | _ | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |
60 | _ | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 |

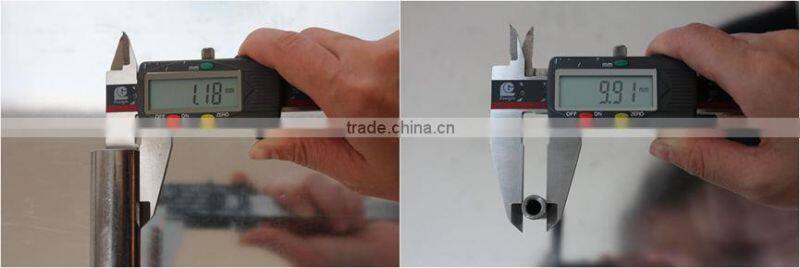

Dimension tolerance comparison Chart | ||||
OD(mm) | GB/T3639 | DIN2391(EN10305) | We can control | Our Advantage |
6-30mm | ±0.10mm | ±0.08mm | ±0.05mm | ±0.02mm |
31-40mm | ±0.15mm | ±0.15mm | ±0.05mm | ±0.03mm |
41-50mm | ±0.20mm | ±0.20mm | ±0.05mm | ±0.03mm |
51-60mm | ±0.25mm | ±0.25mm | ±0.08mm | ±0.03mm |
61-65mm | ±0.30mm | ±0.30mm | ±0.10mm | ±0.05mm |
Thick tolerance | ±0.12mm | ±0.10mm | ±0.05mm | ±0.03mm |

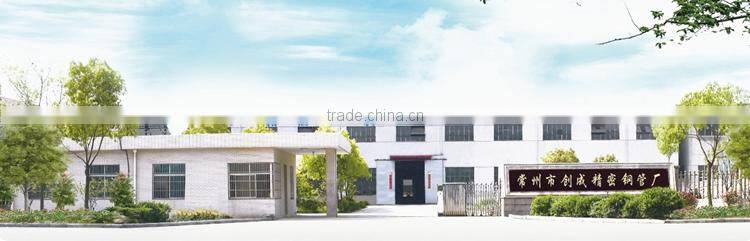

Changzhou Raymond steel tube Co.,Ltd is located in Wujin District,Changzhou City,Jiangsu Province,China.Where is Yangtze River Delta Ecnomic Development Zone and nearby Shanghai City(one hour by high-speed train).The convenient transportation,developed commercial law enable it to be the first choice place for foreign friends all over the world to find business opportunities in China.

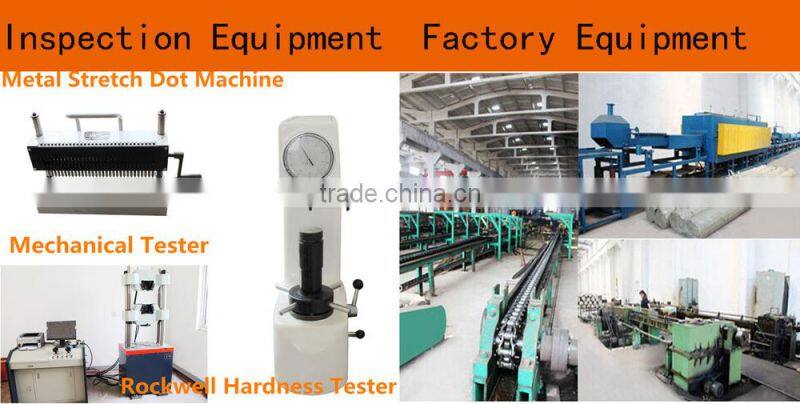

Our company was founded in 2002,with covering an area of more than 20000 Square meters,and more than 100 employees.Cold drawn and cold rolled precision seamless steel pipes and tubes are our main products,for which we have more than 10 years experience.Meanwhile we have specialized machining equipment,strong technical strength and advanced technology and so on.Our quality is ensured and we were certified to ISO 9001-2008 Certificate and got "Jiangsu quality credit AAA grade brand enterprise" title.
We are sincerely looking forward to cooperating with you!
