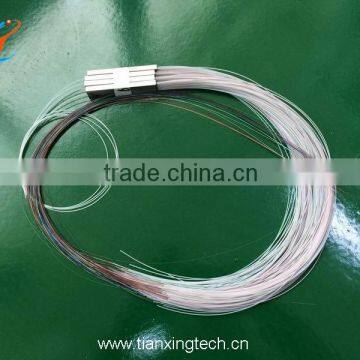

0.9mm 1x64 mini type optical fiber PLC splitter

FOB Price

US$ 30 - 34 / Piece

500 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	tianxing
Model Number	1x64 optical plc splitter

0.9mm 1x64 mini type optical fiber PLC splitter

1. Feature

1).Low Insertion loss

2).Low PDL

3).Compact Design

4).Good channel-to-channel uniformity

5).Wide Operating Wavelength: 1260-1650nm

6).Wide Operating Temperature: -40°C - 85°C

7).High Reliability and Stability

2. Application

1).FTTX Systems

2).PON Networks

3).CATV Links

4).Optical Signal Distribution

3. Specification

Product Description

Fiber optic PLC splitter technical specifications
wavelength(nm)	1260-1650
parameters	1x2	1x4	1x8	1x16	1x32	1x64	1x128
insertion loss (dB)	≤4.2	≤7.4	≤10.7	≤13.9	≤17.2	≤21.5	≤24
PDL (dB)	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.4	≤0.5
Uniformity (dB)	≤0.6	≤0.8	≤0.8	≤1.0	≤1.5	≤2.0	≤2.0
return loss (dB)	≥50
directivity (dB)	≥55
temperature range (°C)	-40~+75
storage temperature (°C)	-40~+85
NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB.

4. Product show

5. Factory bulding
