Mini mod fibre optico PLC splitter 1x8 SC APC ,1.5m
US$ 4 - 15
/ Piece
500 Pieces(Min. Order)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tianxing | |
| Model Number | fibre optico PLC splitter 1x8 |
Product Description
Mini mod fibre optico PLC splitter 1x8 SC APC ,1.5m
1. Feature
1).Low Insertion loss
2).Low PDL
3).Compact Design
4).Good channel-to-channel uniformity
5).Wide Operating Wavelength: 1260-1650nm
6).Wide Operating Temperature: -40°C - 85°C
7).High Reliability and Stability
2. Application
1).FTTX Systems
2).PON Networks
3).CATV Links
4).Optical Signal Distribution
3. Specification
| Fiber optic PLC splitter technical specifications | |||||||
| wavelength(nm) | 1260-1650 | ||||||
parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
insertion loss (dB) | ≤4.2 | ≤7.4 | ≤10.7 | ≤13.9 | ≤17.2 | ≤21.5 | ≤24 |
| PDL (dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 |
| Uniformity (dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 |
| return loss (dB) | ≥50 | ||||||
| directivity (dB) | ≥55 | ||||||
| temperature range (°C) | -40~+75 | ||||||
| storage temperature (°C) | -40~+85 | ||||||
| NOTE: The above parameter is for splitter with connector, if w/o connector, insertion loss will reduce by 0.2dB. | |||||||

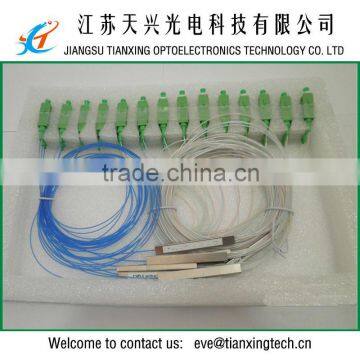

4. Product show
5. Different types
6. Workshop
7. shipment
Packaging & Shipping
8. Why choose us:
Tianxingtech was founded in 2010, but we have a experienced team in this field which speciallized in optical products, especially for PLC splitters and fiber optic patch cords. We promise to provide the best service, qualified products and competitive price for you.
a. We imported high precision equipments from Japan.
b. For the ceramic ferrules, we buy from CCTC; and the fiber, we buy from corning and tyco.
c. We make the FA ourselves, and we can control costs effectively.
d. Fast shipment: Generally, according to the quatity, we make the delivery within 3-10 working days, and if you are uragent for the products, just let me know, and we will try to ahead the diliver date.
e. You can choose any express you are available, such as DHL, FedEx, UPS, we have a long-time cooperation with these express, and we can get the best discount from them, so, I am sure we can offer you the cheaper shiping cost.
9. Contact us
Sales: Eve Yao
Skype: trade. eve
web:
Tel: 86 511 83565358
Fax: 86 511 83565357
we sincerely hope to expand the cooperation with all the customers both at home and overseas,Each member of our term is dedicated to excellence and encouraged to be creative and to take the initiative.above all we strive to service your requirements in such a way that you,our partner will feel nice about doing business with us, we are looking forward to geting any requirement from you.
