Home > Products > patch cord / pigtail > 0.9mm / 2.0mm / 3.0mm aqua SC OM3 fiber pigtail
0.9mm / 2.0mm / 3.0mm aqua SC OM3 fiber pigtail
Negotiable
/ Piece
500 Pieces(Min. Order)
- shanghai
- T/T
You May Like
-
single mode lc duplex optical patch cord
-
LC APC 1.5M 2.0mm fiber optic pigtail
-
Aqua 50/125 simplex SC-FC fiber optic patch cord
-
Orange SC PC multi mode fiber optic patch cord
-
SC APC 0.9mm single mode fiber optic network cable for WANS and LANS
-
FC APC 9/125 0.9mm fiber optic pigtail support 10 gigabit data transmitting rates
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tianxingtech | |
| Model Number | aqua SC OM3 fiber pigtail |
Product Description
0.9mm / 2.0mm / 3.0mm aqua SC OM3 fiber pigtail
1. Features:
---Price Competitive
---Low Insertion Loss & PDL
---Factory-terminated and Tested
2. Applications:
---Telecom Net
---Local Ring Net
---Optical Fiber Sensor
---Optical Fiber Test Equipment
---Optical Fiber Communication System
---FTTH,LAN,PON & Optical CATV.
3. Technical specification:
| Mode | Singlemode | Multimode | ||||||||||||||
| Fiber Type | OS1 (9/125μm) | OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm) | ||||||||||||||
| Operating Wavelength | 1310 nm ; 1550nm | 850nm | ||||||||||||||
| Jacket material | PVC,LSZH,OFNR | |||||||||||||||
| Diameter of fiber | 0.9mm ; 2.0mm; 1.8mm ; 3.0mm | |||||||||||||||
| Contector | C/PC,FC/PC,LC/PC,E2000/APC | |||||||||||||||
| polishing method | PC | UPC | APC | PC | ||||||||||||
| Insertion loss (IL) | ≤0.2dB | ≤0.20 | ≤0.30 | ≤0.2dB | ||||||||||||
| Return loss (RL) | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||||||||||
| Repetitiveness | ≤0.1dB | |||||||||||||||
| Exchangeability | ≤0.2dB | |||||||||||||||
| Durability | >1000 times | |||||||||||||||
| Operating Temperature | -40~+80°C | |||||||||||||||
| Storage Temperature | -40~+85°C | |||||||||||||||
| Length | customized | |||||||||||||||

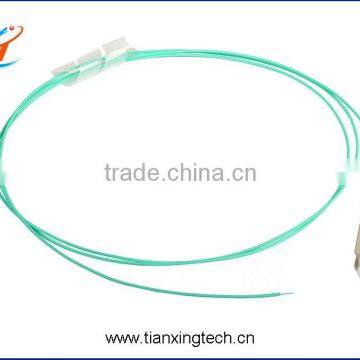

4. Product show
5. Factory bulding
6. shipment
Packaging & Shipping
1. packing: the packing are according to your instruction.
2. shipping: the sample will be arranged within 7 days, and the order shippment will be arranged according to the quatity.
7. Contact us
Sales: Eve Yao
Skype: trade. eve
web:
Tel: 86 511 83565358
Fax: 86 511 83565357
We sincerely welcome all interested buyers to visit our factory and contact us directly for further information, we will reply you as soon as possible!
