Home > Products > patch cord / pigtail > 2.0mm LC APC fiber optic patch cord
2.0mm LC APC fiber optic patch cord
Negotiable
/ Piece
200 Pieces(Min.Order)
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tianxingtech | |
| Model Number | LC APC fiber optic patch cord |
Product Description

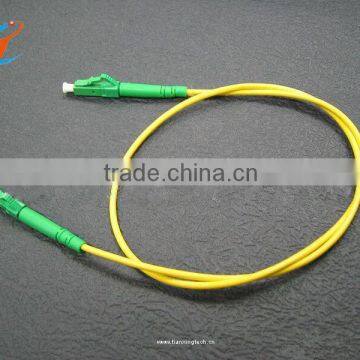

2.0mm LC APC fiber optic patch cord
1. Features:
---Price Competitive
---Low Insertion Loss & PDL
---Factory-terminated and Tested
2. Applications:
---Telecom Net
---Local Ring Net
---Optical Fiber Sensor
---Optical Fiber Test Equipment
---Optical Fiber Communication System
---FTTH,LAN,PON & Optical CATV.
3. Technical specification:
| singlemode fiber optic patch cord | |||
| fiber type | OS1(9/125) | ||
| Operating Wavelength | 1310 | ||
| Jacket material | PVC/LSZH | ||
| Diameter of fiber | Diameter of fiber | ||
Contector | SC ; LC or customized | ||
polishing method | PC | UPC | APC |
| Insertion loss (IL) | ≤0.2dB | ≤0.2 | ≤0.3 |
| Return loss (RL) | ≥45dB | ≥50dB | ≥60dB |
| Repetitiveness | ≤0.1dB | ||
| Exchangeability | ≤0.2 | ||
| Durability | >1000 times | ||
| Operating Temperature(ºC) | -40~85 | ||
| Storage Temperature(ºC) | -40~85 | ||
| length | customized | ||
| Multimode fiber optic patch cord | |||
| fiber type | OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm-150; 50/125μm-300) | ||
| Operating Wavelength | 850 nm | ||
| Jacket material | PVC/LSZH | ||
| Diameter of fiber | Diameter of fiber | ||
Contector | SC ; LC or customized | ||
polishing method | PC | UPC | APC |
| Insertion loss (IL) | ≤0.2dB | ≤0.2 | ≤0.3 |
| Return loss (RL) | ≥45dB | ≥50dB | ≥60dB |
| Repetitiveness | ≤0.1dB | ||
| Exchangeability | ≤0.2 | ||
| Durability | >1000 times | ||
| Operating Temperature(ºC) | -40~85 | ||
| Storage Temperature(ºC) | -40~85 | ||
| length | customized | ||
4. Product show
5. Factory bulding
Company Information
6. shipment
Packaging & Shipping
1. packing: the packing are according to your instruction.
2. shipping: the sample will be arranged within 7 days, and the order shippment will be arranged according to the quatity.
7. Contact us
Sales: Eve Yao
Skype: trade. eve
web:
Tel: 86 511 83565358
Fax: 86 511 83565357
We sincerely welcome all interested buyers to visit our factory and contact us directly for further information, we will reply you as soon as possible!
