China Factory Price SM 9/125um 3.0mm PVC Jacket 3M Simplex Patchcord FC
US$ 0.4 - 10
/ Piece
500 Pieces(Min. Order)
- shanghai
- T/T
You May Like
-
China Supplier 9/125um Simplex 3.0mm PVC Jacket 3M FC APC Fibre Patch Cord
-
9/125 SM Simplex 3.0mm 3M SC SC Optical Patch Cable
-
9/125um SM 3.0mm 6M SC LC Patch Cord
-
China Factory Single Mode SX 3M Patchcord SC/APC
-
Single Mode Simplex 2.0mm 15M SC APC FC PC Patchcord
-
10G Multimode 50/125um 2.0mm 3Mts FC PC Om3 Fiber Optic Patchcord
Product Details
| Place of Origin | Jiangsu, China | Brand Name | tianxingtech | |
| Model Number | 3m patchcord FC |
Product Description

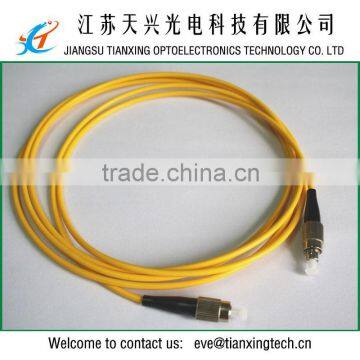

China factory price SM 9/125um 3.0mm PVC jacket 3M simplex patchcord FC
1. Features:
---Price Competitive
---Low Insertion Loss & PDL
---Factory-terminated and Tested
2. Applications:
---Telecom Net
---Local Ring Net
---Optical Fiber Sensor
---Optical Fiber Test Equipment
---Optical Fiber Communication System
---FTTH,LAN,PON & Optical CATV.
3. Technical specification:
| singlemode fiber optic patch cord | |||
| fiber type | OS1(9/125) | ||
| Operating Wavelength | 1310 | ||
| Jacket material | PVC/LSZH | ||
| Diameter of fiber | Diameter of fiber | ||
Contector | SC ; LC or customized | ||
polishing method | PC | UPC | APC |
| Insertion loss (IL) | ≤0.2dB | ≤0.2 | ≤0.3 |
| Return loss (RL) | ≥45dB | ≥50dB | ≥60dB |
| Repetitiveness | ≤0.1dB | ||
| Exchangeability | ≤0.2 | ||
| Durability | >1000 times | ||
| Operating Temperature(ºC) | -40~85 | ||
| Storage Temperature(ºC) | -40~85 | ||
| length | customized | ||
| Multimode fiber optic patch cord | |||
| fiber type | OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm-150; 50/125μm-300) | ||
| Operating Wavelength | 850 nm | ||
| Jacket material | PVC/LSZH | ||
| Diameter of fiber | Diameter of fiber | ||
Contector | SC ; LC or customized | ||
polishing method | PC | UPC | APC |
| Insertion loss (IL) | ≤0.2dB | ≤0.2 | ≤0.3 |
| Return loss (RL) | ≥45dB | ≥50dB | ≥60dB |
| Repetitiveness | ≤0.1dB | ||
| Exchangeability | ≤0.2 | ||
| Durability | >1000 times | ||
| Operating Temperature(ºC) | -40~85 | ||
| Storage Temperature(ºC) | -40~85 | ||
| length | customized | ||
4. Product show
5. Workshop
6. packing & shipment
7. Why choose us:
Tianxingtech was founded in 2010, but we have a experienced team in this field which speciallized in optical products, especially for PLC splitters and fiber optic patch cords. We promise to provide the best service, qualified products and competitive price for you.
8. Contact us
Sales: Eve Yao
Skype: trade. eve
web:
Tel: 86 511 83565358
Fax: 86 511 83565357
we sincerely hope to expand the cooperation with all the customers both at home and overseas,Each member of our term is dedicated to excellence and encouraged to be creative and to take the initiative.above all we strive to service your requirements in such a way that you,our partner will feel nice about doing business with us, we are looking forward to geting any requirement from you.
