Home > Products > Porcelain Insulator > Wenzhou Yika BS High Voltage Porcelain Insulators Pin Type PW-15-Y

Wenzhou Yika BS High Voltage Porcelain Insulators Pin Type PW-15-Y

FOB Price

US$ 1 - 20 / Piece

100 Pieces(Min. Order)

Port NINGBO SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YIKA
Model Number	PW-15-Y	Type	Other, Insulator, High Voltage Porcelain Insulators
Material	Porcelain	Application	High Voltage
Rated Voltage	15KV	Tensile Strength	11KN

Packaging Details

CARTON / WOODEN BOX

Product Description

Specifications

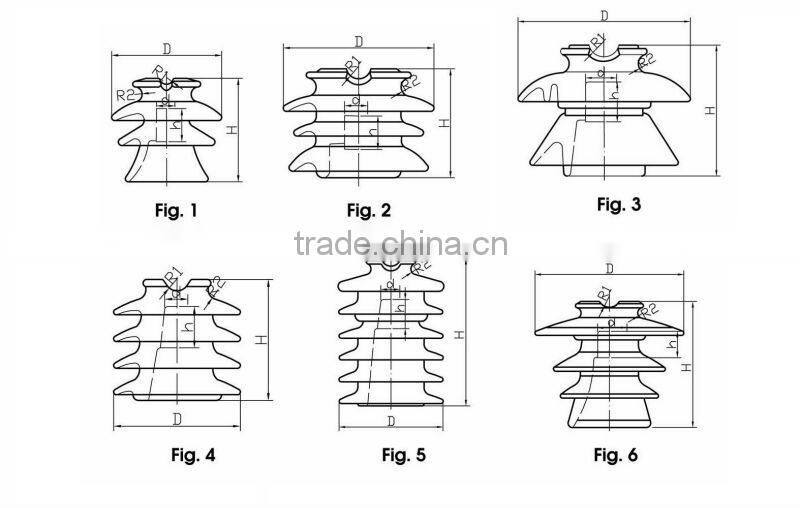

The High Voltage Porcelain Insulators PW-15-Y Main Dimensions and Characteristics:

Fig.No.			1	1	2	3	6	3	4	5	5
BS class			P-11-Y	P-15-Y	P-22-Y	P-33-Y	P-35-Y	P-44-Y	PW-15-Y	PW-22-Y	PW-33-Y
Creepage distance, mm			240	298	432	630	720	864	432	673	851
Dry arcing distance, mm			102	133	200	360	399	483	197	267	419
Main dimension, mm	H		133	137	165	244	270	318	185	255	320
	h		48	48	52.6	52.6	52.6	52.6	52.6	52.6	52.6
	D		140	152	229	280	270	343	170	205	240
	d		18.3	18.3	27.8	27.8	27.8	27.8	27.8	27.8	27.8
	R1		13	13	19	19	14	19	16	16	16
	R2		9.5	11	14.3	13	14	14.3	16	16	16
Cantileveer Strength, KN			11	11	11	13	13	13	11	11	13
Min flashover voltage	Power frequency	Dry, KV	75	80	100	135	140	155	100	125	140
	Power frequency	Wet, KV	50	55	60	95	100	110	65	95	110
	Critical Impulse	Pos, KV	115	130	160	180	215	240	150	190	210
	Critical Impulse	Neg, KV	150	175	205	290	295	305	190	235	245
Withstand voltage	1 min. power frequency	Dry, KV	65	70	90	110	115	125	90	110	125
Withstand voltage	1 min. power frequency	Wet, KV	40	50	55	75	85	100	60	90	100
Withstand voltage Impulse, KV			90	110	150	170	190	200	140	180	200
RIV. Data	Test volt. To gound		15	15	22	30	35	44	22	30	44
RIV. Data	Max RIV at 1000HZ, UV		8000	8000	12000	16000	18000	25000	12000	16000	25000
Power frequency puncture voltage, KV			150	150	200	210	230	250	150	200	210
Approx weight, kg			1.8	2	5	11	12.5	14	4.7	9.1	12.5

Advantages

1. Professional Manufacturer
2. Standards: ANSI, IEC, BS, DIN
3. A wide range of low and high voltage electrical products:

Fuse Cutout	Lightning Arrester	Composite Insulator	Glass Insulator
Porcelain Insulator	Epoxy Insulator	Fuses	Disconnector Switch
Circuit Breaker	Ring Main Unit	Insulated Sheath	Terminals

4. Factory Direct Price

5. Enough ability to meet buyers fresh designed items.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI, FUZHOU (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

Warranty

OEM/ODM can be acceptable by us. We will open a mould as per your sample.

After-Sales Service

If you discovers defects in workmanship and /or material and so notifies us promptly in writing. we shall with all reasonable speed remedy such defects of non-conformance to the specifications at our expense by replacement at the option of you.

Company Profile

Wenzhou Yika Electric Co., Ltd.

Wenzhou Yika Electric Co.,Ltd. is a manufacturer of Fuse Cutout, Lightning Arrester, Insulator, Disconnector Switch, Circuit Breaker, Ring Main Unit etc. with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Electricity Distribution System and Substation and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
