Wenzhou Yika IEC 15KV Suspension Glass Insulator 120KN Disc Glass Insulator U120B
- 5000000 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Wenzhou Yika IEC 100KN Toughen Glass Insulators Manufacturer
-
Yika Green Glass Discs Insulator U160 Fog type Insulator 160KN
-
Wenzhou Yika IEC Toughened Glass Insulators U100BS
-
Wenzhou Yika IEC Glass insulators U120B- 120KN Disc Suspension Insulator for High Voltage
-
Wenzhou Yika IEC 120KN Suspension Type Glass Insulator U120B
-
Wenzhou Yika IEC Toughen Disc Glass Insulator 160KN U160
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YIKA | |
| Model Number | U120B | Type | Insulator | |
| Material | Other, glass | Application | High Voltage | |
| Rated Voltage | 130KV | Tensile Strength | 120KN |
Wooden box
Product Description

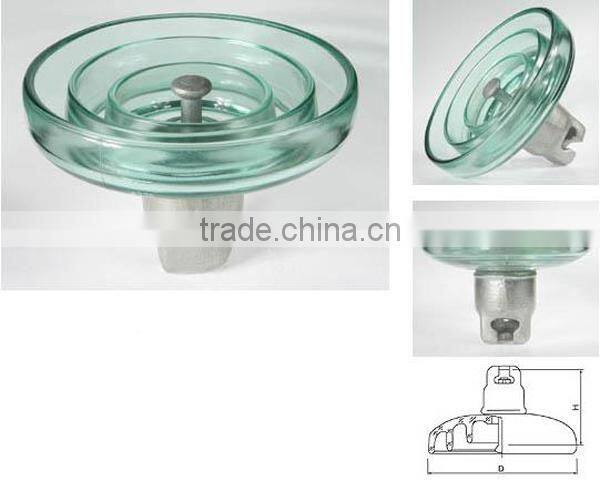

15KV Suspension Glass Insulator 120KN Disc Glass Insulator U120B
The Glass Insulator U120 Specifications:
| Universal Model | U120B/146 | U120B/127 | |
| other model | LXP-120 | LXP2-120 | |
| ( mm ) Dimaeter | 255 | 255 | |
| ( mm ) Height | 146 | 127 | |
| ( mm )Leakage distance | 320 | 320 | |
| ( mm )Coupling | 16 | 16 | |
| ( kN ) SML | 120 | 120 | |
| ( kN )Tension Load Test | 60 | 60 | |
| ( kV )Power frequency Withstand wet | 40 | 40 | |
| ( kV )Lightning Impulse Withstand | 100 | 100 | |
| ( P.U )Puncture Impulse Voltage | 2.8 | 2.8 | |
| ( kV )Puncture power frequency voltage | 130 | 130 | |
| ( μV )Radio Interference( 10kV,1MHz) | 50 | 50 | |
| ( kV )Visual Corona (foot / cap) | 18/22 | 18/22 | |
| Power Frequency Arc Test | 0.12s/20kA | 0.12s/20kA | |
| ( kg )Unit weight | 4 | 4 | |
