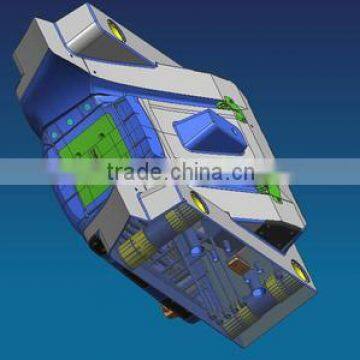

backrest chair plastic mould

About plastic chair mould:

plastic furniture mould is one of Eiffel's main category, which include chair mould, table mould, stool moulds, etc. Eiffel deliver monthly about 7 chair moulds.

Eiffel look into the following areas to make sure good quality chair mould:

parting line

parting line is very important to chair mould. it's crucial to avoid any sharp edge, which will be very dangerous when it comes to household furniture. we focus on several points in this regard.  1.  with our accumulated chair mould experiences and abundant chair mould database, we deisgn the most suitable parting line for each individual arm chair mould. 2. the thickness of the cavity and cores should be enough to stand the force and remain unchanged. 3. normally, we do 3 stages CNC milling. before the steel heat treatment, we do the first stage rough milling, and the second stage milling, we call it harf precision milling, during this stage, we normally leave 0.3 mm , then do steel stress releasing, the last stage is high precision CNC milling. during this stage, we have to operate cooling function on the milling area constantly, and the depth of each cutting should never exceed 0.08mm. because the steel is vulnerable to deforming while milling and the hardening, which will cause in-accurate fitting of cores and cavities.when this happened , there will be alot of hand work required. and it is unlikely get perfect parting line form hand work.

wall thickness

the wall thickness of plastic chair product should be as even as possible, uneven wall thickness will result in unbalanced plastic melt injection, and uneven cooling time in different parts, which will cause the slowing down of injection speed and prolonged cycle time. as well as the appearance of shrinkage marks.  so we have to consider the chair mould wall thickness seriously at the very beginning of arm chair and arm chair mould design . though sometimes, it is required that some parts to be thicker , so that the chair can be strong enough, then we will have to consider carefully where it should be. the most important thing about getting an even wall thickness is to to high precision and high speed CNC milling. it is unlikely to get even wall thickness by rough milling.

the weight and strenth

how to get a strong chair with less weight. we need to consider this at the beginning of deisgn, you can make the bottom area stronger by adding ribs, but how about the backrest, armrest and legs. to cope this problem, we need to calculate and analyze the force of each area, in order to get a stronger chair with less weight.

backrest venting

for some chairs, the backrest design is very complex, there are alot of joining lines during cavity filling, result in some air cann't vent out. to deal with this issue. we need to do mold-flow analysis sometimes, there will be alot of venting points needed in the backrest area.

to keep the chair mould finishing long lasting

to make sure the cavities and cores will not be corroded by plastic material during production.we use high chrome steel, and normally the hardness is above HRC 33. if the plastic material used is corrosive,  you will need your chair mould to be hard chrome-plated, otherwise , you will need to do the polishing from time to time.

About Eiffel

Eiffel mould and plastic Co.,LTD was founded in 1992, we specialize in plastic injection mould and plastic blowing mould .

with more than 20 years' experiences in plastic mould industry, Eiffel have aquired mature technology and resources in the designing, analysis , manufacturing of  plastic mould, as well as plastic parts manufacturing.

Eiffel 's experiences in platic moulds include   household moulds,  home appliances moulds,  auto part moulds,   blowing moulds,   pet appliances moulds  and   pipe fittings moulds, etc.

to achieve high efficiency and guarantee high quality mould. Eiffel adopted UG, Pro-E, power MILL 3 D model designing software. as well as CAD/CAM/CAM system.

with abundant experiences in plastic and plastic mould industry, Eiffel is capable of providing one-stop solution for  customers which including product design and analysis, mould design and analysis, mould manufacturing, mould testing and delivery as well as plastic parts production packaging and delivery.

every mould and plastic product  Eiffel make is highly customizable fullfilling the requirements of per customer.

please be free to contact us for your plastic or plastic mould projects. Eiffel will always provide the best solutions and quotations as we could,
