Good Performance And Best Price HAOMEI HZS35 Batching Plant For Sale
- Qingdao China
- T/T
You May Like
-
50m3/h HZS50 Batching Plant South Africa With CE Certificated
-
Well Qualified Concrete Batching Machine HAOMEI HZS50
-
Widely Used Concrete Batching Machine Dealer HZS60
-
Trustworthy Machinery HAOMEI HZS75 Conrete Mixture Plant
-
Trustworthy Quality HZS75 Concrete Mixing Station For Sale
-
Hot selling in srilanka HZS75 dry concrete batching plant
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | HM | |
| Model Number | HZS35 | Power(W) | 30kw | |
| Dimension(L*W*H) | 3.8m(for customers choice) | Weight | 11870kg | |
| Certification | ISO CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Detailed Good Performance And Best Price HAOMEI HZS35 Batching Plant For Sale Description

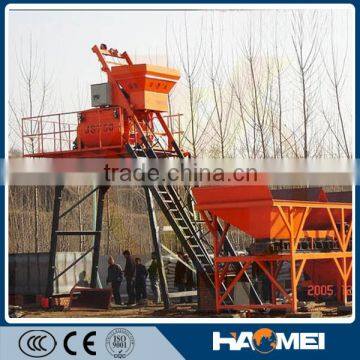

HZS35 concrete mixing plant is one of the small-sized plant series of HAOMEI company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.
Main features of Good Performance And Best Price HAOMEI HZS35 Batching Plant For Sale
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS750 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD1200 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.
Technical parameter of Good Performance And Best Price HAOMEI HZS35 Batching Plant For Sale
Main technical data | ||
Type | HZS35 | |
Productivity in theory | 35m³/h | |
Mixer | JS750 | |
Mixer power | 30KW | |
Maximum aggregate diameter | 80mm | |
Discharging volume of mixer | 750L | |
Aggregate feeding method | Skip hopper | |
Batcher | PLD1200 | |
Aggregate weighing | 2250kg ±2% | |
Cement weighing | 450kg ±1% | |
Water(flow-metering) | 300kg ±1% | |
Overall dimension(during operating) (LXWXH) | 8685mmX5560mmX6550mm(discharging height is 2.7m) | |
10115mmX5560mmX8405mm(discharging height is 3.8m) | ||
Total power | 60kw | |
Total weight | 9350kg (2.7m discharging height) | |
11870kg(3.8m discharging height) | ||
Control | Semi-automatic batching, manual operated | |
Cement silo(optional) | Required on clients' demand, 50T,100T available | |
Cement screw(optional) | Each cement silo equipped with one φ219 screw | |
Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
Model
| Output volume
| Input volume
| Production capacity
| Aggregate max.diameter
| Mixing motor power
| Overall dimensions (LxWxH)
|
JS750
| 750L
| 1200L
| 36-45m3/h
| 60-80mm
| 30kw
| 4430×3615×3385mm
|
Gallery of Good Performance And Best Price HAOMEI HZS35 Batching Plant For Sale
