Hot Selling HZS50 Mini Cement Plant
- Qingdao China
- T/T
You May Like
-
Modern Design HZS50 Concrete Batching Machine
-
In Turkey Random Color HZS60 Concrete Batch Plant For Sale
-
Widely Used HZS150 Fixed Batching and Mixing Plant Supply
-
2015 Widely Used HZS60 Concrete Batching&Twin-Shaft Mixing Plant
-
Easy to Operate HZS60 Concrete Batching&Twin-Shaft Mixing Plant
-
HZS25 PLD1600 concrete batching plant
Product Details
Condition | New | Power Type | Electric | |
Place of Origin | Henan, China | Brand Name | HAOMEI | |
Model Number | HZS50 | Power(W) | 110kw | |
Dimension(L*W*H) | 33.8mX14.8mX10.8m | Weight | 46t | |
Certification | CE,ISO | Warranty | 1 years | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

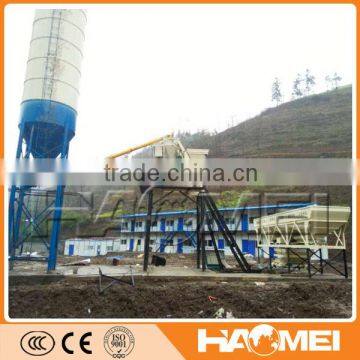

Hot Selling HZS50 Mini Cement Plant
HZS50 Mini Cement Plant Promotion adopts JS series twin-shaft compulsory mixer, producing homogeneous concrete with good quality in short time. The easily-damaged parts could last for long time, convenient to operate and maintain. It applied the latest design for electronic weighing, computer control and digital display. The electronic weighing system has a buffer device and automatic volume compensation with high accuracy. The sand and gravel feeding system applied inclined belt with great width, the maintenance walkways is installed. It is the ideal choice for producing high-quality concrete.
Gallery
Main features Of HZS50 Mini Cement Plant
• Adopt combined structure and modular unit, convenient to install and remove;
• Mixing and aggregate lifting system adopt JS1000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;
• Aggregate batching system adopts PLD1600 concrete batcher which offers efficient and accurate measurement;
• Powder lot is electronic measured, highly accurate dosing;
•Water is flow-metering, simple and practical, highly accurate dosing.
Technical parameter Of HZS50 Mini Cement Plant
Main technical data | ||
Type | HZS50 | |
Productivity in theory | 50m³/h | |
Mixer | JS1000 | |
Maximum aggregate diameter | 80mm | |
Aggregate bins volume | 3X13m³ | |
Aggregate feeding method | Conveying belt | |
Batcher | PLD1600 | |
Aggregate weighing | 3000kg ±2% | |
Cement weighing | 600kg ±1% | |
Fly-ash weighing | 400kg ±1% | |
Water weighing | 400kg ±1% | |
Additive weighing | 50kg ±1% | |
Overall dimension(during operating) (LXWXH) | 33.8mX14.8mX10.8m | |
Total power | 110kw | |
Total weight | 46Ton | |
Discharging height | 3.8m | |
Control | Fully automatic | |
Cement silo(optional) | Required on clients' demand, 50T,100T available | |
Cement screw( optional) | Each cement silo equipped with one φ219 screw |
Please note:
1. The total power doesn't include the power of cement screw;
2. Non-standard design could be made according to clients' demand;
3. The above-mentioned data could be changed due to the designing improvement, please check the updated configuration when purchasing.
1. Rapid response to any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality
4. Factory visit is welcomed and free booking hotel and airport pick up service.
5. Engineers will go to clients’ site for guiding the installation and test-running;
6. Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you quickly.
7. 15 months super long time guarantee period.
8. Customer-tailor is received
Haomei Machinery Equipment Co., Ltd. is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality mobile concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS"to cooperate with clients from all over the world.Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches. We have over 1000 technical workers and 80 engineers equipped with advanced producing and inspecting machines with strict management.
