Home > Products > Concrete Pump Truck > 37m,39m Concrete Pumping Trucks

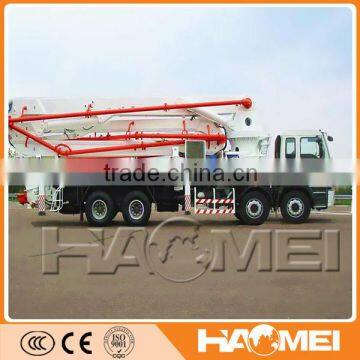

37m,39m Concrete Pumping Trucks
- Qingdao China
- T/T
You May Like
-
Small Portable Concrete Pump With Good quality
-
Hot Sale Manual Concrete Pump From HAOMEI
-
Widely Used Concrete Pump For Sale India From HAOMEI
-
Mini Concrete Mixer Pump With High Quality From HAOMEI
-
Truck Mounted Concrete Boom Pump With Price For Sale
-
Schwing Concrete Pump 32m With Super Quality For Sale
Product Details
Condition | New | Power Type | Diesel | |
Place of Origin | Henan, China | Brand Name | HAOMEI | |
Model Number | HDT5281THB-37/4,HDT5291THB-39/4 | Power(W) | 265kw | |
Weight | 28000kg | Dimension(L*W*H) | 12000*2490*3800mm | |
Certification | ISO | Warranty | 12 months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
37m,39m Concrete Pumping Trucks
1.Energy saving
2.Low oil temperature
3.Good equipment performance
Products characteristics of Concrete Pumping Trucks
1.The power system is consisted by technical diesel engine or electrical engine.
2.It can drive the pumping system directely which samplized the linkage structure and improved the efficiency.
3.Strong power system reduced the rate of occuring faults;
4.The elements of electrical controlling system is adopted Japan and Gemany's original parts.The excellent assembly
quality fully guaranteed the function of electrical controllingsystem.
5.The special design of hopper and vane reduces the space of mixing blind angle thus makes the machine suitable for many kinds of concrete.;
Parameters of 37m,39m Concrete Pumping Trucks
name | unit | HDT5281THB-37/4 | HDT5291THB-37/4 | HDT5291THB-39/4 | |
| output in theory | m3/h | 125 | 125 | 125 |
index of the pump carry capacity | Mpa.m3/h | 586 | 586 | 586 | |
theoretic pumping pressure | Mpa | 8.5 | 8.5 | 8.5 | |
bucket volume | L | 700 | 700 | 700 | |
height of top surface of bucket | mm | 1370 | 1370 | 1370 | |
model of dirstribution valve |
| S Valve | S Valve | S Valve | |
max. operation radius | m | 32.6 | 32.6 | 34.7 | |
max. operation height | m | 36.6 | 36.6 | 38.7 | |
max. operation depth | m | 25.5 | 25.5 | 27 | |
open height of boom | mm | 8450 | 8450 | 8830 | |
distance between front landing legs | mm | 7058 | 7058 | 6800 | |
distance between rear landing legs | mm | 6848 | 6848 | 7000 | |
distance between front & rear landing legs | mm | 6790 | 6790 | 7432 | |
diameter of delivery pipe | mm | 125 | 125 | 125 | |
length of hose pipe | m | 4 | 4 | 4 | |
rotary range of boom |
| 370° | 365° | 365° | |
quantity of boom |
| 4 | 4 | 4 | |
rotary angle of each boom | ° | 92/180/180/270 | 92/180/180/270 | 91/180/180/180/270 | |
wire line control distance | m | 33 | 33 | 33 | |
romote control distance | m | 200 | 200 | 200 | |
| max. speed | km/h | 85 | 90 | 90 |
min. turn radius | mm | 8800 | 8800 | 8800 | |
brake distance | m | 7 | 7 | 7 | |
approach angle | ° | 16 | 16 | 16 | |
departure angle | ° | 11 | 11 | 11 | |
chassis model |
| ISUZU CYZ51Q | HOWO ZZ5307N4647C | HOWO ZZ5307N4647C | |
, wheel base between the first & the second axle | mm | 4595 | 4600 | 4600 | |
,wheel base between the second & the third axle | mm | 1310 | 1350 | 1350 | |
front tread | mm | 2065 | 2022 | 2022 | |
rear tread | mm | 1850 | 1830 | 1830 | |
max. engine output power | kw | 265(1800r/min) | 247(2200r/min) | 247(2200r/min) | |
max. engine output torque | n.m | 1422(1100r/min) | 1350(1100-1600r/min) | 1350(1100-1600r/min) | |
max, gradient ability | % | 37 | 35 | 35 | |
fuel consumption | L/100km | 36.6 | 34 | 34 | |
(××)out dimension(L×W×H) | mm | 12000×2490×3800 | 12000×2490×3850 | 12500×2490×3950 | |
total weight | kg | 28000 | 29000 | 29500 |
1. Rapid response to any inquiry.
2. Competitive price.
3. Professional inspection department to guarantee quality
4. Factory visit is welcomed and free booking hotel and airport pick up service.
5. Engineers will go to clients’ site for guiding the installation and test-running;
6. Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you quickly.
7. 15 months super long time guarantee period.
8. Customer-tailor is received
Haomei Machinery Equipment Co., Ltd. is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality mobile concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS"to cooperate with clients from all over the world.Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches. We have over 1000 technical workers and 80 engineers equipped with advanced producing and inspecting machines with strict management.
