Home > Products > ~40kva Generators > magnetic united dynamo power turbine generator power plant with stamford brushless alternator made in china
magnetic united dynamo power turbine generator power plant with stamford brushless alternator made in china
- QINGDAO
- T/T Credit Card
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | HUAQUAN | |
Model Number | HQ30GF | Output Type | AC Single Phase | |
Speed | 1500/1800RMP | Frequency | 50/60HZ | |
Rated Power | 30KW | Rated Voltage | 400/230V | |
Rated Current | 54A |
Product Description

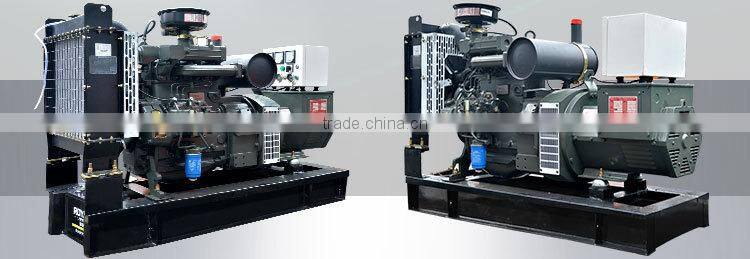

magnetic united dynamo power turbine generator power plant with stamford brushless alternator made in china
Engine produced by Weichai Power company,which cooperation with Germany Deutz Company
Deutz engine continous work time more than 72 hours
Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request
Deutz Diesel Generator Set Features:
1. Diesel generator adopt the Weifang original Weichai Deutz(Weichai), as the main power support.
Engine charactors: Injection, Inline.Four stroke,water-cooled.
2. Engine produced by Weichai Power company,which cooperation with Germany Deutz Company.
3. Weichai Deutz engine caus its hig performance,strong power output,continous working time and stable work life and global service, sell to all over the world.Deutz engine continous work time more than 72 hours. Because its good quality and good service, widely known by all over the world.
4. Alternator, adopt option brand like China brush alternator, Stamford, Faraday, Marathon,Leroy-somer, Lanzhou,etc so famous brands alternators.
5.This series diesel generator is the special type we promotion for abroad market, and make the highly quality level than other configurations.
6.Diesel generator including abersorber system,and protect the generator during its working time.
7.All generator surface after acidification , and suitalbe wet condtion working .
8.Standard control panel design basic the operation,and easy show all meters you care during generator working time.
9.Structure: adopt the high strong steel make the under frame, and easy moved and stable long life.
10.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
DESCRIPTION

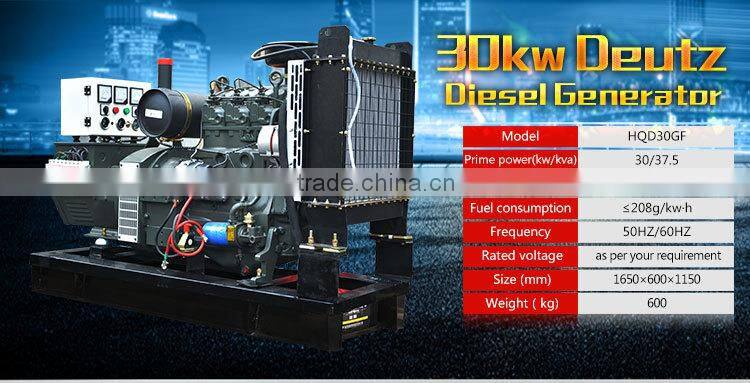

30KW DIESEL GENERATOR DETAILS | |||
Model | HQD30GF | Start Method | DC 24 |
Generator Prime Power(KW/KVA) | 30/37.5 | Output Current(A) | 54 |
Standby Power(KW/KVA) | 33/41.25 | Voltage(V) | 400/230 |
Power Factor | 0.8 | Phase | Three phase, Four Wires |
Frequency(Hz) | 50 | Weight(kg) | 750 |
Size(mm) | L | W | G |
1600 | 600 | 1100 | |
Diesel Engine Data | |||
Manufacturer | Deutz | Model | D226B-3D |
Rated Speed(Rpm) | 1500 | Diesel Engine Max Power(KW/H) | 33 |
Cylinder No. | 3 | Arrangement Type | In-line |
Bore×Stroke(mm) | 105×120 | Displacement(L) | 3 |
Intake Method | Natural | Compression ratio | 15.5:01 |
Fuel | Diesel Fuel | Full Load Consumption(g/kw.h) | ≤209 |
Oil Capacity(L) | 11 | Start Method | Electrical |
Engine Cooled Method | Radiator Max 50℃,fans are driven by belt with safety guard. | ||
Alternator Data | |||
Manufacturer | China Stanford | Model | XN30 |
Rated Power(KW/KVA) | 30/37.5 | Excitation Type | Brushless |
Insulation Class | H | Protection Grade | IP22 |
Unload Voltage Adjustment | ≥±5% | Stable Voltage Adjustment | ±1% |
Efficiency (%) | 94.8 | Voltage Control Method | AVR |
Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
wooden package delivered by the sea
advantages
1.Huaquan Power offer complete lines generator after sale service. We offer 1 year or 1000 hours runing time for warranty.
2.We offer technical support for free all the time.
3.We offer the spare parts for our generators all the time,any time you can contact us for spare parts.
