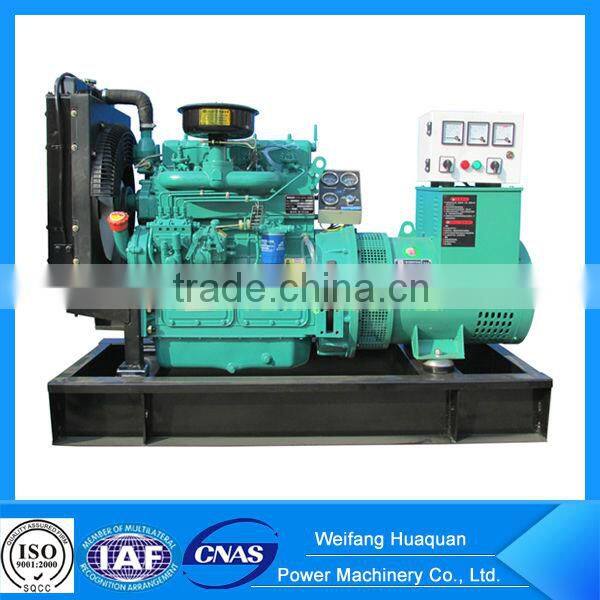

Diesel Engine Powered 30kva Generator Set
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Weifang | |
| Model Number | HQB30GF | Output Type | AC Three Phase | |
| Speed | 1500/1800 | Frequency | 50/60HZ | |
| Rated Power | 30kva | Rated Voltage | 110/220v, 230/380v | |
| Rated Current | 43A |
Product Description
Specifications
1.diesel engine powered 30kva generator set2.Brushless or brush alternator
3.China weichai engine
4.world-wide service
More details about diesel engine powered 30kva generator set
| Generators Diesel Standard Configurations | |
| 1 | Standard High-level quality engine Weifang series |
| 2 | Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H. |
| 3 | Maintenance-free start battery |

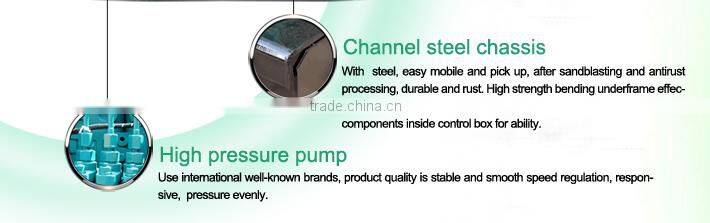

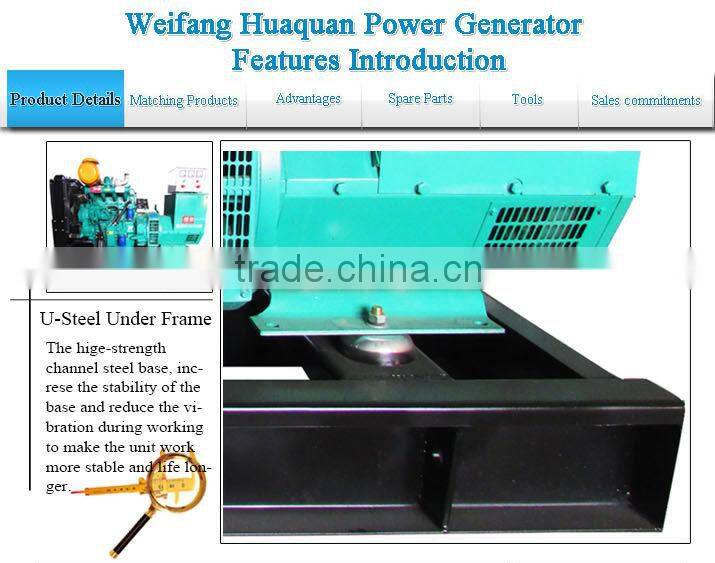

| 4 | Acidification under frame, High-level strong |
| 5 | Electric start, use key start |

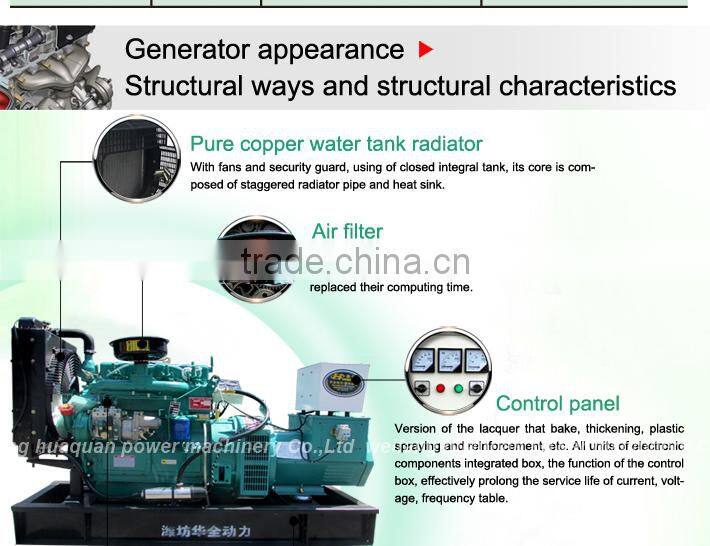

| 6 | Standard control panel Spray-print or LCD show panel |
| 7 | Daily fuel tank as optional |

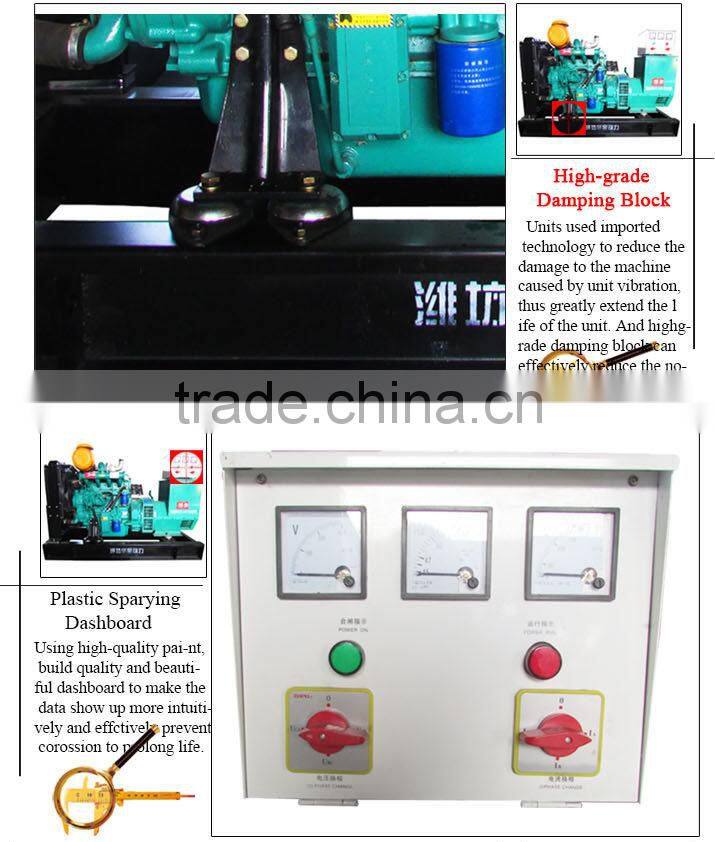

| 8 | High-level shock absorber system |
| 9 | Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler |
| 10 | 40°C radiator as standard |
| 11 | Exhaust silencer |
| 12 | Charger motor for battery. |
| 13 | Standard export box |

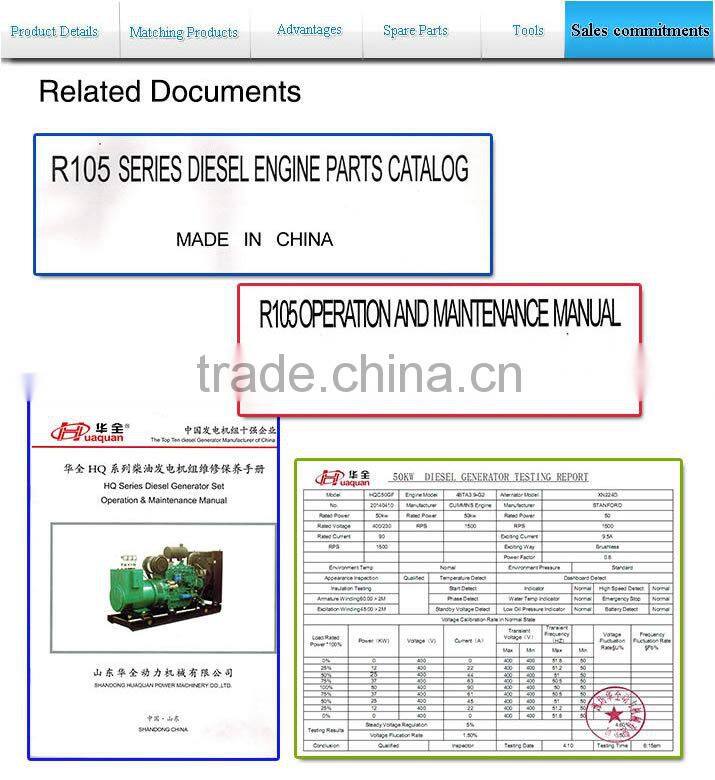

| 14 | Manuals |
| 15 | Tools box |
Generator Ratings
| Standy Output(KVA) | Prime Out(KVA) | P.F | Phase | Wires | Size(mm) | Weight (KG) |
| 33 | 30 | 0.8 | 1/3 | 2 | 1700*600*1100 | 600 |
Diesel Engine Data
| Engine Model | K4100D |
| Cylinder No. | 4 |
| Intake Method | Natrual |
| Engine Type | Inline,Direct injection,Four-stroke,water cooling |
| Displacement(L) | 3.61 |
| Bore*Stroke(mm) | 100*115 |
| Engine Max outout(kva) | 30 |
| Fuel consumption(g/kw.h) | ≤208 |
| Start Method | DC 12V |
| Manufacture | Ricardo/Weichai |
Alternator Data
| Alternator Model | Qiji/stanford/other brand |
| Alterantor Capacity | 30kva |
| Voltage(V) | 110/220 230/380 |
| Speed | 1500/1800 |
| Excitation Method | Brush/Brushless |
| Power Factor | 0.8 |
| Frequency (HZ) | 50/60 |
Generator Set Data
Voltage Regulation:≥±3% Voltage Regulation, Stead State:≤±1% Sudden Voltage Warp (100% Sudden Reduce):≤+15% Sudden Voltage Warp (sudden Increase):≤-10% Voltage Stable Time (100% sudden Reduce):≤1s Voltage Stable Time (Sudden Increase):≤1s Frequency Reduce:≤5% adjustable:≤1.5% Frequency Regulation, Stead State:≤0.8% Frequency waving:≤+10% Sudden Frequency Warp (100% Sudden Reduce):≤0.8 % Sudden Frequency Warp (Sudden Increase):≤-10% Frequency Recovery Time (100% sudden Reduce):≤1s Frequency Recovery Time (Sudden Increase):≤1s
|
Huaquan provides a full line of brand new and high quality products.Each and every unit is strictly factory tested Warranty is according to our standard conditions:12 months or 1000 running hour’s ,subject to the earlier one .Service and parts are available from our factory.
We specialized in producing diesel generators. We have exported to many countries and widely used in domestic.
1. Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
2. Domestic: Send to most of the cities in china, and get high praise from our clients.
1.What's your power range of Generators?
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
