Home > Products > Clamp > JBTL clamp

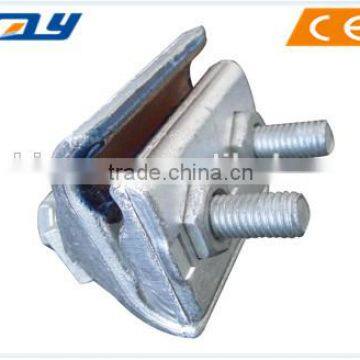

JBTL clamp

FOB Price

US$ 0.8 - 1 / Piece

2 Pieces(Min. Order)

Port NINGBO shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	kinway
Model Number	JBTL

Product Description

Specifications

JBTLcopper-Aluminium parallel groove clamp
1. Nice quality with competitive price
2. More than 10 years' experience

Application

JBL,JBT,JB-TL Specific forms parallel groove clamp is suitable for unendure force splicing and branch on the aerial wire ,being used with insulation cover . It’s action is insulation protection.

Structure feature

1,Select oxidze-resistance aluminium alloy.

2,Teeth-shape structure ,touch with lowly resistance, reliable splicing.

3,All parts connected with each other , it can’t tlose parts during installation

4,An are embrace the most part ,conductor can’t change

Insulation cover performance feature

1,Withstand voltage: ≥18kV keep voltage one minute not break down

2,Insulation resistance: >1.0×10¹⁴Ω

3,Environments temperature: -30°C~90°C

4,Weather proof performance: have good performan after 1008 hours artifical l climate aging test.

Specification

Name	Type	Conductor(mm²)
Specific form aluminiumparallelgroove clamp	JBL-6-35	6-35
	JBL-16-70	16-70
	JBL-16-120A	16-120
	JBL-16-120B	16-120
	JBL-50-240A	50-240
	JBL-50-240B	50-240
	JBL-120-400A	120-400
	JBL-120-400B	120-400

Name	Type	Conductor(mm²)
Specific form copper paralled groove clamp	JBT-16-120	16~120
Specific form copper paralled groove clamp	JBT-50-240	50~240
Specific form copper-aluminium paralled groove clamp	JB-TL-16-120	16~120
Specific form copper-aluminium paralled groove clamp	JB-TL-50-240	50~240

Specification:

Type	Applicable aluminium wire	Applicable copper wire	Dimensions(mm)
Type	Applicable aluminium wire	Applicable copper wire	L1	L	M
JB-TL-10	35-50	16-25	40	70	12
JB-TL-11	35-50	35-50	40	70	12
JB-TL-21	70-95	35-50	50	100	12
JB-TL-22	70-95	70-95	50	100	12
JB-TL-31	120-150	35-50	63	106	12
JB-TL-32	120-150	70-95	63	106	12
JB-TL-33	120-150	120-150	63	106	12
TB-TL-41	185-240	35-50	65	110	12
JB-TL-42	185-240	70-95	65	110	12
JB-TL-43	185-240	120-150	65	110	12
JB-TL-44	185-240	185-240	65	110	12

Introduction of our company

Wenzhou Kinway Technology Co.,LTD,a high-tech enterprise specialized in power line fitting for more than 10 years,is located in Chinese famous "Captial Of Electric"--LIUSHI,where is about 40minutes far from Wenzhou airport and 20minutes far from railwaystation.The factory specialized in power fitting,example for Connector( Parallel groove connectors AL/AL,AL/CU,CU/CU, Aluminium PG connectors extrud type,PG Clamps,Bimetallic PG clamp),Lugs(Bimetallic lugs,,bimetal compression cable lugs,Aluminium lugs),we also can make special offer according to customer’s drawing.

The factory owns a land area of 2000m2, more than 150 workers,also have a professional team for technic,sales and after-sale service.We export our goods to Canada,Vintan,Malaysia,Dubai ect,more than 20countries and area.Welcome friends from all over the world to visit and cooperate with us.Do us a favor,we'll back you a world!

Equipment

For more information,please contact us!

Our website:WWW.KINWAY.CC
