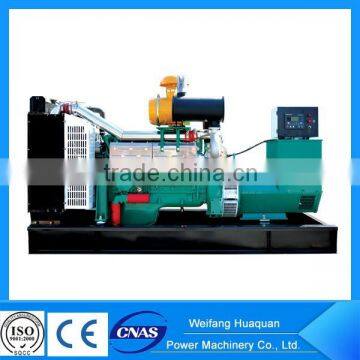

open type 180kw generator price
US$ 7,000 - 8,500
/ Set
1 Set(Min. Order)
- Qingdao
- T/T D/P D/A
You May Like
-
best wholesale 180kva diesel generator
-
190kw diesel generator powered by Weichai Ricardo engine
-
weifang generator hot sale 190kva diesel generating
-
China diesel generator manufacturer 200kva diesel generator set
-
CE level standby power 200kva diesel generator with stanford alternator
-
380v quality diesel 200kva generator set
Product Details
| Place of Origin | Shandong, China | Brand Name | Weifang | |
| Model Number | HQ180GF | Output Type | AC Three Phase | |
| Speed | 1500/1800 | Frequency | 50/60HZ | |
| Rated Power | 180kw | Rated Voltage | 110/220v, 230/380v | |
| Rated Current | 324A |
Product Description
Specifications
1>water cooled 180kw generator2>high quality engine
3>Brushless or brush alternator
4>perfect after-sale service
More details about water cooled 180kw generator
160kw diesel generator parameters
| Standy Output(Kw) | Prime Output(Kw) | P.F | Phase | Wires | Size(mm) | Weight (KG) |
| 198 | 180 | 0.8 | 1/3 | 2 | 2450*800*1600 | 2300 |
| Engine Model | 6113AZLD |
| Cylinder No. | 6 |
| Intake Method | Turbocharged |
| Engine Type | Inline,Direct injection,six-stroke,water cooling |
| Bore*Stroke(mm) | 105*125 |
| Engine Max outout(kw) | 200 |
| Fuel consumption(g/kw.h) | ≤208 |
| Start Method | DC 24V |
| Manufacture | Ricardo/Weichai |
| Alternator Model | Qiji/stanford/other brand |
| Alterantor Capacity | 180 |
| Voltage(V) | 110/220 230/380 |
| Speed | 1500/1800 |
| Excitation Method | Brush/Brushless |
| Power Factor | 0.8 |
| Frequency (HZ) | 50/60 |
Voltage Regulation:≥±3% Voltage Regulation, Stead State:≤±1% Sudden Voltage Warp (100% Sudden Reduce):≤+15% Sudden Voltage Warp (sudden Increase):≤-10% Voltage Stable Time (100% sudden Reduce):≤1s Voltage Stable Time (Sudden Increase):≤1s Frequency Reduce:≤5% adjustable:≤1.5% Frequency Regulation, Stead State:≤0.8% Frequency waving:≤+10% Sudden Frequency Warp (100% Sudden Reduce):≤0.8 % Sudden Frequency Warp (Sudden Increase):≤-10% Frequency Recovery Time (100% sudden Reduce):≤1s Frequency Recovery Time (Sudden Increase):≤1s
|
