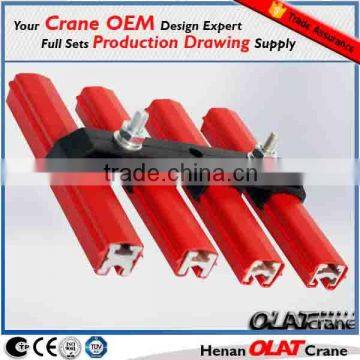

3D Design Drawing Customizeable OSLK Series Crane Safety Aluminium Glazing Bars

OSLK Series Crane Safety Sliding Lines overview

OLAT Cranes OSLK Series Crane Safety Sliding Lines are power-supply solutions for mobile consumers such as cranes  and monorails.They offer a high level of safety and versatility for easy installation and conversion.Further strengths include:

»Light,compact desigh

»Space-saving power supply line

»High electrical safety

»Reliable power supply

»Convenient maintenance

»Variety of suspension possibility

—————————————————————————————

Detailed Introduction

»Great versatility

  •Variety of suspension arrangements, combined suspension fitting

  •Light, compact design

  •Universal suspension can be fitted on profile sections and C rails

  •Snap-on connection – e.g. for perforated sheet or drilled girder web

  •Single suspension for variable center distance

  •Suspension distances up to 9.8 ft.

  •Straight end sections can be cut by hand – no need for additional preparation of joints

    (cut-outs, drilling, etc.)

  •Isolating sections, powerfeeds and transfer sections can be quickly fitted and changed

    on-site

»High safety and reliability

  •Safety busbar line with IP 23 protection against accidental contact for horizontal

    installation

  •Reliable power transmission by current collector pantographs

  •High electrical safety due to large spacing between conductors and variable center

    distance for single suspension

  •Expansion joints between all conductor sections absorb differences in length caused by

    temperature variation

  •Corrosion resistance

»Convenient assembly and maintenance

  •Simple installation thanks to prepared assemblies

  •Bolted suspension, compact dimensions

  •Easily maintained  as conductors and current collectors are visible

OLAT Cranes OSLK Series Crane Safety Sliding Lines is an ergonomic solution for mobile electric equipment including cranes, trolleys, traveling electric tools and other appliances. OSLK Series Crane Safety Sliding Lines is effective for a wide range of applications due to its high thermal and mechanical strength provided by its aluminum enclosure.

»High electrical safety with separate insulators

»Split enclosure provides good access to the conductors

»Simple installation thanks to prepared assemblies

»Simple installation of electrical signal and pulse generators

»Corrosion resistance

»Safety conductor line offers protection against accidental contact

——————————————————————————————————————

OSLK Series Crane Safety Sliding Lines crane power feeding line or conductor bar is a special conductor system that provides electricity to mobile and rotary equipment. Typically comprised of electrical conductor and collector, this conductor system finds wide applications in crane industry. Two most commonly used forms of conductor system are: enclosed and parallel.

»Installation and maintenance is simple and straightforward.

»Safe, reliable even in the harshest climates such as heavy rain, snow, for frost.

»Great electrical conductivity while dissipating heat quickly.

»Low impedance, minimum line loss.

»Graphite brush with high electrical conductivity and wear resistance

»Long use life

OLAT Crane Power Supply - OSLK Series Single Conductor Power Supply

OSLK Series single conductors are power-supply solutions for mobile consumers such as cranes and monorails. They offer a high level of safety and versatility for easy installation and conversion.

»Excellent versatility

  •Applicable in many different applications due to high thermal and mechanical strength

    provided by its aluminium enclosure

  •Light and compact design

»High safety and reliability

  •Safety conductor line for protection against accidental contact

  •High electrical safety with separate insulators

  •Corrosion resistance

»Convenient assembly and maintenance

  •Split enclosure provide access to the conductors

  •Simple installation due to standardized assemblies

—————————————————————————————

Installation of OSLK Series Crane Safety Sliding Lines

---------------------Various of installation methods to meet every individual requirements,Guarantee the safety of using.

OSLK Series Crane Safety sliding contact line is made up of electrolytic copper ,aluminum,after pressing a H shaped materials ,through special process to deal with the strength appearance ,in order to ensure the service life of slide wire stainless steel embedded in a H shaped aluminum ,as sliding contact with the collector conductive wear-resisting surface.

01.OLAT CARNE OSLK SERIES SINGLE-STAGE COMBINED SLIDING LINES TECHNICAL PARAMETERS

02.OLAT CRANE OSLK SERIES SINGLE-STAGE COMBINED SLIDING LINES TECHNICAL STANDARDS

OLAT Crane OSLK Series Single-Stage Combined Sliding Lines Packaging & Shipping

Variety of packaging methods,Sliding Lines are packaged in a wooden box after being wrapped by plastic film.To guarantee the safety of Sliding Lines.Improving the using efficiency of client.

OLAT CRANE Factory Real situation At a Glance

—————————————————————————————

 ————————————————————————————
