air micro pressure sensor
- Shenzhen or Guangzhou
You May Like
Product Details
| Place of Origin | China | Brand Name | NineGood | |
| Model Number | 1501 |
Product Description
Specifications
air micro pressure sensorRange: -0.1~0~120MPa(Optional)
Output Signal: 4~20mA,0~5Vdc,0~10Vdc(Optional)
stable performance
air micro pressure sensor
Designed with import elastic component and advanced technology. High sensitive and outstanding shock &vibrating folerance ability. 316 stainless steel and whole sealing, low profile, compactness. They have good ability of damp-proofing and good medium compatibility.
Measuring medium :low corrosive medium in many industrial process .
Applying to pressure measuring and controlling of industrial facility, Irrigation,
Chemical industry, Medical, Electric power, air condition.
Diamond press machine, metallurgy, water supply to building and so on.
Technical Parameter:
Capacity Range: -0.1~0~120MPa(Optional)
Comprehensive Precision:0.1%FS, 0.25%FS,0.5%FS(Optional)
Output Signal: 4~20mA,0~5Vdc,0~10Vdc(Optional)
Excitation Voltage:: 24Vdc(9~36Vdc)
Medium temperature: -20~105°C
Ambient temperature: -20~85°C
Electric Current output: ≤800Ω,Voltage output :≥50KΩ
Insulation Resistance:≥ 2000MΩ (100VDC)
Response time:<1ms
Protection class: IP65
Stability:0.1%FS/year
Effection of Vibration: On 20HZ-1KHZ of mechanical shake, output ≤ 0.1%F.S
Electric Connection: Seal terminal type
Thread Connection:M12×1.25
Certificate:

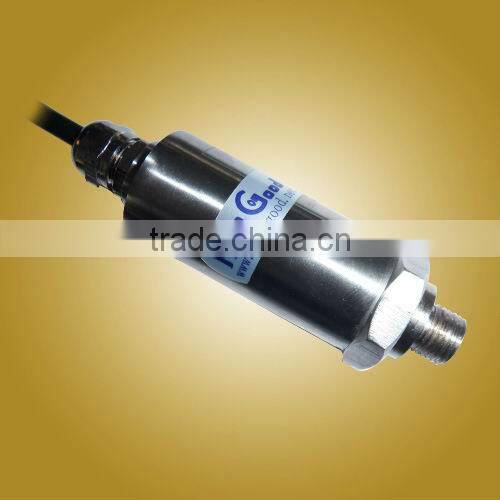

Production Photo:

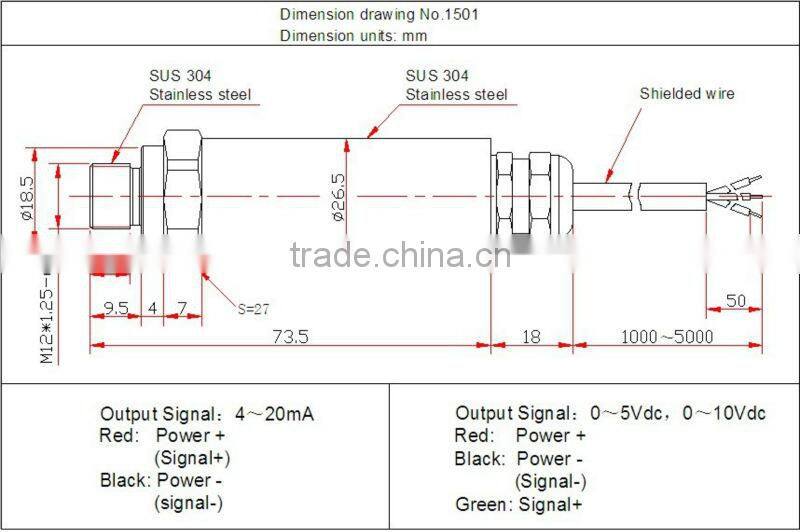

Dimension Drawing:
