Home > Products > sports & leather shoe making suit equipments > Hydraulic Swing Arm Cutting Machine/Shoe Making Machine

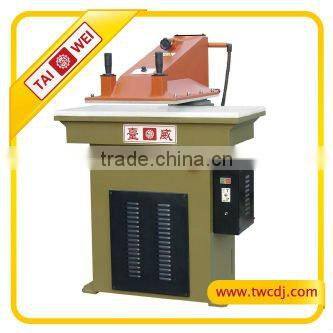

Hydraulic Swing Arm Cutting Machine/Shoe Making Machine
Negotiable
/ Unit
1 Unit(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | TAIWEI | |
| Model Number | TW-520C |
Product Description
Specifications
Item Name:Hydraulic Swing Arm Cutting Machine/Shoe Making Machine.Item NO.:TW-520C
Main Feature:
1.Automatic fit the cutting-knives of different heigh without any manual adjustment(pressure control)
2.using circuit board to adjust the pressure to biggest,the time of shaking the arm descend is adjusted by the electric potential machine(electronic control),so can use a smaller knife mold to cut normally
3.Only the hands press a swith in the meantime,the square can carry out to shake arm to descend,so the operation is very
safe.
Technique Parameter:
Model | Max cutting power | Max stroke | cutting table | Arm width | Motor power | size | Weight |
TW-520C | 20T | 80mm | 900*430mm | 370mm | 1Hp | 900*935*1370mm | 570kg |
TW-528C | 27T | 100mm | 1000*500mm | 500mm | 1.5Hp | 1000*1000*1370mm | 840kg |
