Well Sell AC Relays
- Shanghai;Ningbo;Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KAYAL | |
| Model Number | LR2-D13/D23/D33 | Theory | Thermal Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | High Power |
Product Description
| Magnetic Starter | Circuit Breaker | ELCB RCCB | Relay | AC contactor |
APPLICATIONS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
This series of thermal relay can be used in the circuit of 50Hz or 60Hz,rated insulation
voltage 660V,rated current 0.1-96A for protecting the phase break when the electric motor is
overload. The relay has different mechanism and temperature compensation & can be
plugged in LC1-D series AC contactor.It is the most advanced thermal relay in the nineties in the world.
CHARACTERISTICE
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
A.Fundamental parameter of the main circuit
(a).Rated insulation voltage 660V.
(b).Rated working current 25,36,93A separately.
(c).The regulator seal of rated setting current and setting.
(d).Current of the thermal component(see list 1)
B.Auxiliary Circuit
(a).There is one pair of NO/ and N/C contact with electric insulation.
(b).Rated insulation voltage 500V.
(c).Rated frequency 50-60Hz.
(d).Use group, rated working voltage ,appoint thermal current and rated current.
Motion Characteristic: Three-phase Balance Motion Time
| No | Times of the setting current | Motion time | Start condition | Ambient temperature | ||
| 1 | 1.05 | >2h | Cold state | 20±5oC | ||
| 2 | 1.2 | <2h | Heat state(Following the No.1 test) | |||
| 3 | 1.5 | <4min | ||||
| 4 | 7.2 | 10A | 2s< Tp≤10s | ≤63A | Cold state | |
| 10 | 4s< Tp≤10s | >63A | ||||
Phase-losing Motion Characteristic
| No | Times of the setting current | Motion time | Start condition | Ambienttemperature | |
| Any two phases | Another phase | ||||
| 1 | 1.0 | 0.9 | >2h | Cold state | 20±5oC |
| 2 | 1.15 | 0 | <2h | Heat state(Following the No.1 test) | |
SPECTFICATION
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Type | Number | Setting range (A) | For contactor |
| LR2-D13 | 1301 | 0.1~0.16 | CJX2-09~32 |
| 1302 | 0.16~0.25 | CJX2-09~32 | |
| 1303 | 0.25~0.4 | CJX2-09~32 | |
| 1304 | 0.4~0.63 | CJX2-09~32 | |
| 1305 | 0.63~1 | CJX2-09~32 | |
| 1306 | 1~1.6 | CJX2-09~32 | |
| 1307 | 1.6~2.5 | CJX2-09~32 | |
| 1308 | 2.5~4 | CJX2-09~32 | |
| 1310 | 4~6 | CJX2-09~32 | |
| 1312 | 5.5~8 | CJX2-09~32 | |
| 1314 | 7~10 | CJX2-09~32 | |
| 1316 | 9~13 | CJX2-09~32 | |
| 1321 | 12~18 | CJX2-09~32 | |
| 1322 | 17~25 | CJX2-32 | |
| LR2-D25 | 2353 | 23~32 | CJX2-09~32 |
| 2355 | 30~40 | CJX2-09~32 | |
| LR2-D33 | 3322 | 17~25 | CJX2-09~32 |
| 3353 | 23~32 | CJX2-09~32 | |
| 3355 | 30~40 | CJX2-09~32 | |
| 3357 | 37~50 | CJX2-09~32 | |
| 3359 | 48~65 | CJX2-09~32 | |
| 3361 | 55~70 | CJX2-09~32 | |
| 3363 | 63~80 | CJX2-09~32 | |
| 3365 | 80~93 | CJX2-95 | |
| LR2-D43 | 4365 | 80~104 | CJX2-95 |
| 4367 | 95~120 | CJX2-95~115 | |
| 4369 | 110~140 | CJX2-115 |
| Type | Rated working current of thermal relay | Thermal component | ||
| Rated current(A) | Rated or scale of rated current (A) | |||
| LR2-D13 | 25 | LR2-D1301 | 0.16 | 0.10-0.16 |
| LR2-D1302 | 0.25 | 0.16-0.25 | ||
| LR2-D1303 | 0.4 | 0.25-0.40 | ||
| LR2-D1304 | 0.63 | 0.40-0.63 | ||
| LR2-D1305 | 1 | 0.63-1.0 | ||
| LR2-D1306 | 1.6 | 1.0-1.6 | ||
| LR2-D13x6 | 2 | 1.25-2.0 | ||
| LR2-D1307 | 2.5 | 1.6-2.5 | ||
| LR2-D1308 | 4 | 2.5-4.0 | ||
| LR2-D1310 | 6 | 4.0-6.0 | ||
| LR2-D1312 | 8 | 5.5-8.0 | ||
| LR2-D1314 | 10 | 7.0-10.0 | ||
| LR2-D1316 | 13 | 9.0-13.0 | ||
| LR2-D1321 | 18 | 12.0-18.0 | ||
| LR2-D1322 | 25 | 17.0-25.0 | ||
| LR2-D23 | 36 | LR2-D2353 | 32 | 23.0-32.0 |
| LR2-D2355 | 36 | 28.0-36.0 | ||
| LR2-D33 | 93 | LR2-D3353 | 32 | 23.0-32.0 |
| LR2-D3355 | 40 | 30.0-40.0 | ||
| LR2-D3357 | 50 | 37.0-50.0 | ||
| LR2-D3359 | 65 | 48.0-65.0 | ||
| LR2-D3361 | 70 | 55.0-70.0 | ||
| LR2-D3363 | 90 | 63.0-80.0 | ||
| LR2-D3365 | 93 | 80.0-93.0 | ||

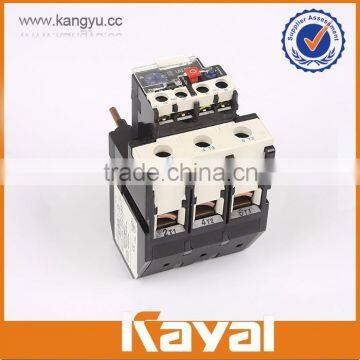

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ:
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
