Automatic PVC pipe belling machine/socket machine
- Shanghai
- T/T Credit Card
You May Like
-
SGK series fully automatic pvc pipe belling machine
-
pvc pipe belling machine
-
High quality pp sheet extruder machine/pp sheet extrusion line
-
Automatic PP Sheet Making Machine
-
PP Sheet Extrusion Line/production line/extruding machine
-
PVC PP Sheet machine / plastic sheet machine / wave roof sheet machine
Quality Choice
Product Details
| Condition | New | Product Type | Plastic Pipe | |
| Place of Origin | Jiangsu, China | Brand Name | MOOGE | |
| Model Number | SGK | Voltage | 3 Phase 380V 50 HZ | |
| Power(W) | according to model | Dimension(L*W*H) | according to model | |
| Weight | according to model | Certification | CE, Other, CE, ISO | |
| Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This machine is suitable for belling the plastic pipes. It can be used together with the pipe production line, or used separately.
Operation of the device and belling recycle process is automatically controlled by PLC.This machine is suitable for pipe diameters Φ16-800mm. The speed is depend on the pipe diameter. And can be adjusted according to the speed of extrusion machine.
We also can customized for our customer according to your requirment
Techiniacal Parameter
SGK-63 |
|
Pipe diameter: | Φ16-Φ63 |
Pipe length: | suitable for different pipe length |
Production speed: | 60-180PCS/H |
Max. Heating temp.: | 300° |
Air compressor power: | 0.4-0.6Mpa |
Intsll power: | 9.5kw |
With PLC control: | FX1n-60MR |
Electricity: | 380V 50HZ 3P(according to client request) |
Dimension: | 4800×2250×1650mm |
Machine weight: | 3.5T |
SGK-160 |
|
Pipe diameter: | Φ50-Φ160 |
Pipe length: | suitable for different pipe length |
Production speed: | 20PCS/H |
Max. Heating temp.: | 300° |
Oil pump power: | 1.5kw |
Machine working air pressure: | 4-6.3MP |
Hydraulic oil | 46# wearable oil |
Air compressor power: | 0.4-0.6Mpa |
If cooling by water pressure | 0.2-0.3MPa |
Intsll power: | 9.5kw(single oven), 20.5KW(double oven) |
With PLC control: | FX1n-60MR |
Electricity: | 380V 50HZ 3P(according to client request) |
Dimension: | 6400×1550×1700mm |
Machine weight: | 3.6T |
SGK-250 |
|
Pipe diameter: | Φ110-Φ250 |
Pipe length: | suitable for different pipe length |
Production speed: | 18PCS/H |
Max. Heating temp.: | 300° |
Oil pump power: | 1.5kw |
Machine working air pressure: | 4-6.3MP |
Hydraulic oil | 46# wearable oil |
Air compressor power: | 0.4-0.6Mpa |
If cooling by water pressure | 0.2-0.3MPa |
Intsll power: | 12.5kw(single oven) |
With PLC control: | FX1n-60MR |
Electricity: | 380V 50HZ 3P(according to client request) |
Dimension: | 6400×1550×1700mm |
Machine weight: | 3.6T |
SGK-250 double oven |
|
Pipe diameter: | Φ110-Φ250 |
Pipe length: | suitable for different pipe length |
Production speed: | 30PCS/H |
Max. Heating temp.: | 300° |
Oil pump power: | 1.5kw |
Machine working air pressure: | 4-6.3MP |
Hydraulic oil | 46# wearable oil |
Air compressor power: | 0.4-0.6Mpa |
If cooling by water pressure | 0.2-0.3MPa |
Intsll power: | 23.5kw(double oven) |
With PLC control: | FX1n-60MR |
Electricity: | 380V 50HZ 3P(according to client request) |
Dimension: | 6400×1750×1700mm |
Machine weight: | 4.5T |
SGK-400 |
|
Pipe diameter: | Φ200-Φ400 |
Pipe length: | suitable for different pipe length |
Production speed: | 25PCS/H |
Max. Heating temp.: | 300° |
Oil pump power: | 2.2 kw |
Machine working air pressure: | 4-6.3MP |
Hydraulic oil | 46# wearable oil |
Air compressor power: | 0.4-0.6Mpa |
If cooling by water pressure | 0.2-0.3MPa |
Intsll power: | 15.5kw(single oven), 28.5KW(double oven) |
With PLC control: | FX1n-60MR |
Electricity: | 380V 50HZ 3P(according to client request) |
Dimension: | 6800×2200×2100mm |
Machine weight: | 4.8T |
SGK-630 |
|
Pipe diameter: | Φ315-Φ630 |
Pipe length: | suitable for different pipe length |
Production speed: | 8PCS/H |
Max. Heating temp.: | 300° |
Oil pump power: | 7.5kw |
Machine working air pressure: | 4-6.3MP |
Hydraulic oil | 46# wearable oil |
Air compressor power: | 0.4-0.6Mpa |
If cooling by water pressure | 0.2-0.3MPa |
Intsll power: | 31kw(single oven), 48KW(double oven) |
With PLC control: | FX1n-60MR |
Electricity: | 380V 50HZ 3P(according to client request) |
Dimension: | 9500×2900×2200mm |
Machine weight: | 8T |
SGK-800 |
|
Pipe diameter: | Φ500-Φ800 |
Pipe length: | suitable for different pipe length |
Production speed: | 6PCS/H |
Max. Heating temp.: | 300° |
Oil pump power: | 7.5kw |
Machine working air pressure: | 4-6.3MP |
Hydraulic oil | 46# wearable oil |
Air compressor power: | 0.4-0.6Mpa |
If cooling by water pressure | 0.2-0.3MPa |
Intsll power: | 36kw(single oven), 56KW(double oven) |
With PLC control: | FX1n-60MR |
Electricity: | 380V 50HZ 3P(according to client request) |
Dimension: | 10×3.2×2.2m |
Machine weight: | 12T |

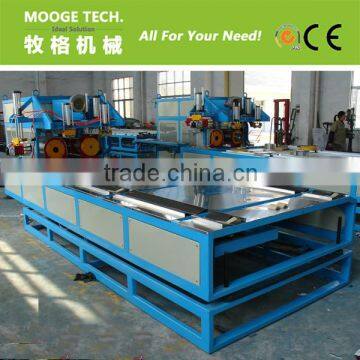

Machine pictures
For the loose cargo we will packing by wooden box
For the full container loading we are packing the machine by film and some on pallet accordingly
We can shipping the goods by air or by sea
We will send pictures of cargo loading to our client to check and keep recording
We can send cargo to client’s warehouse to loading
Pre-sale: we given client the details technician offer, sign the sales contract etc.
In-sales: we supply the details layout, installation instruction, technician support for the clients.
After sales: we arrange engineer to install the machinery and training the workers for client.
We have 24hours team to solve the after sales problem.
We have free spare parts with the machine.
We supply long term spare parts for every customer.
We always up date the new technology to every customer.
1- How to choose proper products you want?
Please tell us as detail as what you want?
What’s your raw material it is?
What’s the final products you want to produce?
What capacity you want it performance?
2- How to control the quality?
We have technical, engineer team design the sample machinery before enter into market
Production QC team ensure the machine manufacturing quality
We will running every machine after finished before shipment
Optional choose by client running the machinery by material
