Quality Assurance Screw and Double 1/4 Q.C. Air Conditionion ac Contactor
- NIBO/SHANGHAI
- T/T Credit Card
You May Like
-
OEM Custom ac Contactor High Quality Thru Contactors Air Condition Contactor Definite Purpose
-
Wholesale Conforms to UL and ARI Specifications Air Conditional ac Contactor
-
OEM Custom 3p+NO 3p+NC dc Reversing Contactor
-
Wholesale 85% Silver Contactor 110v dc Contactor 300a
-
China Manufacture High Standard of Plastic Silver Copper Lp1-d ac Contactor
-
Factory Price Free Sample Lp1-d Contactor
Product Details
| Place of Origin | Zhejiang, China | Brand Name | KAYAL/OEM | |
| Model Number | DP contactor-01 | Electricity Type | AC | |
| Number of Pole | Other, 2p | Phase | 2 | |
| Main Circuit Rating Voltage | Other, 24V-240V | Main Circuit Rating Current | Other, 20A-40A |
Product Description
| Magnetic Starter | Circuit Breaker | ELCB RCCB | Relay | AC contactor |
1/2POLE CONTACTORS(20A THRU 40A)
Straight-Through Wiring, Replaces 1-1.5 Pole Devices Used Primarily in Residential Central Air Conditioning
FEATURES
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1).Replaces many type 117 contactors used by OEM's
2).Universal style mouting bracket fits existing mounting holes
3).Screw terminals and 1/4 quick connect terminals for easy installation.
SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Product name | Professional factory made CKYC2-1P 30A high quality ac contactor | ||||||
| Temperature Range | -40°F to 150°F | ||||||
| Mechanical Life(No load) | Conforms to UL and ARI Specifications | ||||||
| Electrircal Life | Conforms to UL and ARI Specifications 94-388 thru 94-390 achieve 200,000 Cycles,make LRA at.5pf, break 125% of FLA at. 75pf at rated voltage,10,000 cycles make and brek LRA at.5pf rated voltage 94-394 thru 94369 achieve 100,000 cycles, make LAR at 5pf at rated voltage 6.000 cycles make and break LEA at 5pf rated voltage | ||||||
| Weight(approximate) | 9.25 oz | ||||||
| Coils Frequency | 50/60HZ | ||||||
| Coil Insulation | Class B(130°) | ||||||
| Termination | Screw and Double 1/4 Q.C. | ||||||
| Operate | 85% of nominal coil voltage; | ||||||
| 110% maximum safe opreate | |||||||
| Duty Cycle | Continuous | ||||||
| Coil data | |||||||
| Steveco number | Volatge | Ress DC | Current | Nominal | Max. Inrush | ||
| 30 Amp 40Amp | AC | OHMS | MA | VA | VA | ||
| C2-388 C2-394 | 24 | 16.5 | 208 | 5 | 20 | ||
| C2-389 C2-395 | 120 | 420 | 42 | 5 | 20 | ||
| C2-390 C2-396 | 208/240 | 1825 | 21 | 5 | 20 | ||
| Contact Ratings | |||||||
| Type | Voltage | FLA | LRA | RES | |||
| C2-388 thru C2-390 | 277 | 30 | 150 | 40 | |||
| 480 | 30 | 75 | 40 | ||||
| 600 | 30 | 50 | 40 | ||||
| C2-384 thru C2-396 | 277 | 40 | 200 | 50 | |||
| 480 | 40 | 100 | 50 | ||||
| 600 | 40 | 80 | 50 | ||||

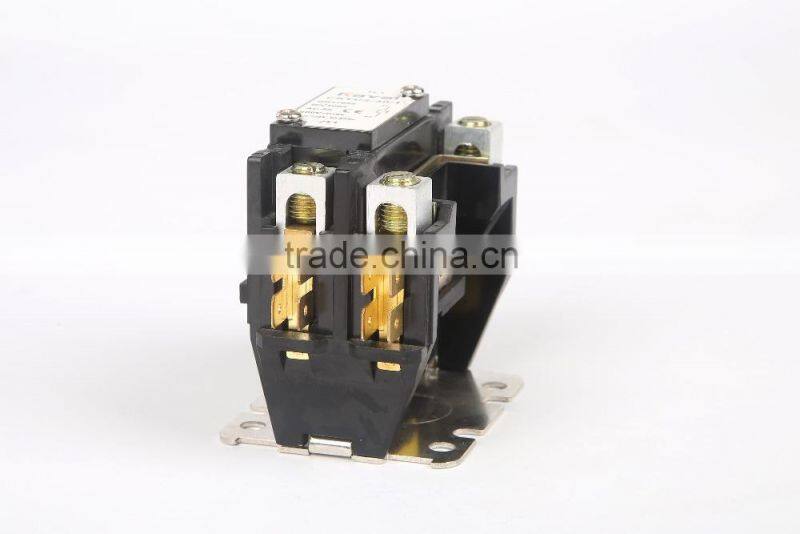

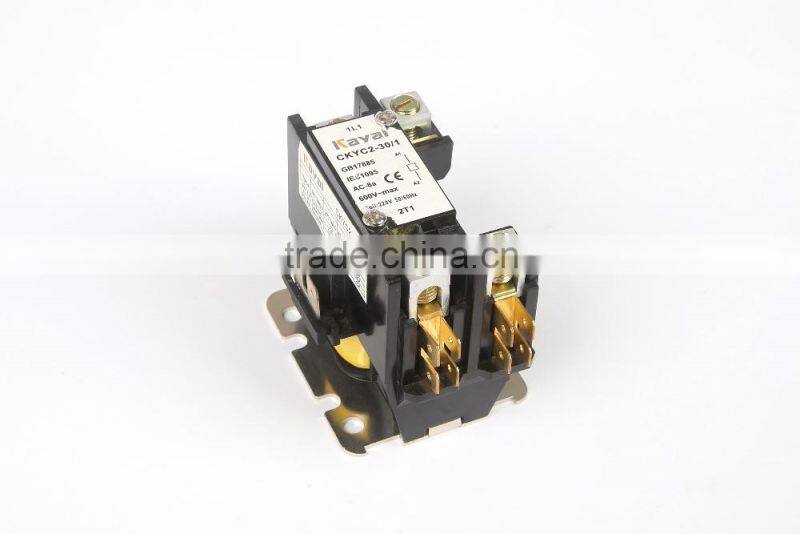

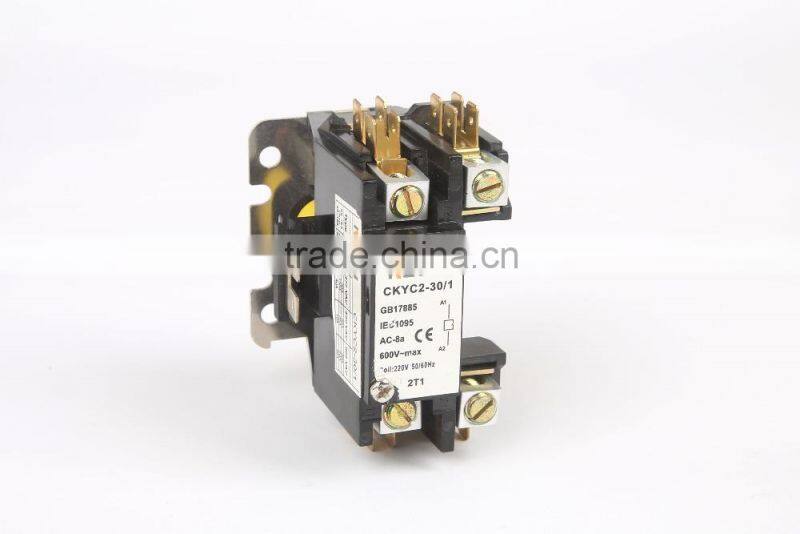

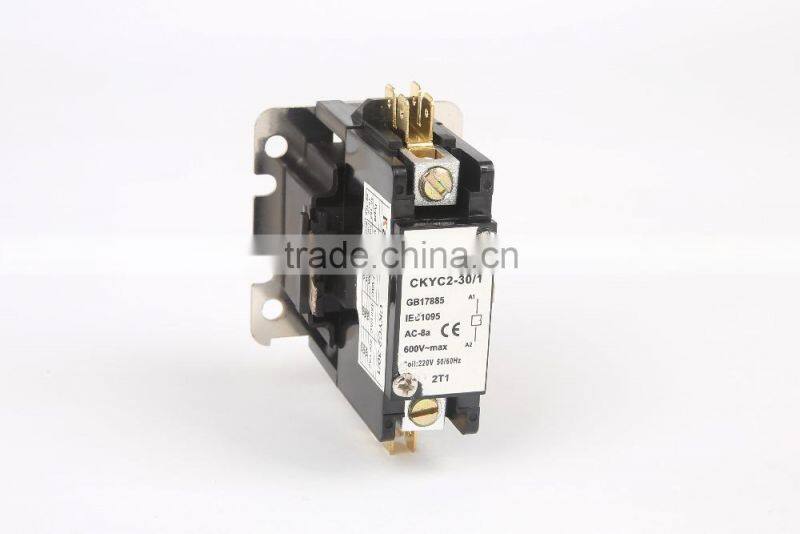

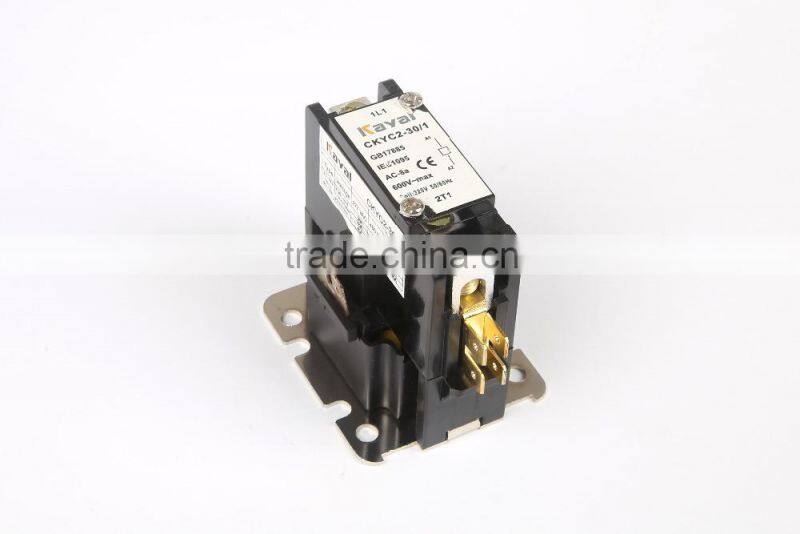

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or
other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
