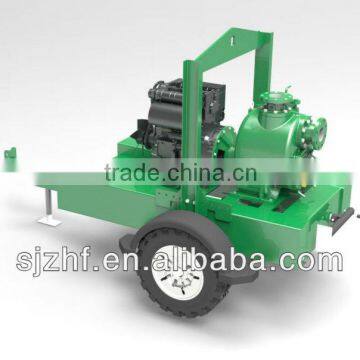

trailer mounted self priming trash pump

Engine specification

Engine size

Displacement

Type

Fuel consumption per hour

Deutz F2L912 26hp@2300rpm(ST-3"pump)

1.88L

2 cylinder air cooled,naturally intake

2.00Gallon(7.424L)

Deutz F3L912 48hp@2300rpm(ST-4"pump)

2.828L

3 cylinder air cooled,naturally intake

1.95Gallon(7.424L)

Deutz F4L912 46hp@1500rpm(ST-6"pump)

3.77L

4 cylinder air cooled,naturally intake

1.90Gallon(7.424L)

Deutz F6L912T 80hp@1500rpm(ST-8"pump)

5.3655L

6 cylinder air cooled,turbocharged

1.90Gallon(7.424L)

Deutz BF6L913 100hp@1500rpm(ST-10"pump)

6.128L

6 cylinder air cooled,turbocharged

1.90Gallon(7.424L)

Deutz F3L912 48hp@2300rpm(SU-3"pump)

2.828L

3 cylinder air cooled,naturally intake

1.95Gallon(7.424L)

Deutz F4L912 61hp@2300rpm(SU-4"pump)

3.77L

4 cylinder air cooled,naturally intake

1.90Gallon(7.424L)

Deutz BF4L913 88hp@2300rpm(SU-6"pump)

4.086L

4 cylinder air cooled,turbocharged

1.85Gallon(7.424L)

T series pump technical data

Outlet/inlet Diameter

2"-12"

Flow

MAX.1200M³/hour

Head

MAX. 35m

Media Temperature

-10°C~+85°C

System pressure

MAX. 3.5BAR

Suction lift

MAX. 7.6m

Solids

MAX. 76.2mm

Name

ST-3"(75mm) pump

ST-4”(100mm) pump

ST-6”(150mm) pump

ST-8”(200mm) pump

ST-10”(200mm) pump

Head to

112"(34m)

115”(35m)

109”(33m)

109”(33m)

129”(39m)

Flow to

450GPM (102M³/hour)

730GPM (165M³/hour)

1480GPM (335M³/hour)

2600GPM (600M³/hour)

3200GPM  (725M³/hour)

solid size

2.5inch

3inch

3inch

3inch

3inch
