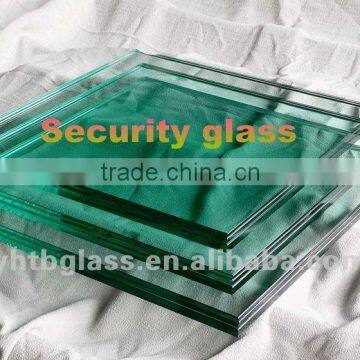

Security glass

Specifications

Application

Borosilicate 3.3 serves as a material of true function and wide applications:

1). Household electrical appliance (panel for oven and fireplace, microwave tray etc.);

2).        Environmental engineering and chemical engineering (lining layer of repellence, autoclave of chemical reaction and safety spectacles);

3).   Lighting (spotlight and protective glass for jumbo power of floodlight);

4).   Power regeneration by solar energy (solar cell base plate);

5).   Fine instruments (optical filter);

6).       Semi-conductor technology (LCD disc, display glass);

7). Medical technique and bio-engineering;

8).   Safety protection (bullet proof glass)

It is similatr to Schott borosilicate glass, borosilicate glass pyrex, pyrex borosilicate glass.

Technical Data:

Dimensions: 1200mm×600mm 1150mm×850mm 1200mm×1700mm other formats upon request

Available thickness: 1.5mm--20mm

Processing:  pre-cut formats, edge processing

Density (at 25): 2.23±0.02g/³

Co-efficient of expansion(20-300): 3.3±0.1×10^-6

Softening point: 820±10

Identical temperature difference (Strengthening type): 100K

Maximum working temperature: ≥450

Refractive: n_d :  1.47384

Light transmission: 92%thickness≤4mm91%(thickness≥5mm)
