High Quality Non-standard Ball Screw Bearing BS60120 TN1/P4 ( Sealed Type )

Specifications

High Quality Non-standard Ball Screw Bearing

BS60120 TN1/P4 ( Sealed Type )

Angular contact ball bearings has been designed to meet the increasingly demanding requirements of equipment manufacturers. These bearings have a contact angle so that they can sustain significant axial loads in one direction together with radial loads. Furthermore, since an axial component is generated when a radial load is applied, these bearings are generally used in pairs, triplex sets, quadruplex sets, or multiplex sets.

Characteristics

u High Quality Steel.

u Advanced Technology assured high performance in running

u Low noise. Quiet and smooth operation even at high speed.

u Contact Angle - Offered in 15, 25, 30 and 40 degree angles.

u Cages - Available in a range of Polyamide, steel and brass cage assemblies.

 Application

Angular contact ball bearings are engineered for use in high-speed, high precision applications for:

• Agriculture
• Chemical
• General industry
• Utilities

Angular contact ball bearings Available Series

Single row angular contact ball bearings:78 XX, 79 XX, 70 XX, 72 XX, 73 XX, 74 XX

Double row angular contact ball bearings: 32**, 33**, 38**, 39**, 30**, 52**, 53**,

Four point contact bearings: QJ series

Brief Introduction

Model Number

Ball screw bearing (Inch BS-series):
BS1547 BS1747 BS2047 BS2562 BS3062
BS3072 BS3572 BS4072 BS4090 BS4575
BS45100 BS50100 BS5590 BS55100 BS55120
BS60120 BS75110 BS100150 BS1547TN BS1747TN
BS2047TN BS2562TN BS3062TN BS3572TN BS4072TN
BS4090TN BS4575TN BS45100TN BS50100TN BS5590TN
BS55100TN BS55120TN BS60120TN

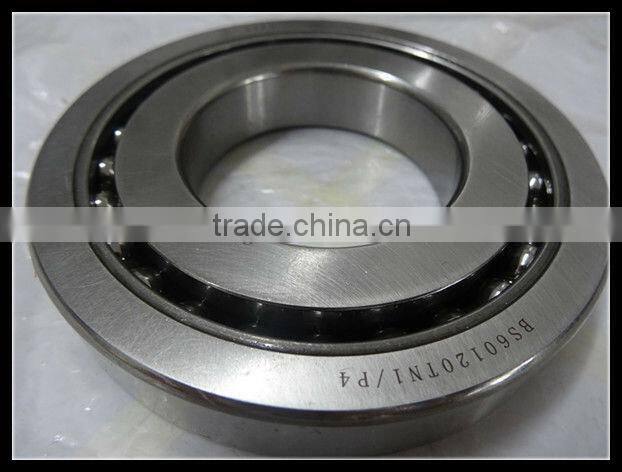

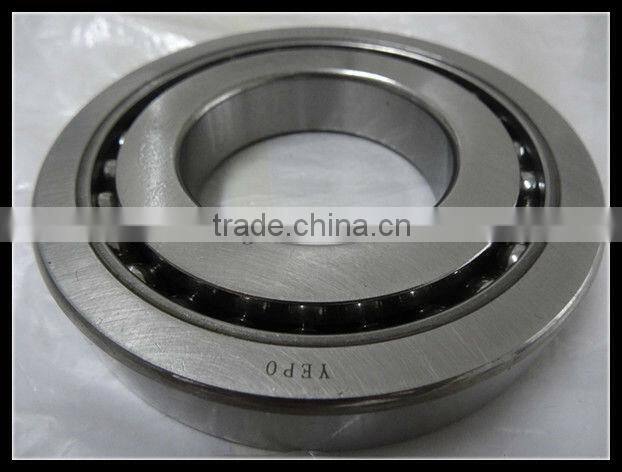

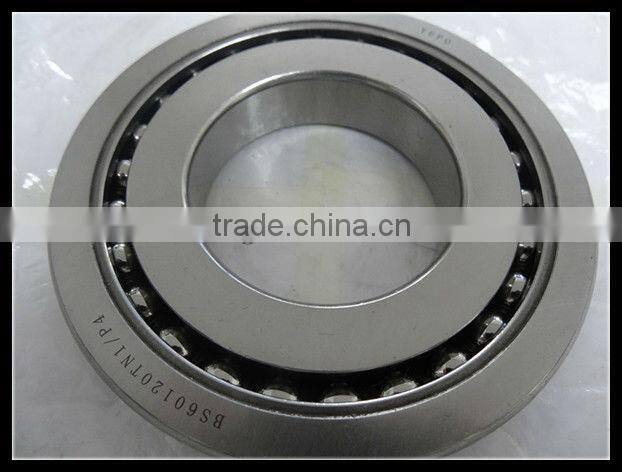

Real Pictures

Packing way

1, For heavy bearing packages we use wooden case packing

2, For light bearing packages we use industry packing

YEPO available series of bearing:

u     Deep groove ball bearing

u     Angular contact bal bearing

u     Spherical roller bearing

u     Tapered roller bearing

u     Pillow block bearing

u     Thrust ball and thrust roller bearing

u     Spherical ball and roller bearing

u     Rod ends bearing

u     Linear bearing and linear guide

u       Needle roller bearing
