Best Price Small Scale Bottle Water Filling Machine
- ningbo port
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage, Commodity, Food, Other, Beverage, Commodity, Food, water | |
| Packaging Type | Bottles | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V can be customized | Power | 4.0kw | |
| Place of Origin | Zhejiang, China | Brand Name | Honetop | |
| Model Number | XGF18-18-6 | Dimension(L*W*H) | 2500*1800*2300mm | |
| Weight | 3000kg | Certification | CE ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

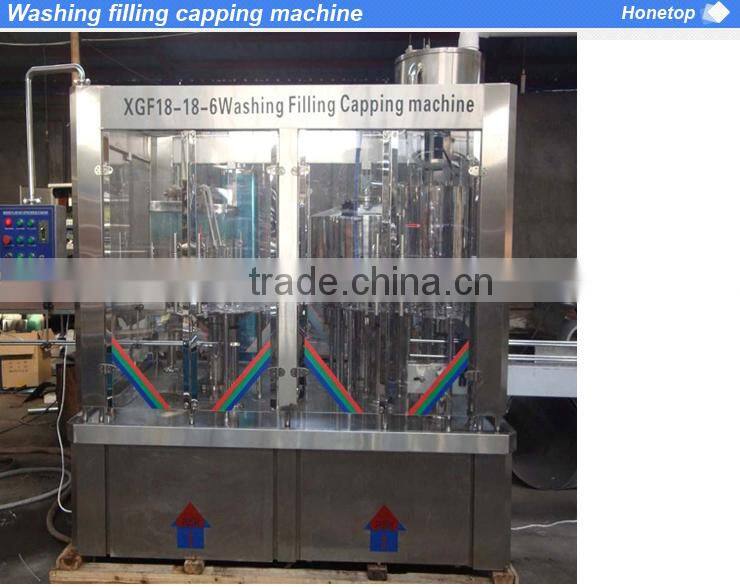

Best Price Small Scale Bottle Water Filling Machine
This Bottle Water Filling Machine XGF18-18-6is suitable for pure water,wine,and other liquid with normal temperature. Not suitable for juice,tea drinks in high temperature hot filling condition.
1. Automatic Bottling 3 in 1 Bottle Water Filling Machine adopts Washing/Filling/Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304.
2.Zero reversal washing bottles of fixture can make diameter larger bottle on the equipment.
3. Filling system has level sensor, can automatically control the liquid level.
4.Automatic stop device when bottle was hold back.
5.Automatic stop device when the motor was overloaded.
6.Using magnetic torque sealing technology, magnetic torque size is adjustable.
7.Adopting high precision, high speed quantitative filling valve, liquid level accurate can ensure quality of accurate filling.
Model | XGF8-8-3 | XGF12-12-5 | XGF18-18-6
| XGF24-24-8 | XGF32-32-10 | XGF40-40-10 | XGF50-50-12 |
Production capacity 500ml(mm) | 3000 | 4500 | 8000 | 10000 | 15000 | 18000 | 20000 |
Suitable height(mm) | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
Suitable diameter(mm) | Φ50-Φ110 | Φ50-Φ110 | Φ50-Φ110 | Φ50-Φ110 | Φ50-Φ110 | Φ50-Φ110 | Φ50-Φ110 |
Spraying Pressure(Mpa) |
|
|
|
|
|
|
|
Power supply(KW) | 2.2 | 3.2 | 3.8 | 4.2 | 5.6 | 6.3 | 7.5 |
Filling Temperature | Room temperature | ||||||
Overall Size: L*W*H(mm) | 2100*1500* 2300 | 2400*1800* 2300 | 2500*1800* 2300 | 2800*2000* 2400 | 3700*2600* 2600 | 4000*3000* 2600
| 4500*3400* 2600 |
Total weight(KG) | 2000 | 2500 | 3000 | 4000 | 5000 | 6000 | 7200 |
