CNC Automatic Deformed Reinforcing Bar Cutting and Bending Integrated Machine

FOB Price

US$ 16,000 - 150,000 / Set

1 Set(Min. Order)

Port Shenzhen Yantian Port
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	SKZ
Model Number	KZQ150 KZ2L32		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

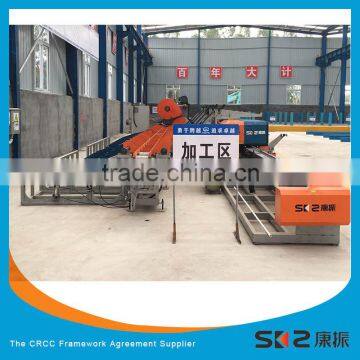

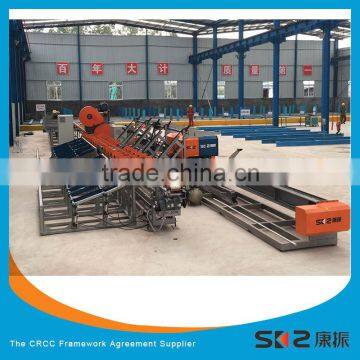

Integrated CNC Rebar Cutting and Bending Machine

Ⅰ. Description:

This machine consists of CNC rebar cutting machine and CNC rebar bending center, It combines the advantages of two machines into integrated line,achieves a lean production in the rebar processing industry .

Ⅱ.Features

1, Save space: The finished rebar of cutting does not need to arrange storage space, equipment covers around 120 square meters;

2, Reduce manual: Without lifting and handling, bar direct molding

3, Increase efficiency: To achieve bending finished products from raw materials in the shortest time

4, Quality assurance: up/down operation closely linked with the timely detection of exception and correct;

Simple operation: The equipment is equipped with humanize operating procedures, modular set, optional operation, the operation is extremely simple.

Ⅲ. Technical Parameter.

Name		CNC Rebar shears
Model		KZQ150
Max shear force		1500KN
Cutting speed		27/min
Max steel strength		570MPa
Cutting length	manual	0-900 mm
	automatic	900-12000 mm
cutting capacity	¢	10	12	14	16	18	20	22	25	28	32	36	40
	Deformed bar Ⅲ Grade n.	10	10	8	6	5	4	3	2	1	1	1	1
	Round bar Ⅰ Grade n.	12	12	10	8	6	6	4	3	2	1	1	1
Conveying Speed		≤60m/min
Average Power consumption		14KW/h

Model		KZ2L32
Max Bending Angle (⁰)		φ6-φ28				+180⁰
						-120⁰
		φ32				+90⁰
						-90⁰
Max Bending Size(mm)		10500
Min Bending Size (mm)		90
Min Bending Side Length		(φ10),(630mm)
		(φ25),(650mm)
Length Tolerance (mm)		±2
Bending Tolerance (⁰)		±1
Speed Control		CNC Servo control
Installed Power(KW)		14
Installed Voltage		380V 50Hz
Moving Speed(m/s)		0.2-0.9
Bending Speed (⁰/s)		65
Working(⁰C)		0—40
Cylinder Pressure(Mpa)		0.6
manufacture range	Strand Diameterφ(mm)	10	12	14	16		20	22	25	28	32
	Nos .to be sheared(pcs)	6	5	4	3		3	2	2	1	1
Weight(kg)		4500
