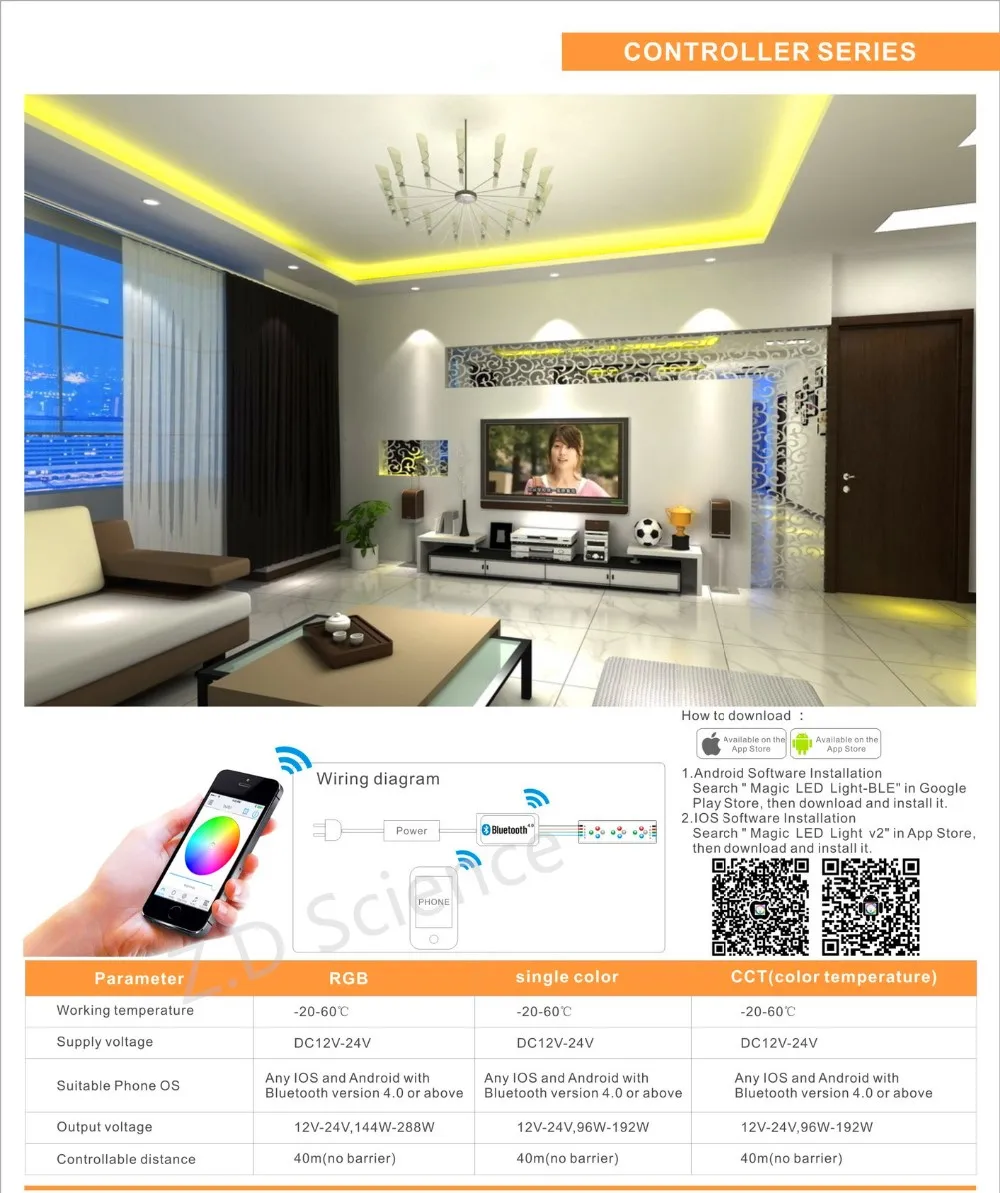

RGB LED Rope Light Remote Control LED Light Strip Wireless Controller Programmable

II.Product Summarize

This controller support Bluetooth version 4.0 or above.

It can achieve remote control ,switch light,adjust brightness and color temperature.There are 16 million colors and dozens of light changing modes.In addition.

This controller is designed for LED strip, module etc. After easy installation and settings, you can use your Phone (IOS or Android system) to control. The remote control distance reach 30 meters indoor and more than 60 meters outdoor.



Ⅲ.MagicLight V1.0 Instruction

1. Install Magic LED Light V1.0

A .Search“Magic LED Light"in App store by iPhone, download for free and install it.

B.Download it by scanning QR code：

 C.Directly download it on site:/us/app/magic-led-light/id667339109?ls=1&mt=8



Following pages show you how to install"Magic LED Light



2. Connect Bluetooth LED Controller

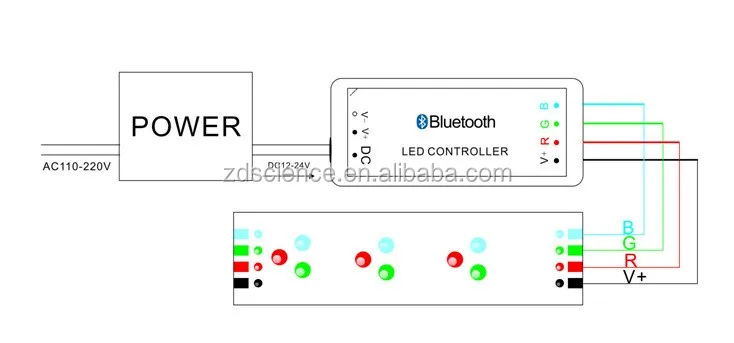

Pls connect the controller with power supply by correct connection.Then open phone’s Bluetooth service.If your Bluetooth service is off ,Phone will antumatic pop-up a interface ”Turn On Bluetooth to Allow “Magic Light “to Connect to Accessories.Choose “Settings” first ,then “on “bluetooth .

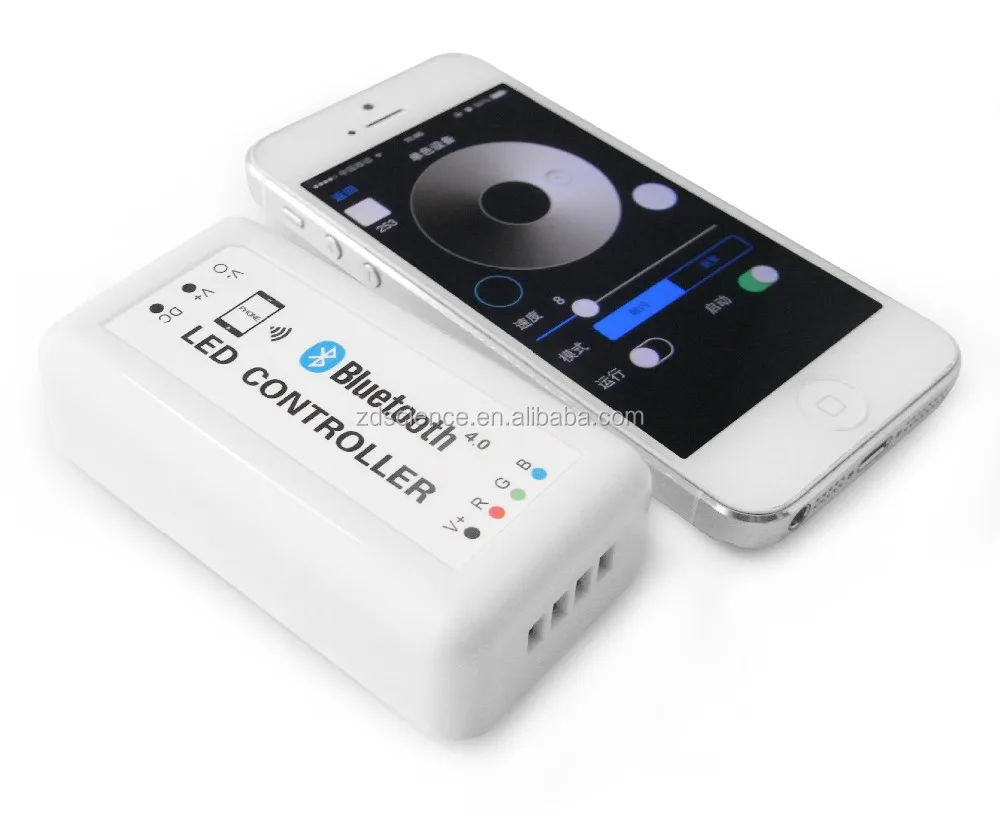

3. Software Operating

a.Preview：
Though youcontroller haven’t connected, you can open operation interfacel by preview mode.

b.Reset：
Rescancontroller.

c.White Vision







1.White ring: Press the white ring, choose any brightness you like.The brightness state will shows your choice.
a. All off：darkest
b. All on：brightest

c. Speed bar

For “Strobe” or “Gradual” mode,speed can be adjusted.Total 31 grades of each mode : "1" is the slowest grade; "31" is the fastest grade.

5. Modes:
1) Strobe mode
2) Gradual mode

6. Run: Invalid in static color, valid for dynamic modes.

7. Open: ON/OFF.



Warm White and Cool White Vision：

1. Color temperature ring: Press the ring, choose any color temperature you like .The color temperature state will shows your choice.
2. All off：darkest
3. All on：brightest
4. Speed bar:
5. For “Strobe” or “Gradual” mode,speed can be adjusted. Total 31 grades of each mode : "1" is the slowest grade; "31" is the fastest grade.
6. Brightness: you can change it from 0-100%.
7. Modes:
1) Warm gradual
2) Cool gradual
3) Warm flash
4) Cool flash
8. Run: Invalid in static color, valid for dynamic modes.
9. Open: ON/OFF.


RGB Vision

1. Color ring: Press the color ring, choose any color as you like.The color will shows your choice.
2. All off：darkest of three channels(R,G,B)
3. All on：brightest of three channels(R,G,B)
4. Brightness bar: Sliding to the left ,light wil be more and more darkest;Sliding to the right,light will be more and more bright.
5. Open: ON/OFF.
6. 20 built-in modes:
1) Press M-/M+ to choose modes, you can adjust the speed at the same time.
2) Total 31 grades of each mode:"1" is the slowest grade;"31" is the fastest grade.
3) Following are 20 built-in modes of RGBControl:



20 Built-in Modes

Number                Mode                                                         Remarks

1                   Seven color cross fade
2                   Red gradual changing
3                   Green gradual changing
4                   Blue gradual changing
5                   Yellow gradual changing
6                   Cyan gradual changing
7                   Purple gradual changing
8                   White gradual changing
9                   Red/Green gradual changing
10                 Red/Blue gradual changing                        Run: Invalid in static color,
11                 Green/Blue gradual changing                    valid for dynamic modes.
12                 Seven color strobe flash
13                 Red strobe flash
14                 Green strobe flash
15                 Blue strobe flash

16                 Yellow strobe flash
17                 Cyan strobe flash
18                 Purple strobe flash

19                 White strobe flash
20                 Seven color jumping changing
