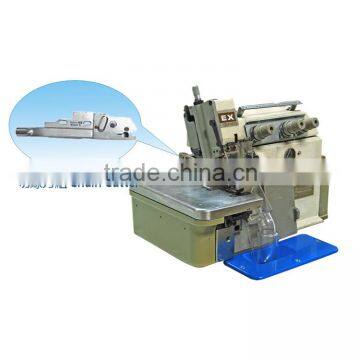

2 Ways Electric Suction Chain Cutter Device With over-lock Machine

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port zhongshan/Hongkong

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Semi-Automatic
Place of Origin	Guangdong, China	Brand Name	GRAND
Model Number	GE102-2-HB (for pegasus)	Voltage	220V
Certification	ISO9001:2008;CE;UKAS Certificate	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

ISO9001:2008;CE;UKAS Certificate
1.low Noise,
2.Easy to use,
3.Latest Type,
4.Convenient,

Advantages of sewing machine installing chain cutter dust suction device?
1, work site clean
2, equipment clean
3, does not require any operational requirements, novices can be quickly reached the level of skilled
4, save sissors threads workers
5, to improve the production efficiency 20%

GRAND brand Chain cutter dust suction device works: air compressor pressure generated by the vacuum generator after amplification (or small vacuum motor) produces powerful suction, the former Qiebu inhalation trash, after priming package after the completion of the sewing inhalation internal sutures knife, aim to achieve by trimming blade reciprocates.
Effect: provincial lines, job site clean, equipment cleaning, save costs and improve productivity.
Application: Suitable for all brands of sewing sewing machine supporting the use of the installation.

PEGASUS EX over-lock machine Configure & installation diagram :

Electric suction dust collector kind Legend:

Name:	2 Ways Electric Suction Chain Cutter Device With over-lock Machine (with PEGASUS over-lock machine as an example:front waste + chain vacuum removal + Brush vacuum motor)
Model:	GE102-2-HB-PEGASUS Derived Model: GE101-2-HB 1 way chain removal only GE101A-2-HB 1 way waste vacuum only GE102-2-HB 2 ways chain removal+waste vacuum
Description:	This series of products applies to thread-cutting and suction for overlock sewing machine in Garment manufacturing company. The device no configuration air compressor. It has 1 way (front waste or chain vacuum removal, you can choose one of them), 2 ways (front waste plus chain vacuum removal) . This device is by the vacuum motor is powered to thread-cutting dust suction for purpose. Using dust collection system linkage work, including the sewing machine is not working, energy-saving design dust collection system does not work. Dust collection system can also work long-term, multiple-choice, Achieve clean room effect.
Feature:	1.Use Brushless suction motor:which does not need carbon brush and nonmaintenance under super high speed running. 2.Venturi Operates when treadle pressed. 3.Can be used with any kind of over lock ir interlock machine with clutch or electronic motor. 4.Electric regulator assembly is optional.

Scution Device Order Guide:GA 10 2 -1 - P - D - F - SCGE 10 2 -2 - BL
GA/GE	GA means Air Action GE means Electirc Action	1/2/4	1 means fabric suction bag(for air action) 2 means round plastic bucket (for electirc action) 4 means iron box (for electirc action)
10/20/30/11/21/31	10 Means Round Style Suction Cover for Overlock M/C 20 Means Round Style Suction Cover for Flatlock M/C 20 Means Round Style Suction Cover for Feed Off Arm M/C 11 Means Square Drawer Suction Cover for Overlock M/C 21 Means Square Drawer Suction Cover for Flatlock M/C 31 Means Square Drawer Suction Cover for Feed Off Arm M/C	S/S2	S means single solenoid valve S2 means doubel solenoid valves
		P	P means cylinder(foot lifter)
		D	D means Full-submergence bracket
		F	F means air regulator(Filter)
		SC	SC means upper looper dust removal(self-cleaning)
1/1A/2	1 Means 1 way chain removal only 1A Means 1 way waste vacuum only 2 Means 2 ways chain removal+waste vacuum	BL/HB	BL means Brushless Motor Scution HB means Suction Brush Motor

Chain Cutter Optional:

MACHINE BRAND	CHAIN CUTTER MODE	MACHINE MODEL
JUKI	TO-45 TO-42 (Side)	MO-2514, 3314 3714, 3914, 6714, 6914
JUKI	TO-35 TO-41 (Flat)	MO-2516, 3316 3716, 3916, 6716, 6916
YAMOTO	2109917(K2) (Side)	AZ-8003, AZ-8020, CZ-6003, CZ-6125
YAMOTO	2109906(K1) (Flat)	AZ-8500, AZ-8600, CZ6520, CZ6500
BROTHER	S24273-001 (Side)	N11, N21, V61
BROTHER	S43547-001 (Flat)	N31, V51
PEGASUS	KS-308046-91 KS-30429A-91Y (Side)	EX5214, MX5214 M752, M852
PEGASUS	KH-308020A-91 KH-304308-91Y (Flat)	EX3216, MX3216 M732, M832
SIRUBA	KS-301148 KS-308046-91 (Side)	737, 747F, 747D, E52 988-504, 747K
SIRUBA	KH-301235 KH-308020A (Flat)	757F, 757D, 767F, E32 988-516, 757K
KINGTEX	SS023 KS-308046-91 (Side)	SH7004 UH9004
KINGTEX	SS035 KH-308020A (Flat)	SH7005 UH9005

Other cutter model not listed, please contact with the company engineers!

Factory use cases :
