HOT Sale Gold Refining Machine/ Gold ore Concentrator from China Suppliers
- Qingdao/ Tianjin/ Shanghai or as your requirement
You May Like
-
99% Recovery Rate Gold CIP Plant/ Gold ore Cyanidation & Refining
-
Gold & Copper ore Agitation Leaching and Adsorption Tank for CIP/ CIL Process
-
XBM professional manufacture provide complete set of gold mining machine/ gold mining machine with best price
-
99% recovery rate Gold ore cyanidation plant/gold refining
-
99% recovery rate gold cip plant for sale
-
99% recovery rate gold CIP plant /Gold ore cyanidation plant/gold refining
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | depends on the model | Place of Origin | China | |
| Brand Name | XBM | Model Number | JT2-2 | |
| Voltage | 380v | Power(W) | 3kw | |
| Dimension(L*W*H) | 3225*1550*2050 mm | Weight | 1ton | |
| Certification | ISO, CE | Warranty | 12 Months | |
| After-sales Service Provided | Overseas service center available |
Product Description

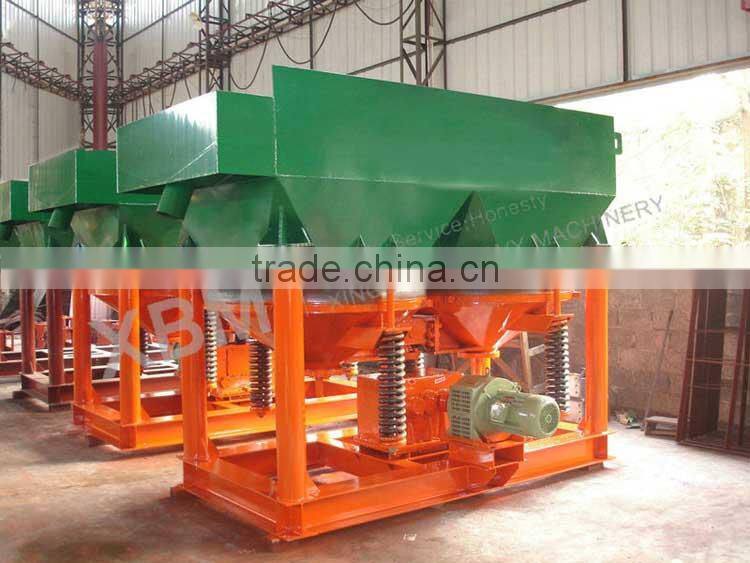

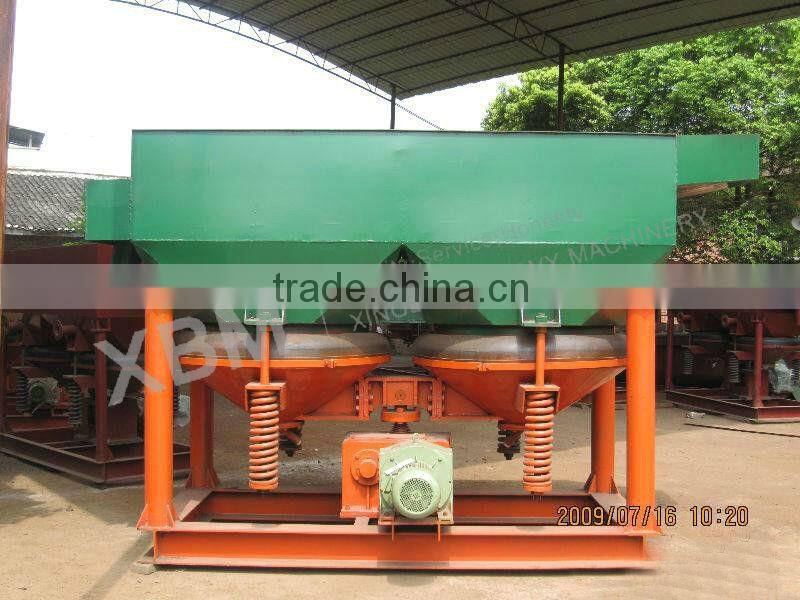

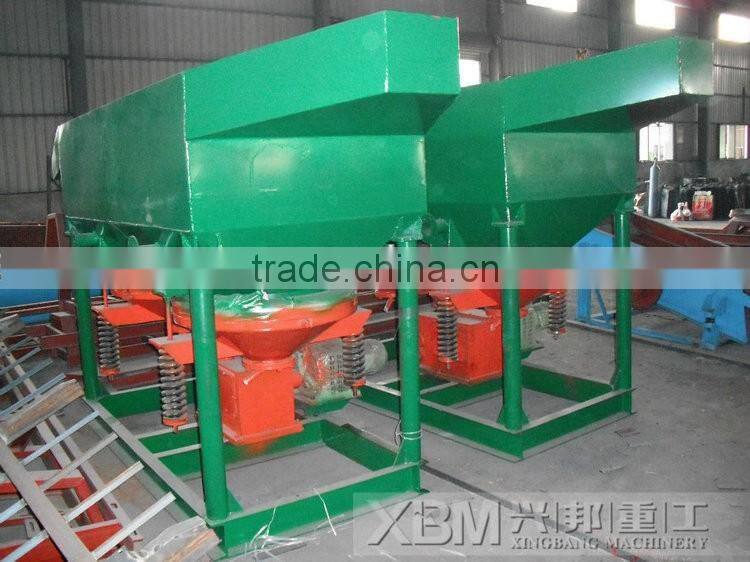

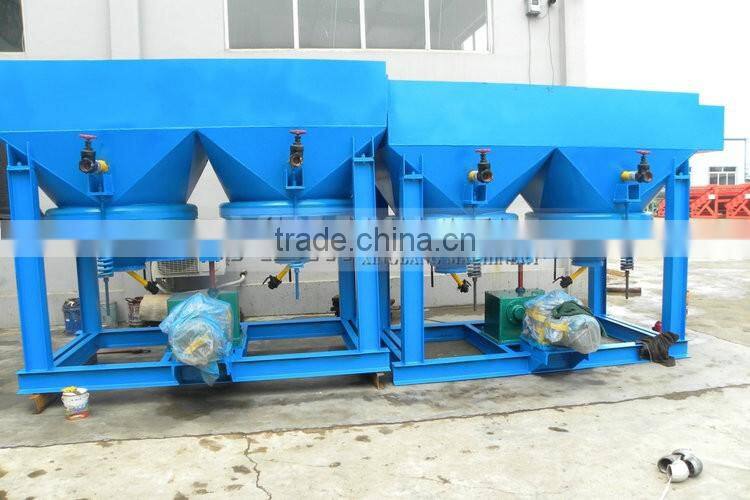

Jigging machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
2. Features of gold refining machine
1. Compact structure and small occupation area
2. Energy saving and continuous working
3. High recovery, high unit throughput and low water consumption
4. Simple installation and Minimal maintenance requirements
5. Stroke and frequency of stroke can be easily adjusted
3. Flowchart of gold processing plant
Use excavator to feed raw material to the hopper, the grain size more than 100mm diameter can be screened out and discharged directly, less than 100mm diameter will flow into the trommel, mud, sand and gravel will be separated under the action of trammel rotation and high pressure water washing. The gravel more than 10mm diameter will be discharged through sluice, the fine ore including gold whose diameter is less than 10mm will flow into the collecting tank ,there is fixed sluice at one side of the collecting tank, using gold felt to extract gold.
4. Specification of gold refining machine
Main Technical Parameters | |||||||||||
Model | Jig hutch | Diaphragm | Feeding size(mm) | Amount of make-up water (m³/t) | Make-up water pressure (Mpa) | Capacity (t/h) | Power (kw) | Dimension(mm) | Weight (Kg) | ||
Shape | Area (m²) | Stroke (mm) | Frequency of stroke (r/min) | ||||||||
JT0.57-1 | Trapezoid | 0.57 | 8.5-12 10-17 12-21 | 80-180 | <6 | 1-2 | ≥0.05 | 1.5-3 | 1.5 | 1550×780×1530 | 610 |
JT1-1 | Trapezoid | 1.04 | <10 | 2-3 | 2.5-5 | 2.2 | 2270×1110×1890 | 900 | |||
JT2-2 | Rectangle | 2.28 | <10 | 2-4 | 5-10 | 3 | 3225×1550×2050 | 1640 | |||
JT3-1 | Trapezoid | 3 | 12-30 | 50-125 | <10 | 3-6 | 7.5-15 | 5.5 | 2745×2000×3030 | 3085 | |
JT4-2 | Trapezoid | 4 | 25-57 | <25 | 4-8 | 8-20 | 7.5 | 4240×1990×2750 | 3098 | ||
JT4-2S | Trapezoid | 4 | 25-57 | <25 | 4-8 | 8-20 | 4.2 | 4240×1990×2750 | 3500 | ||
JT5-2 | Trapezoid | 4.86 | 12-30 | <10 | 3-6 | 12-25 | 7.5 | 3600×2000×2600 | 4500 | ||
Personalized reception: Offer the full and personalized service in the whole journey after you come to China.
Lifetime Technical Support: Offer one year of free equipment warranty and lifetime technical support.
Monitor Production Progress: You can monitor production progress personally any time after confirming the order.
Product Delivery: We have developed a long and good relationship with many shipping agents, such as APL, MSK, CSCL, MSC, etc.
Installation and Training: Send technicians to the client site for guiding the installation and adjustment, and training operators to complete the inspection and acceptance together with you.
Henan Xingbang Heavy Machinery Co., Ltd.(XBM) is a largescale enterprise with Integration of researching, development, manufacturing and marketing mining machinery. Our main business scope is: stone crushing series, industrial grinding series, ore dressing equipment and cement equipment.
Our products have been exported to a number of foreign countries, including southeastern Asia, South Africa, South America etc. And numerous customers have come to visit our factories with the purpose of choosing their ideal machine. China XBM always bears in mind the aim "Quality First; Honesty Foremost"!
Over 20 years experiences in this field; Exported to more than 30 countries in Africa, Asia, America; Processional Research and Development team; Strict quality control; Provide complete service equipment installation, testing ,maintenance and staff training.....
All XBM people sincerely welcome talents and customers all over the world to come and visit our factory!
Looking forward to cooperating with you ! Tel:86-13683809990
