Product Details
| Condition | New | Type | Crawler Tractor | |
| By wheel | Other, track | Usage | Farm Tractor | |
| Drive Type | Other, Hydraulic drive | Power(W) | 12hp | |
| Certificate | Other, SGS | Brand Name | G-Star | |
| Model Number | BY800 | Place of Origin | Jiangsu, China | |
| After-sales Service Provided | No overseas service provided |
Product Description
raupentraktor

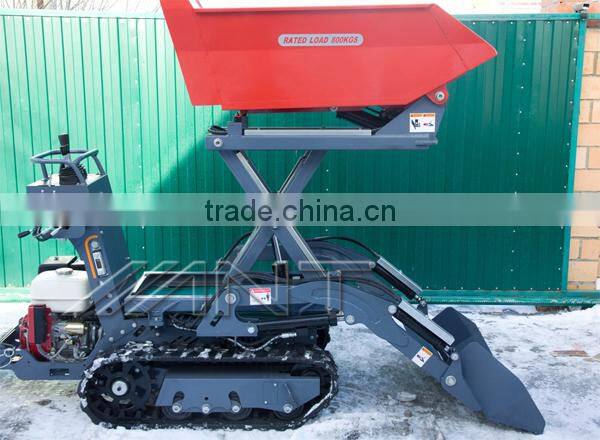

BY800 Chinese farm equipment raupentraktor
*Maximum loading weight is 800kgs.
*Easy and comfortable operation due to the intuitive controls.
*Self-loading shovel not only can be used as a small excavator but also keep the balance of the machine during unloading.
*Lifting height reaches to 1.4m by X-support.
*Easy climbing and stable crossing the obstacles.
*Spot turning ,mini slipping.
| Model | BY800 |
| Engine | 13HP Gasoline Honda , Gasoline Briggs & Stratton , Diesel (Yanmar) |
| Type | Hydra-static |
| Operative weight kgs(lbs) | 800 (1762) |
| Max travel speed km/h(mph) | 0-4.8(0-3.0) |
| Transmission | |
| Hydraulic pump | 2 x variable displ. |
| Flow Vmin(gpm) | 2 x 32.4 (2 x 8.5) |
| Hydraulic motors | 2 x orbital |
| Brake parking | Mechanical |
| Hydraulic system | |
| Hydraulic pump | piston pump |
| Flow Vmin(gpm) | 1 x 13.5 (1 x 3.5) |
| Hi-flow Vmin(gpm) | 1 x 22 (1 x 3.5) |
| Max pressure bar(psi) | 150 (2180) |
| Main valve | 2-3 way |
| Cooled system | air-cooled |
| Skip tipping system | Hydraulic |
| Tracks | |
| Standard track width mm(in) | 180 (7.1) |
| Track roller | 3 |
| Rocking rollers | YES |
| Track tensioning | YES |

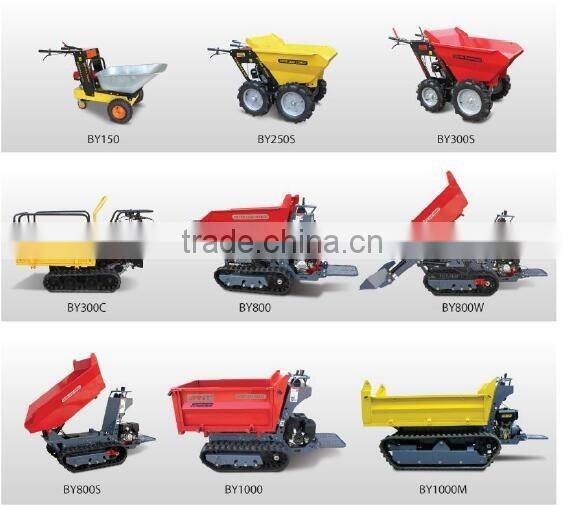

Products
| Model | Capacity | Weight | Packing size | Transmission | Main function |
| BY150 | 150KG | 90KG | 111*72*63CM | Mechanical | unloading dumper by manual |
| BY250 | 250KG | 121KG | 128*74*108CM | Mechanical | unloading dumper by manual /self unloading by electric optional |
| BY250S | 250KG | 212KG | 128*74*108CM | Mechanical | unloading dumper by manual /self unloading by electric optional |
| BY300 | 300KG | 131KG | 128*74*106CM | Hydraulic | unloading dumper by manual /self unloading by electric optional |
| BY300S | 300KG | 131KG | 128*74*106CM | Hydraulic | unloading dumper by manual /self unloading by electric optional |
| BY300C | 300KG | 175KG | 160*74*82CM | Mechanical | unloading dumper by manual |
| BY800 | 800KG | 650KG | 228*92*120CM | Hydraulic | front self loading dumper, self unloading dumper,high lift device |
| BY800W | 800KG | 625KG | 228*90*125CM | Hydraulic | front self loading dumper, self unloading dumper,no high lift device |
| BY800S | 800KG | 600KG | 220*90*125CM | Hydraulic | self unloading dumper,no high lift device |
| BY1000 | 1000KG | 600KG | 180*83*117CM | Hydraulic | self unloading dumper by 3 sides |
| BY1000M | 1000KG | 800KG | 230*90*147CM | Hydraulic | self unloading dumper,no high lift device |
1.For our products,we have 12 months warranty.
2.Within 12 months ,if there is some accessory going wrong ,we will send you the accessory at once ,free of Charge or deliver the spare parts in next order.
3.No responsibillity for man-made destory.
Our company having over 10 years’ experience in production and sales of light construction machinery. Our products have been sold to more than 70 countries and areas.
The present leading series of products include Mini loader,Power trowel,Tamping rammer ,Concrete road cutter,Plate compactors ,Concrete vibrator and so on.
