Home > Products > LED Downlight > Square LED Downlight retrofit
Square LED Downlight retrofit
- Shenzhen
- Credit Card
You May Like
Product Details
| LED Light Source | COB | Warranty(Years) | 2 years | |
| Input Voltage(V) | 85-265V | Lamp Power(W) | 10 | |
| Lamp Luminous Flux(lm) | 1100 | Lamp Luminous Efficiency(lm/w) | 110 | |
| Color Temperature(CCT) | Cool White | Working Temperature(℃) | -20, 45 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP44 | Certification | CE | |
| Model Number | KGH-1-10B | Place of Origin | Guangdong, China | |
| Brand Name | KDBANG |
Product Description
Square LED Downlight retrofit
Category:
We have round and rectangular COB led downlights include 10W, 12W, 15W, 20W, 30W , 40W,50W versions;
Application:
Products are widely used as indoor illumination lighting in the office, commercial center, shopping mall, supermarket, etc.
Parameters:
Material | Die Casting Aluminum + reflective cup |
Color temperature | Warm white: 2800-3200K |
Natural white: 4000-4500K | |
Pure white: 6000-6500K | |
Power of LED | 10W |
LED Chip (quantity) | Epistar |
Chip's material | Ceramic |
| Chip's Quantity | 1 pc |
Body Size | 140*140mm |
| Cut Size | 120*120mm |
Input voltage | AC85-265V |
Freqency Range | 50Hz-60Hz |
Working Temperature | -40~+65°C |
IP Grade | IP44 |
Beam angle | 30 degrees |
Power Factor | >0.95 |
Power efficiency | >85% |
LED luminous efficiency | 1200LM |
Color Rendering Index | Ra>80% |
Light design | LED + Reflective cup secondary light distribution |
Lifetime | >50,000hrs |
Color of housing | White |
| Certification | CE |
Power | Surface Size | trepanning | Chip Brand | CTN |
| 1*10w/1*12w | 140*140mm | 120*120mm | Epistar | 30pcs |
| 2*10w/2*12w | 270*140mm | 250*120mm | Epistar | 18pcs |
| 3*10w/3*12w | 390*140mm | 370*120mm | Epistar | 15pcs |

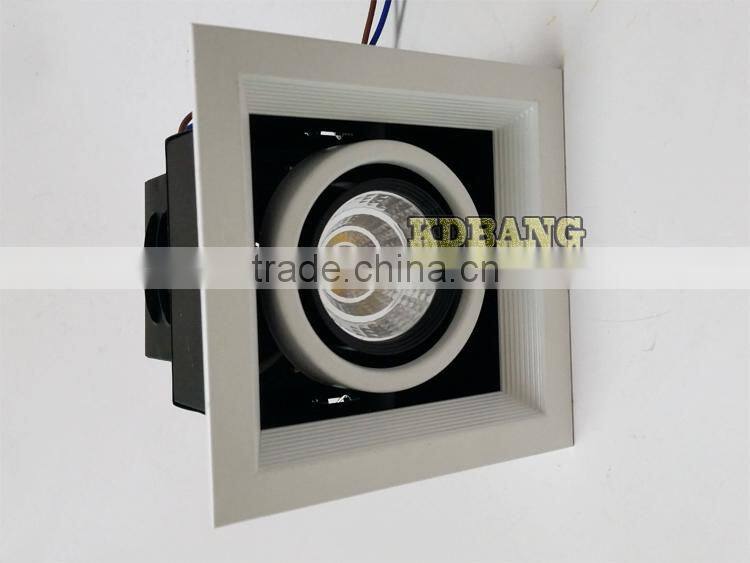

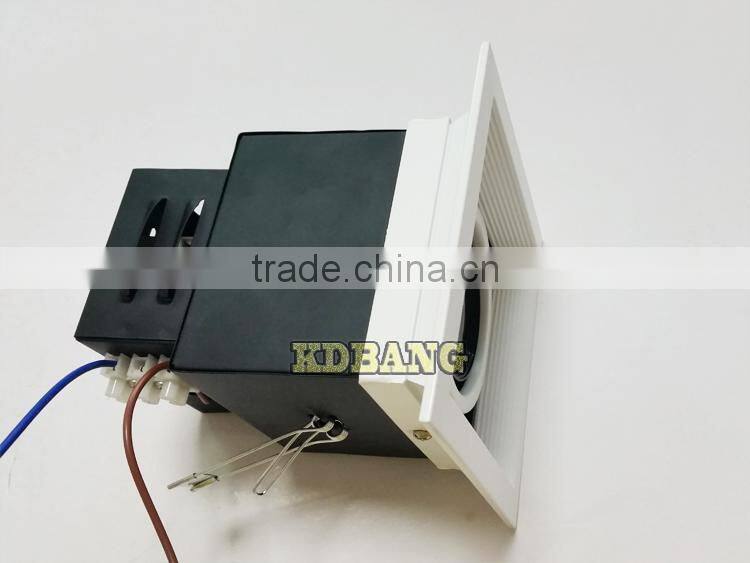

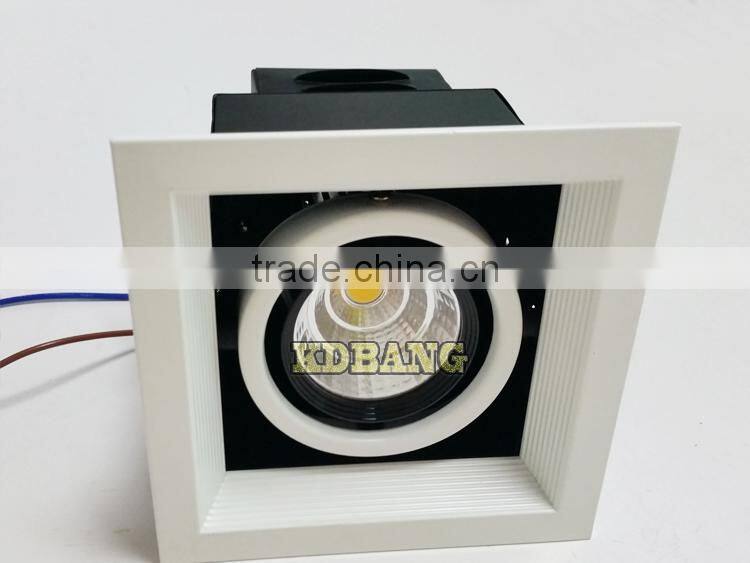

Square LED Downlight retrofit description picture
Square LED Downlight retrofit real photos and engineering project
Square LED Downlight retrofit Packaging:
Packaging size: 28.5*15.5*15cm/pc
Square LED Downlight retrofit Shipping
1. Payment term: T/T 30% deposit, balance before shipping.
2. Lead time : a week after deposit received .
3. Shipping port: Zhongshan, GuangDong, China.
