2015 new sale CNC wire cutting EDM DK7740

Product features

1.High-performance pulse power supply with mufti-level two-range amplifier, applicable to thick jobs, the thickest being≥800mm.

2.Stable, efficient,lowloss pulse power supply, the maximum cutting efficiency being 120mm/min and

the molybdenum wire loss rate≤0.01/80000mm.

3.Backlash compensation:3B language direct compensation, ranging from 0-9999, as well as backlash compensation with the angle-clearing function, the all-angle rotation function, the translation function,the command reverse function, the command

reverse function and the proportionate scaling function.

4.The fuse protection function, the automatic centralizing and edge-tracing processing and the alarm upon finished job functions.

5.Industrial personal computer-controlled pulse power supply, vertical case, color interface,capable of automatic editing,ISO codes

 compatible with 3B,4B languages with simultaneous programming, color 3D figures and real-time cutting sample pictures on display.

6. Standard configure RS-232C interface, workable with Internet accession.

7. Optional hard disk installation and windows desktop, multiple choices for the customer.

cnc wire cut edm dk series

1.Large travel.
2.Four axes independent UV work.
3.Work pieces to 600mm thick.
4.Taper angles up to ± 30°.
5.Standard model is equipped with  ± 3° taper attachment.
6.Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
7.Accuracy: 0.015mm, even 0.01mm.
8.Roughness: Ra 1.6-2.5 µm.
9.Low consumption, material saving.
10.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
11.Advanced CAD/CAM software with file transfer and translation capabilities.
12.High cutting speed modular is optional.

Products specifictions

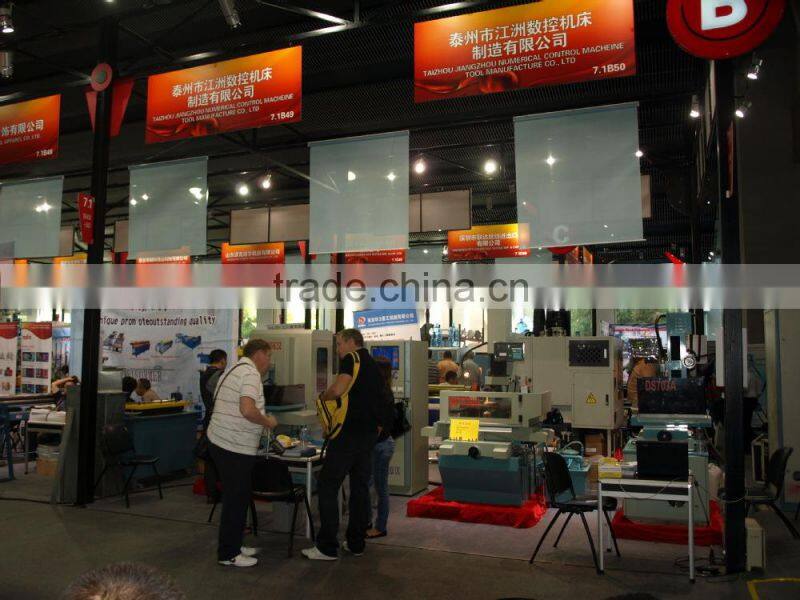

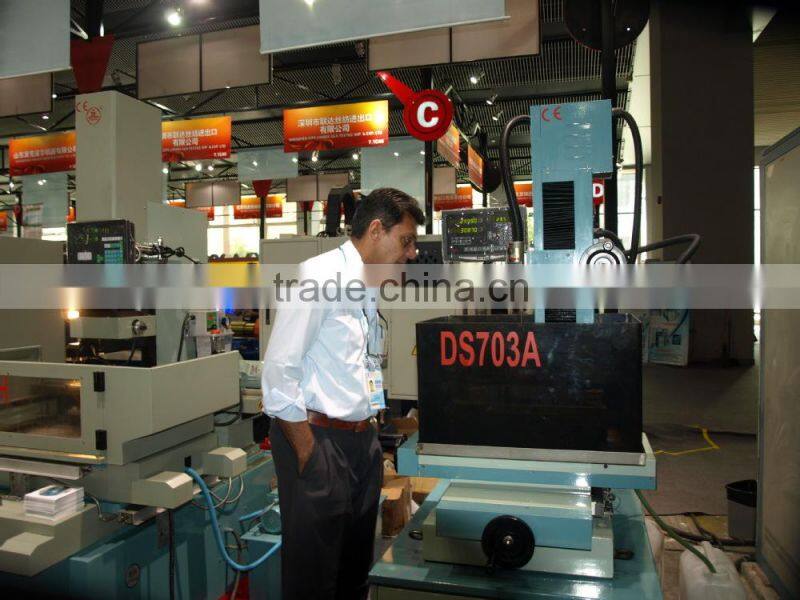

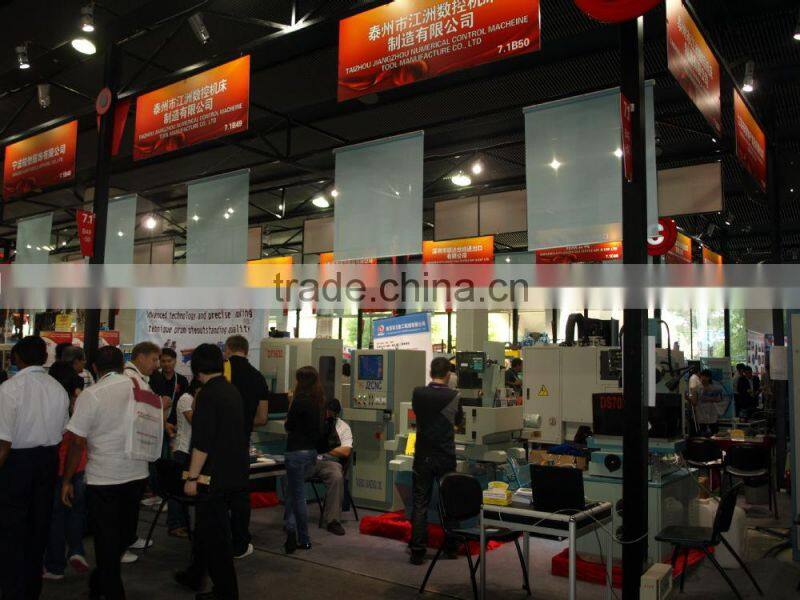

  Pictures About us:

Certificates:
