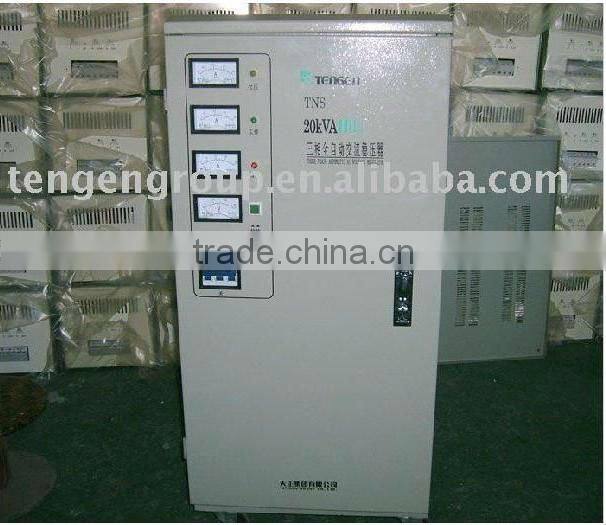

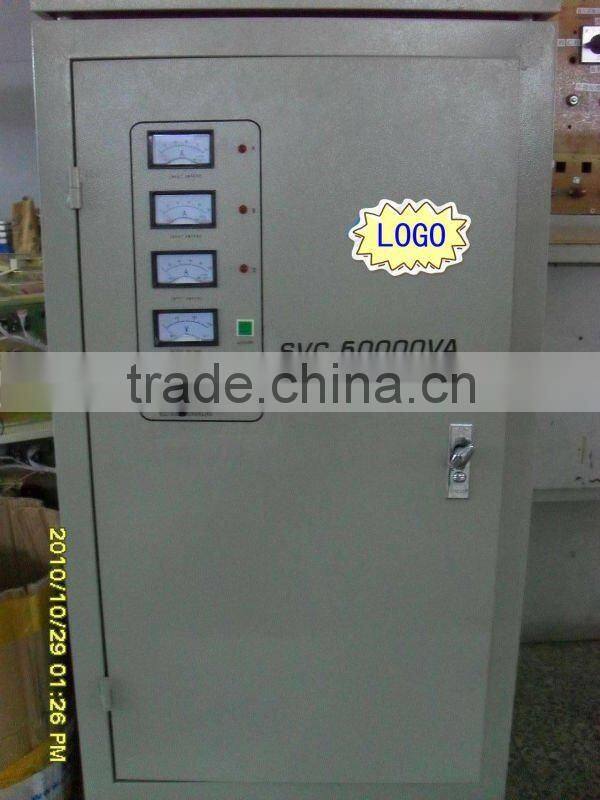

Three Phase Auotomatic Voltage Stabilizer

FOB Price

US$ 5 - 15 / Piece

400 Pieces(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Tengen or OEM
Model Number	SVC-1000	Usage	SVC
Phase	Single Phase	Current Type	Other

Product Description

1.Feature:

1.SVC Automatic Voltage Regulator
2.Servo Motor Type
3.Input voltage:160-260V
4.Output voltage:110V/220V
5.CE Certficate

2.Specification and Technical:

SVC automatic voltage stabilizer consists of contact voltage regulator, sampling control circuit and
servomotor as well. It has excellent features, such as small waveform distortion, high efficiency,
high power factor, free from the effect or frequency variation of supply. It can be widely used in most
situations where the voltage stabilization is required.

Input voltage	150V-250V
Output voltage	220V±3%, 110V±3%
Frequency	50/60Hz
Response time	< 1sec. (against 10% input voltage deviation)
Efficiency	> 90%
Ambient temperature	-10~±40°C
Relative humidity	< 90%
Waveform distortion	Non-lack fidelity waveform
Power factor cosφ	0.8
Insulation resistance	> 5MΩ

3.Size and Pacage

Type	Outline (cm)			Weight (kg)	Qty/CTN
Type	L	W	H	Weight (kg)	Qty/CTN

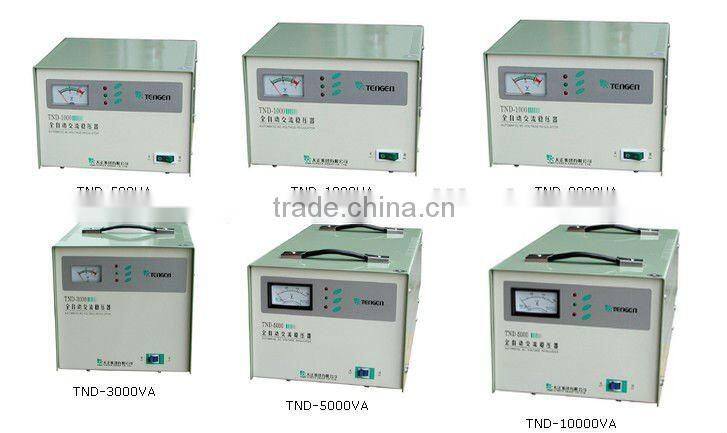

SVC-500VA	18.5	15	12.5	3.8	4PCS
SVC-1000VA	21	18	14.5	6	4PCS
SVC-1500VA	21	18	14.5	6.5	4PCS
SVC-2000VA	27.5	23.5	18.5	9.5	1PC
SVC-3000VA	29	23	22	13	1PC
SVC-5000VA	45	24	18.5	19	1PC
SVC-7500VA	47	26	22	35	1PC
SVC-10000VA	47	26	22	37	1PC
SVC-15000VA	42	38	73	69	1PC
SVC-20000VA	42	38	73	72	1PC
SVC-30000VA	42	38	83	90	1PC
SVC-5kVA	28	30	46	20	1PC (Cabinet)
SVC-10kVA	44	32	56	30	1PC (Cabinet)

4.Package ready for shipment

5.Production Line:

6.Certificate List

7.Attend the Canton Fair and others:

8.Term of Payment:

(1).Order Amount<USD3000;

All payment paid before shipment

(2).Order Amount>USD3000:

30% deposit, 70% balance against copy BL.
