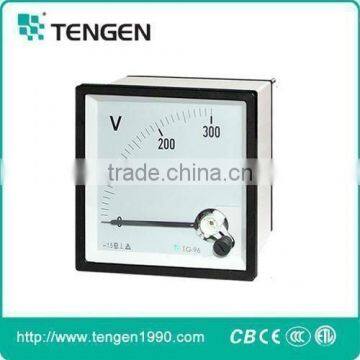

Tengen brand AC voltage meter

1.Feature:

1)Square shape analogue ampere panel meter
2)Size 96x96 .72*72,45*45
3) 50/5A
4)Accuracy: Class 1.5
5)ABS and PC material

 2.Specification and Technical:

Features:

Measuring the current with frequency ranging from 15Hz to 100Hz, these meters indicate true RMS values and are substantially independent of system waveform.The nominal mark is T.

Accuracy: Class1.5

Case: Non-combustile ABS plastic material is used for making SF series'external case,and PPO plastic material is used for SF series's base; while Non-combustible PC plastic material is used for making SFT series'external case and base. Both of which will not suffer deformity under long-term use at 70°C and 120°C respectively. The highest enclosure code is IP54.

Changeable scale: Scale can be changed without opening meter, convenient to use, dust proof. Under the same secondary current, scale-change can be conducted without loss of accuracy or damaging the meter (48×48 model must have identical scale class range).
Mounting: flush mounting with bracket.

3.Special prodution Picture

4.Package ready for shipment

5.Production Line:

6.Certificate List

7.Attend the Canton Fair and others:

8.Term of Payment:

(1).Order Amount<USD3000;

     All payment paid before shipment

(2).Order Amount>USD3000:

     30% deposit, 70% balance against copy BL.
