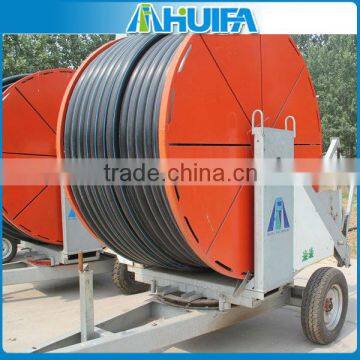

Watering Irrigation Hose Reel Machine with Nozzle

Hose reel machine is turbine-driven machines designed for fully mechanized and labor-saving irrigation.

The main characteristic is lower pressure, water and energy saving, lower intensity, better atomization, smaller influence by wind, it is widely used for large wind area and low economic crops which has higher atomization requirement.

Main Features:

1) Perfect uniform irrigation.
2) Better water and energy-saving.
3) Smaller influence by wind.
4) Lower pressure, lower density.
5) Better atomization.
6)Abrasion-proof, erosion-resisting and durable PE pipe.

The main components of boom irrigation include water turbine, oriented device, gear box, sprinkler, PE pipe, reel frame, boom, and chasis.

Boom parameter:

Operation steps:

1. Put the hose reel irrigation machine on the end of the field.
2. Pull PE pipe and sprinkler car to the other of field by tractor.
3. When water reaches certain working pressure, spray gun or cantilever starts sprinkling. Meanwhile, main machine using water pressure through water turbine, gear box and other drive system producing mechanical kinetic energy drives the reel.
4. When sprinkler car moves back with designed speed when reel rotating, sprinkling while walking until the irrigation finish.
5. When sprinkler car moves to main machine, it can be lifted and fixed into main machine.
6. Cut the water source, and moves to another field & restart irrigation.

Packaging details:

1. For 50-150Tx, can be shipped by LCL.

2. For 75-300Tx, 2 sets in a 20GP, and 5 sets in a 40HQ.

3. For 75-400Tx and 90-300Tx, 4 sets in a 40HQ.

Pre-Sale Service:

1. Consultant service (Answering client's questions)
2. Primary design plan(Free)
3. Help client choose suitable irrigation system
4. Price calculation
5. Business&technology discussion

After-Sale Service:

1. Guiding installation

2. Questions during installation
3. Usage feedback
