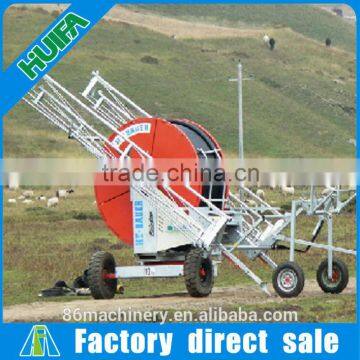

High quality automatic lawn boom irrigation equipment
- 300 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
-
Hot sale automatic rain gun sprinkler agricultural spray machine
-
Automatic watering system farming machine
-
Automatic travelling rain gun irrigation system used
-
2016 water reel spary gun aquaculture equipment used for sale
-
Long service life Huifa irrigator/irrigation system JP series
-
Professional supplier outdoor irrigation system
Product Details
Condition | New | Place of Origin | Henan, China | |
Brand Name | Huifa | Model Number | 75-300Tx | |
Material | Metal | Feature | energy saving, water turbine driving irrigation system | |
Diameter | 3 inch | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High quality automatic lawn boom irrigation equipment
Quality is our culture
Best Watering&Irrigation System is turbine-driven machine designed for fully mechanized and labor-saving irrigation.
Characteristic: With simple structure, high degree of automation, strong adaptability, simple operation and multistage speed, it is the ideal water-saving irrigation machine and tool and also can be used in different areas for water saving irrigation projects.
Irrigation System Working Photos:
Spraying/Sprinkler Effect:
Finished Irrigation Products:
Real Photos from Huifa!!! Beware of Copy!!!
Technical Parameter:
Basic Unit | Model | PE Pipe Dia. | PE Pipe Length | Max.Strip Width | Water Flow m3/h | Connection Prssure | Nozzle No. *Range |
65Tx | 65-220Tx | 65mm | 220m | 36m | 11.41-38.3 | 3.0-7.0Bar | 13*4.4-7.5mm
|
65-250Tx | 65mm | 250m | 36m | 11.41-38.3 | 3.0-7.0Bar | ||
75Tx | 65-340Tx | 65mm | 340m | 36m | 11.41-38.3 | 3.0-7.0Bar | |
75-300Tx | 75mm | 300m | 36m | 11.41-38.3 | 3.0-7.0Bar | ||
85Tx | 75-350Tx | 75mm | 350m | 36m | 11.41-38.3 | 3.0-7.0Bar | |
75-400Tx | 75mm | 400m | 36m | 11.41-38.3 | 3.0-7.0Bar | ||
90-250Tx | 90mm | 250m | 36m | 11.41-38.3 | 3.0-7.0Bar | ||
90-300Tx | 90mm | 300m | 36m | 11.41-38.3 | 3.0-7.0Bar |
Attached Boom/Cantilever Parameters: | |
Boom Length | 26m |
Covering width | 36m |
Water flow | 13-60m3/h |
Nozzle Diameter | 4.4-7.5mm |
Rainfall | 8-50mm |
Degree of uniform | > 0.85 |
Material | Stainless Steel |
Application | small plant or vegetable request small rainfall |
Advantage | Lower pressure, small water-drop, higher water distribution uniform, small influence of wind |
Huifa Machinery is a professional manufacturer of various irrigation systems and greenhouse, export to more than 40 countries.
Main products including towable pivot irrigation system, center pivot irrigation system, hose reel irrigation system, sprinkler irrigation system, drip irrigation system, boom sprayer, greenhouses and related accessories.
Hot market:
America:America,Canada,Mexico,Peru,Brazil,Chile,Bolivia,SaintLucia,Dominica, ect,.
Africa: Zimbabwe, Ghana, Zambia, Nigeria, Congo, Angola, South Africa, Ethiopia, Kenya, Tanzania, Uganda, Mozambique ,Cameroon, ect,.
Asia:Philippines,Thailand,Indonesia,India,Turkey,Uzbekistan,Georgia,Yemen.ect,.
Oceania: Australia, French Polynesia
Middle East: Egypt, Sudan, Yemen
Europe: Norway, UK
1. Promp shippment: By reputed shipping line and professional document.
2. Cargos photo: before and after loading into container.
3. Packing: new and strongseaworthy packing or as buyer's special request.
4. Installation video and manuel delivery with cargo.
5. Feedbak email after endusers received the cargo.
6. OEM&ODM is welcome. Customization according to your need .
7. After sale service including:trouble shooting,proposing solutions and providing spare parts.
8. Strict quality control: raw material purchase, production process quality monitoring before shipment quality test.
9. Customer service tracking: before and after placing order, we'll serve you as always."
1.Can you give me a preferential price?
It depends on the quantity of your order. .More quantity ,better price.
2 .Which model is suitable to my land?
Pls tell us your farm land length and width, and we will recommend the most suitable model according to your land condition.
3.How about the packaging of the equipment?
The equipment will be sent by packed into wooden case.
You just need to assemble them after receipt the goods. It is assemble easily, and we can offer you an instruction video.
4. About Fumigation-free wooden case?
Raw material of fumigation-free wooden is composite board or plywood, the board is made by all types of wooden remaining material which has been treated by high temperature and pressure disinfection before molded.
The finished wooden case is free of insects and worm eggs, and does not cause harm to agriculture and forest resources. Therefore, when export by using this kind of wooden case, fumigation is not required by customs authorities.
5.Do you assemble the machine in your factory?
Generally speaking, sprinkler irrigation machine is sent without assembling, and customer assemble and install it after receipt the products.
Because if we sent the machine after finishing assemble, the CBM will be increase, it is very space-consuming and shipping freight is higher.
6. Can i remove the irrigation lines to another land and continue irrigation?
If you want to move the sprinkler irrigation machine to another land and continue irrigation, you just need to tear down the water hose and sprinklers and move to another land.
7.How about your guarantee period?
Our quality guarantee term is for 1 year. Malfunctions which are caused by machine-self and quality will be responsible for us. Other malfunctions which are caused by operation mistakes, man-made problems will be responsible for clients-self.
8. For balance payment:
It takes 5 days to send your goods to the port.
And it takes 2-3 working days we get bank notice money arrive after you make wire transfer. So pls arrange the balance payment asap.
9. About delivery port:
For LCL(less than a full container), we usually sent the products to Shanghai port.
For FCL(a full container), we usually sent the products to Qingdao port.
If need we check the shipping cost, pls give us your destination port, and we will check the shipping cost for your reference.
Your visit and inquiry is welcomed!
Contact us immediately for working video and quotation!
