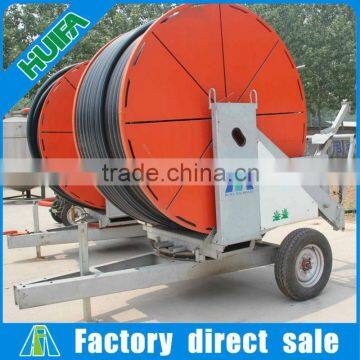

Big rain gun farm irrigation systems is turbine-driven, automatic rewinding and water-saving irrigation equipment.
The water comes into the water turbine by pressure, using water kinetic energy drive water turbine rotating.
The rotation of the water turbine by multi-function variable speed device drive capstan rotation, which drag PE pipe and realize sprinkler car uniform recycling, meanwhile, the pressure water into PE pipe transmission to the spray gun, and to realize sprinkling.
With simple structure, high degree of automation, strong adaptability, simple operation and multistage speed, is the ideal water-saving irrigation machines and tools. It can be used in different areas of water saving irrigation project.

Main Features

1) Easy in  installation, movement and maintation.

2) Good effect in the water-saving, spraying uniformity&crops yield increasing

3) Low labor cost and high efficiency.

4) Long service life.

5) Automatic, traveling, operate safely and strong adaptability.

Gear Box

As the control system of whole machine, this system can realize the clutch, brake, variable speed, fast and safe recovery of transmission system.

The gear box itself with two stage speed change, also can realize two stage speed change by pulley, so this device with four stage speed change.

Oriented Decice

The Key part of oriented device is oriented rod, which adopts automatic forward and reverse "8"screw guiding system, screw thread adopts rectangular thread, the joint part with sleek transition.

It can effectively guarantee the reliability of the reversing, and ensure PE pipe safely and orderly arrangement in the winch. And guide walk uniform, no card hysteresis,

PE Pipe

The PE pipe uses the foreign formula, and it is a new high-tech product after several years improving. The use life can reach 15 years at -30℃～+40℃ environment.

PE pipe adopts anti-aging, corrosion imported raw material, and qualification is in international leading.

Water Turbine

Water turbine is the heart of the whole machine parts, it is the power-drive system of machine, also can regulate water flow, ensure PE tube recovery speed uniform.

It composes elbow, vortex shell, turbine and other parts.
With automatic speed adjustment function, to ensure the sprinkler car walking speed deviation less than 20%.

Pre-Sale Service:

1. Consultant service (Answering client's questions)
2. Primary design plan(Free)
3. Assisting client to choose suitable irrigation system
4. Price calculation
5. Business&technology discussion

After-Sale Service:

1. Tracking of production process

2. Handling of delivery issues
3. Relevant documents
4. Service of installation supervision
5. Instruction for using after installation completed
