Internal Antenna Car Gps Device GPS Gate Gps Tracker

FOB Price

Negotiable / Unit

50 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

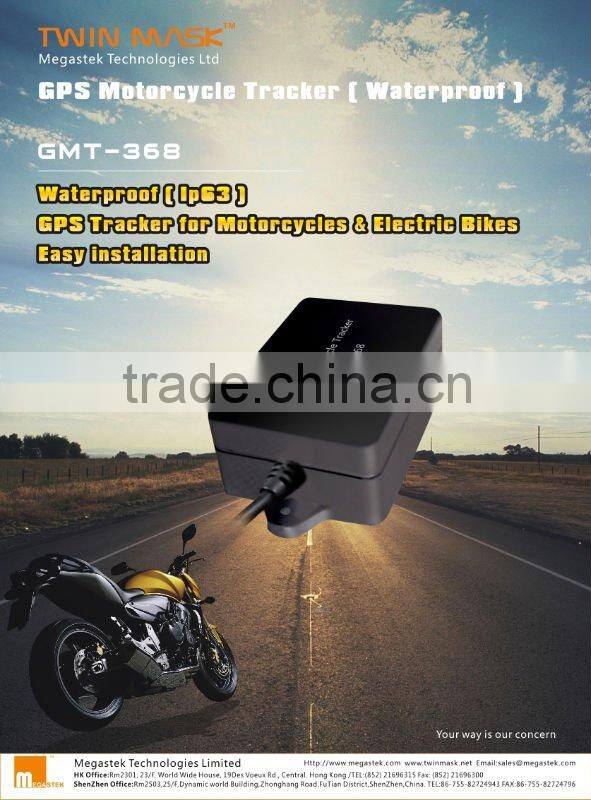

Waterproof (IP63) gps vehicle tracker with 1 output switch

feature&function

Waterproof (IP63)

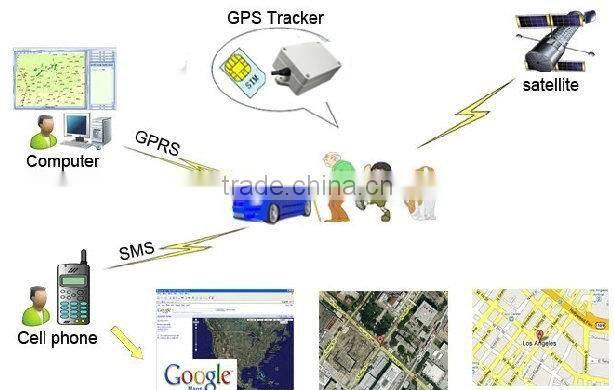

SMS and GPRS TCP/UDP Communication

Support setting 3 authorized cell phone numbers

Track on demand

Track by time interval

Geo-fencing control

in-build backup battery

SOS button for immediate rescue and alarm

2 digital outputs, 3 digital inputs and 2 analog inputs

Speed limit alarm

No GPS signal alarm

Low battery alarm

Vibration alarm

Data Logger in no GSM signal area

Power saving mode

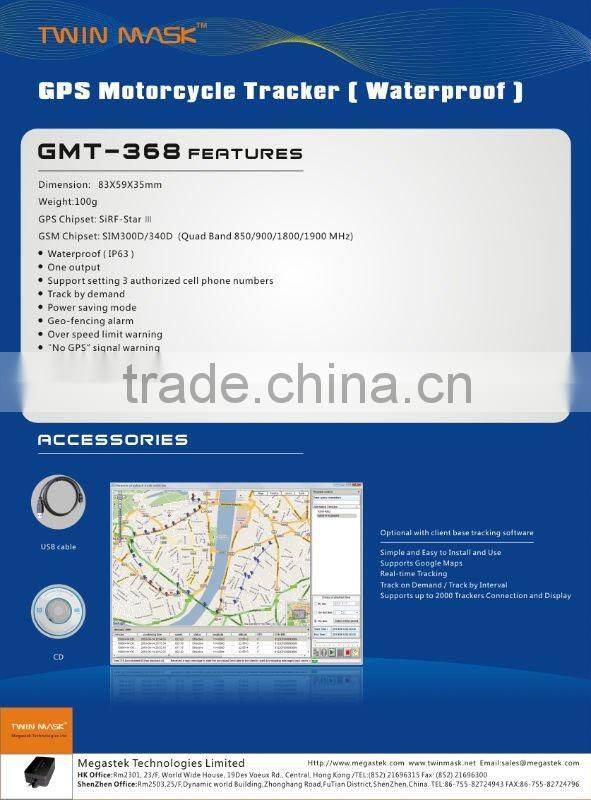

Items	Specification
Power Supply	DC 7-24V/1.5A
Backup Battery	Rechargeable 1200 mAh battery (3.7V),
Normal Power Consumption	50mA/h
Dimension	83mm X 59mm X 35mm
Weight	100g
Operating Temperature	-20°C to 55°C
Humidity	5% to 95% Non-condensing
GSM Module	Quad Band GSM 850/900/1800/1900Mhz
GPS Chipset	Latest GPS SIRF-Star III chipset
GPS Sensitivity	-159 dB
GPS Frequency	L1 1575.42MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Position Accuracy	< 15 M 2D RMS
Velocity Accuracy	0.1 M/S
Time Accuracy	1 us synchronized to GPS time
Reacquisition	0.1 ms
Hot Start	1 sec., average
Warm Start	35 sec., average
Cold Start	37 sec., average
Altitude Limit	18,000 meters (60,000 feet) max.
Velocity Limit	514 meters/second (1000 knots) max.
Acceleration Limit	Less than 4g
Work Time using backup battery	12 hours in normal mode and 55 hours in power-saving mode
Memory	32M-BIT flash memory
LED	3 LED lights to show power, GPS, GSM and other status.
Button	One SOS button for making phone calls and sending SMS
Interface	2 digital outputs; 3 digital inputs (all positive triggering); 2 analog inputs.
