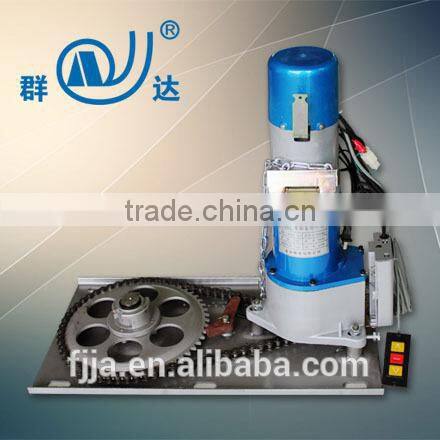

Automatic Remote Control Roll-up Door Motor JM1500-3P
- XIAMEN
You May Like
-
Remote Control Copper Wire Roller Shutter Motor 3P(1000KG)
-
Specialized Remote Control Rolling Door Motor 3P(1500kg)
-
Copper Wiring Automatic Rolling Door Motor (500kg-3P)
-
JM3P(500)Electric Control Roll-up Door Motor
-
1000KG-3P Fireproof Garage Rolling Door Motor
-
Specialized Automatic Rolling Door Motor JM3P(1500kg)
Product Details
| Place of Origin | Fujian, China | Brand Name | QUNDA | |
| Model Number | Roll-up door motor JM1500-3P |
Product Description
Roll-up Door Motor 1500kg-3P :
specifications:
Working environment and conditions:
1) Air temperature change as well as season.
2) Relative humidity:90%(25°C).
3) Voltage and frequency is in line with the product nameplate.
4)Short hour working system, continuous operation not exceeding 5 mins.
5)Long useful life
Feature:
1) Shell : Aluminium alloy , solid and lingt but durable and easy to install.
2) Thermal efficiency protection device, protect rolling door from damage and motor burned.
3) When power failure, it convenient to manual operation.

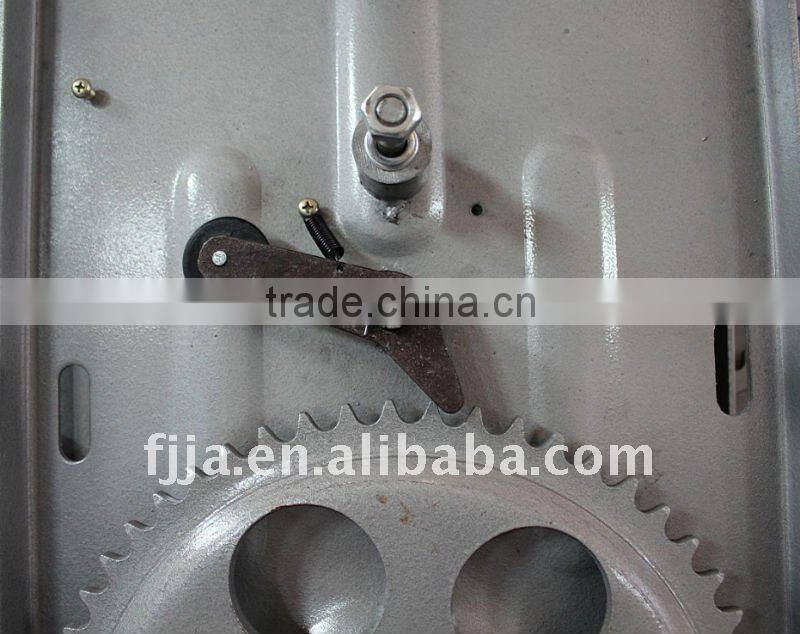

4) Insurance device for chain broken,automatic slack adjuster for chain.
5) Equiped by a stand-by battery (14AH/12V) , and it works when the power off.
6) Remote control: long-distance operation.
| Model | Maximum weight doors(Kg) | Maximum lift height (M) | Power (W) | Rated current(A) | Output torque(N.m) | Big wheel rolls turn(r/min) | Chain No. | Carton Size (CM) | Accessories Carton Size (CM) |
| 380V 50HZ (380V 60HZ) | |||||||||
| JM300KG-3P | 300 | 6.5 | 180 | 1.2 | 168 | 6.2 | 10A | 54*26*20.5 | 53*33*10 |
| JM500KG-3P | 500 | 6.5 | 250 | 1.3 | 343 | 6.2 | 10A | 54*26*20.5 | 53*33*10 |
| JM600KG-3P | 600 | 6.5 | 250 | 1.3 | 412 | 6.2 | 10A | 54*26*20.5 | 57.5*33*10 |
| JM800KG-3P | 800 | 7 | 300 | 2 | 607 | 3.4 | 10A | 55.5*26.5*26.5 | 68*37*12 |
| JM1000KG-3P | 1000 | 8 | 400 | 2.3 | 1102 | 6.5 | 12A | 56*27*27 | 68*37*12 |
| JM1300KG-3P | 1300 | 8 | 600 | 3 | 1372 | 6.5 | 12A | 56*27*27 | 68*37*12 |
| JM1500KG-3P | 1500 | 8 | 600 | 3.2 | 1610 | 5.7 | 12A | 56*27*27 | 76*36*12 |

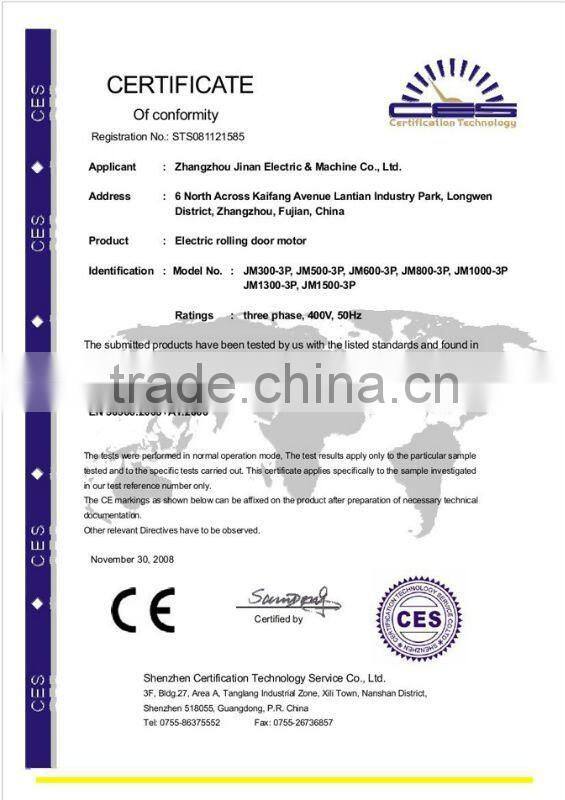

Cetificates:
Notice: Your prompt inquiry after the Above Technical Parameters will be highly appreciated.Thanks.
"Pursuing quality,permanent and continuous service" is our motto. With the positive attitude of keeping-improving and the spirit of striving,exploring and being responsible,we sincerely hope to receive your detailed inquiries and look forward having the chance to establish long-term,friendly,mutual reliance business relationship with you in the near future.
Best regards,
----ZhangZhou JinAn Electric & Machine Co.,Ltd.
