Product Details
| Condition | New | Laser Type | CO2 | |
| Applicable Material | Acrylic, Crytal, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Wood | Cutting Thickness | 0-15mm depends on the material and laser power | |
| Cutting Area | 600*400mm | Cutting Speed | 0-3600mm/s, 0-3600 mm/min | |
| CNC or Not | No | Cooling Mode | Water Cooling | |
| Control Software | Coreldarw | Graphic Format Supported | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | |
| Place of Origin | Shandong, China | Brand Name | Guangyue | |
| Model Number | GY-460 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

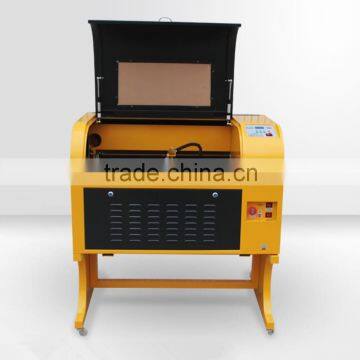

GY4060 400x600mm co2 laser engraving cutting machine engraver 40w
DESCRIPTION
| Application of co2 laser engraving cutting machine engraver 40w |
| Mainly used for the engraving and cutting of little artistic works.such as engraved portraits,badges,breast cards and various engraved packages.It can also engrave little artistic ,seals and crabs. |
PICTURES FOR DETAILS
SPCIFICATION
| Model | GY 460/4060 co2 laser engraving cutting machine engraver 40w |
| Colour | Yellow,Green,Red(optional) |
| Working Table Size | 600 *400mm |
| Laser Tube | Sealed CO2 glass Tube |
| Working Table | Honeycomb/Aliuminium (optional) |
| Laser Power | 50W/60W/100W |
| Cutting Speed | 0-3600 mm/min |
| Engraving Speed | 0-30000mm/min |
| Resolution | ±0.05mm/1000DPI |
| Minimum Letter | English 1×1mm (Chinese Characters 2*2mm) |
| Support Fils | BMP,HPGL,PLT,DST and AI |
| Port | USB 2.0 Plug and play |
| Software | CorelDraw (Direct Output) |
| Motor | Stepper |
| Power Voltage | AC 110-220V±10%,50-60Hz |
| Working Environment | 0-45℃(temperature) 5-95%(humidity) |
| Power consumption | <300W (Total) |
| Z-Axis Movement | Automatic (0-300mm adjustable) |
| Position system | Red-light pointer |
| Cooling way | Water cooling and protection system |
| Cutting thickness | 0-15mm (upon materials type) |
| Rotary device | φ10-150×300mm(optional) |
| Packing Size | 1220*800*780mm |
| Gross Weight | 120kg |
| Material | Engraving | Cutting | Material | Engraving | Cutting | |
| Natural wood | √ | √ | Paper | √ | √ | |
| Acrylic | √ | √ | Mylar | √ | √ | |
| Glass | √ | X | Pressboard | √ | √ | |
| Double color plate | √ | √ | Rubber | √ | √ | |
| Bamboo | √ | X | Plywood | √ | √ | |
| MDF | √ | √ | Fiberglass | √ | √ | |
| Cloth | √ | √ | Painted metals | √ | √ | |
| Leather | √ | √ | Plastic | √ | √ | |
| Marble | √ | X | Ceramic | √ | X | |
| Matte boards | √ | √ | Coated metals | √ | X | |
| Stone | √ | X | Other materials | √ | √ |
| Laser power (W) | Acrylic(mm) | Plywood(mm) | MDF(mm) |
| 40W | 3 | 2 | 1.5 |
| 60W | 8 | 5 | 3 |
| 80W | 12 | 8 | 6 |
| 100W | 15 | 12 | 9 |
| 130W | 20 | 15 | 12 |
| 150W | 25 | 20 | 15 |
Three colours optional or as customer's requirments
Details for parts :
Features:
This machine can be used in which industry?
This machine can make which materials?
SOME OF SAMPLES SHOW
PACKAGING
COMPANY INFORMATION
SERVICE
1.This type of laser engraving machine is guaranteed for one year;consumable parts,as laser
tube and lens is for 3 months.Any other parts are provided as agent's price
2.Full English instructions and installation Videos
3.24hrs of phone,skype,Email& trademanager online service
4.All the machines has been adjusted before delivery
5.Professional technical team can support you the best technical guidance&meet your various requirments
6.OEM service availble as your orders
CONTACT INFORMATION
Our tenet "quality first, credit standing paramountcy, price in reason, delivery in time"
Welcome to cooperate and develop with us!
If any questions,pls just contact us at any time.
