North America standard temporary fence

North America standard temporary fence

pany information

Anping Xiangyuan Hardware Wire Mesh Products Co., Ltd. is a professional manufacturer of various wire mesh fences for expressway, railway, control barriers and railings, municipal engineering fencing, bridge security fencing, sports fencing, and also some kinds of wire mesh and processed products.

Xiangyuan has more than two hundred employees including 25 technical experts and 30 engineering installation workers. Xiangyuan has its own automatic wire mesh welding equipments, plastic dipping production lines. With choice steel materials and modern equipment, our products are well sold in more than twenty princes and cities of China, also exported to Japan, Korea, USA, Europe and Southeast Asia countries. Our wire mesh fence and railing products are awarded separately the lot production certificate for transport engineering railings by China related authorities, and its installation engineering is awarded the certificate of transport engineering barrier railings installation and engineering.

factory pictures

products description

Temporary Fence,Temporary fencing, portable fence, removable fence, pool fence, and swimming pool fencing.

This kind of Temporary Fence is composed of welded mesh panel, chain link fence, expanded mesh panel and tubes. The tubes are made of high quality mild steel, they can be hot dipped galvanized, electro galvanized.

The fence panel, the post and the hook of Temporary Fence will be welded together. Between every two pieces of the fence, we will install them with the steel clamp. Generally, the post is the round tube(32mm, 48mm OD). We can insert the round post into the base. It is not only easy to install, but also quite refined and firm.

Hot-dipped or galvanized Temporary Fence is high-strength modular fence to meet or exceed industry standards.

2.The System Of Temporary Fence

The Panel Of Temporary Fence

We Manufacture And Supply Galvanized Temporary Fence Panels, Hot Dipped Galvanized Zinc Layer Available 42 Microns and 100 Microns, mainly supply to Australia market .

Our flagship Temporary Fence panels are designed to withstand the test of time and the harsh conditions experienced in many construction and resource sites.

This panel incorporates the following features:

Anti -climb mesh infill

360° weld between the vertical & horizontal pipe

Horizontal pipe ends crimped for increased strength.

Above Industry Benchmark in thickness of galvanizing

Easy to install and to handle

Panel Size : 2100mm height x 2400mm width

Mesh : 60mm x 150mm

Diameter :4.00mm

Clamp Suit OD 32 Pipe

Finish :Hot Dipped Galvanized 42 Microns

Fencing System OD 32 x 1.40mm

HGS :Galvanized 42 Microns

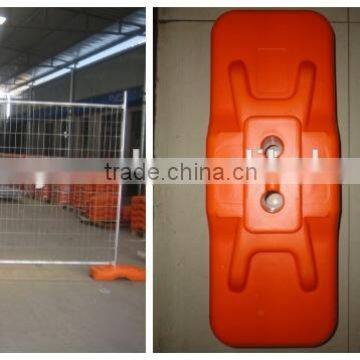

The Block Of Temporary Fence

 Plastic Fence Block Size : 560mm x 245mm x 130mm and 600mm x 220mm x 150mm

Recycled Rubber Block Size : 767mm x 192mm x 126mm

clamps for temporary fence

High quality Temporary Fence Clamps used to secure the panels together.

Hot Dipped Galvanised to Australian Standard – 42 Microns.

Specially moulded and 4mm thick for additional strength.

  We Supplied Fence Clamp System Are Hot Dipped Galvanized 100 microns with 4.00mm Thick ,Included 2 Shear Clamp And 1 set blots and Nuts.

The Bracing Of Temporary Fence

used to support the temporary fence panel in high wind area finish by hot dipped galvanized 42 microns thickness,per stay required two fence clamp and three concrete feet the additional strength to secure fence panel stand well in high wind per 4.8meter or 7.2meter one stay live.

 The Hand Rail Of Temporary Fence
