INST waterproof cable connection

FOB Price

USD $1 - $3 / Piece

50 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	INST
Model Number	M8	Type	RCA
Application	Power	Gender	Male

Product Description

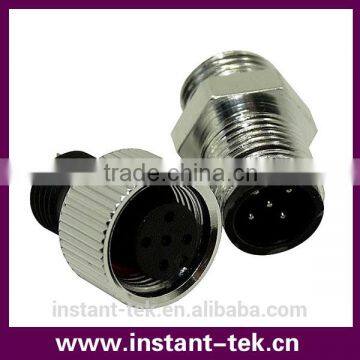

INST waterproof cable connection

Description	Details	Code
1. Connector Size	INST-M12	M12
2. Current Rating	7A	7
3. Number of Contacts	3,4	3,4
4. Connector Type	Without SR	B
5. Connector Gender	Male,Female	M,F
6. Contact Gender	Male,Female	M,F
7. Assembly Style	Field Installation	M
8. Mating Style	Screw	S
9. Backs hell	Straight	L
10. Waterproof Rating	IP68	8
Material: Core Material: PA6+30%GF UL94V0 Pin and Hole: Brass, Nickle Plated or Gold plated Sealing: Silicone Cable: Customize Other type cable for customize
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45℃~+105℃ Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.

Company Profile:

Shenzhen Instantware Information Technology Co., Ltd. specializes in designing and manufacturing of waterproof connectors and plastic mold(including connector precision mold ) with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are widely used in aerospace, automotive, industry and research, medical, railway, energy, military and other industries. Since 2009, the company has passed ISO9001:2008 international quality system certification, some of which successfully passed the TUV, CE and IP68 certification. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. Our vision is to be the most respected manufacturer. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
