Home > Products > 40 Rackmount Cabinet > XAX2709WM 27U 600mm 800mm 900mm 1000mm availablewallmounted wall mounted Rack mount Rackmount Server Cabinet

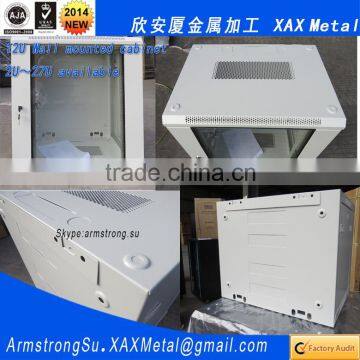

XAX2709WM 27U 600mm 800mm 900mm 1000mm availablewallmounted wall mounted Rack mount Rackmount Server Cabinet

FOB Price

US$ 100 - 1,000 / Unit

1 Unit(Min. Order)

Port Xiamen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	XAX Metal
Model Number	XAX27WM	Protection Level	IP54
Type	Network Cabinet	External Size	23.6217.7114.48 inch

Product Description

Specifications

600mm 800mm 900mm 1000mm available
wall mounted
Rack Mount
Server Cabinet
wallmounted

XAX2709WM 27U 600mm 800mm 900mm 1000mm availablewallmounted wall mounted Rack mount Rackmount Server Cabinet

FAQ

For more information contact

armstrongsu.xaxmetal∂

Skype:Armstrong.su
Phone:+86-13400620992

Product Description

For more information contact

armstrongsu.xaxmetal∂

Skype:Armstrong.su
Phone:+86-13400620992

Advantage

1). Main structure made of Nine Bend Profile Cold Roll Forming. Provide maximum loading over 60kg.

2). White transparent tempered glass front door, black textured screen printing glass on both sides

3). 71% Ventilated Rate of the High-Density Vented Door, 2 round ventilation holes on the top and bottom;

4). Powder coating RAL7035;

5). 4 wheels and hanging ring available

6). Heavy Duty Casters and Leveling Feet, the maximum loading of 800KG (with feet);

7). Flexible and multiple channel alignment on the top and bottom cover, the bottom line hole size can be adjustable

8). Optional mounting base, to fix the cabinet, bottom line, bottom ventilation, rat proof

9). 4 Removable side panels and the rear doors

10). Four post, depth-adjustable rack system with 19" mounts and square holes

11). Perforated roof with cable entry access in the rear

12). Perforated front and rear locking doors (easily removable)

13). Complete optional accessories available

14). Edit by Armstrong Su. Skype:Armstrong.su
Phone:+86-13400620992
Email: ArmstrongSu.xaxmetal AT

Main future

1). Capacity: 27u

2). Dimensions (W x D x H): Check the table below

3). Material: SPCC cold rolled steel

4). Thickness: Mounting profile 0.08" (2.0mm), mounting angle 0.06" (1.5mm), others 0.05" (1.2mm)

5). Surface Finish: Degreasing, pickling, phosphoric, powder coated

6). Degree of Protection:IP20

7). Loading Capacity: 1670lbs

8). Main Parts: Top cover 1 piece, mounting profile 4 pieces, mounting angle 6 pieces, spring lock 2 pieces, key 4 pieces, vented front door 1 piece, heavy duty caster 4 pieces, frame 2 pieces, side panel 2 pieces, bottom panel 1 piece, M6 B-head screw 40 pieces, M6 square nut 40 pieces, Allen wrench 1 piece, M12 adjustable feet 4 pieces

PN	Capacity	Width	Deepth	Height	Dimension	Capacity
	(U)	(mm)	(mm)	(mm)	WDH (Inch)	(CBM)
XAX6406WM	6	600	450	368	23.6217.7114.48	0.1498
XAX6606WM	6	600	600	368	23.6223.6214.48	0.193
XAX6409WM	9	600	450	501	23.6217.7119.72	0.1951
XAX6609WM	9	600	600	501	23.6223.6219.72	0.2513
XAX6412WM	12	600	450	635	23.6217.7124.99	0.2421
XAX6612WM	12	600	600	635	23.6223.6224.99	0.3106
XAX6415WM	15	600	450	769	23.6217.7130.27	0.2888
XAX6615WM	15	600	600	769	23.6223.6230.27	0.3725
XAX6418WM	18	600	450	901	23.6217.7135.47	0.3344
XAX6618WM	18	600	600	901	23.6223.6235.47	0.4309
XAX6422WM	22	600	450	1082	23.6217.7142.59	0.3971
XAX6622WM	22	600	600	1082	23.6223.6242.59	0.5117
XAX6427WM	27	600	450	1304	23.6217.7151.33	0.4755
XAX6627WM	27	600	600	1304	23.6223.6251.33	0.6127

Packaging & Shipping

1.Each cabinet with PV film
2.foam protect each angels
3.Carton outside
4.Straps
5.fumigation-free pallets and wood case if need

Our Services

For more information contact

armstrongsu.xaxmetal∂

Skype:Armstrong.su
Phone:+86-13400620992

Company Information

For more information contact

armstrongsu.xaxmetal∂

Skype:Armstrong.su
Phone:+86-13400620992

N41494; PART7

47U Server Storage Rack Rackmount Server rack cabinet
Server rack cabinet
Nine Bend Profile Cold Roll Forming
9 & 16 Folded Profile making machine
Nine & Sixteen Folded Profile
Metal Section Roll Forming
Rack mount Rackmount,Server Cabinet,computer pc enclosure chassis case shell casing,,
Nine Bend Profile Cold Roll Forming,Ventilated fan,airflow,,
9 & 16 Folded Profile making machine Leveling Feet,Removable side panel,adjustable rack,,
9 & 16 Folded Profile making machine online game,network game,data backup,data center,
9 & 16 Folded Profile making machine ISP/ICP/ISV/IDC,Heavy Duty Casters,,,
9 & 16 Folded Profile making machine network,storage,data,router firewall,
Nine & Sixteen Folded Profile Mainframe,Frame,Wide ,Perforated front and rear locking doors,
Nine & Sixteen Folded Profile 1.75 inch 1.75",4.45cm,4.445cm 444.5mm,44.5mm,
Nine & Sixteen Folded Profile 19inch 19",482mm,465.1mm,width,
Nine & Sixteen Folded Profile 600mm,800mm,900mm,1000mm available,
Metal Section Roll Forming industrial,Horizon,,,
Metal Section Roll Forming IP33 IP34 IP44 IP45 IP55 IP54 IP55,foam sealing,,,
Metal Section Roll Forming 18U 27U 32U 37U 42U 47U,,,,
Metal Section Roll Forming Degreasing pickling phosphoric powder coated,,,,
Nine Bend Profile Cold Roll Forming ANSI EIA RS-310-D IEC297-2 DIN41491 DIN41494 GB T3047.2- 92 ETSI,,,,
Nine Bend Profile Cold Roll Forming PICMG(PCI Industrial Computer Manufacturer's Group,,,,
Nine Bend Profile Cold Roll Forming Rittal ,IBM,Dell,Cisco HP quality,

SPCC cold rolled steel,metal,,,
,,,, processing fabrication machining manufacturing making,cabinet case,cabinet,UPS case,K,.Medieval control box,K,closures,en,about.php,id,company profile,colo-cnc,product,good,metal,process,Factory,overview,LC,sheet metal fabrication,CNC laser cutting service,CNC laser cut parts,CNC laser cutting,cns Air Plasma Arc Cutting,sheet metal fabrication,metal plate processing,iron plate metal plate manufacturing,mild steel plate metal lamella machining,LC,mm to,mm middle thickness,Medium Plate,HOT ROLLED PLATE,Medium-thick Plate,Q,#,MN,LC,furniture,Machinery Manufacture,Locomotives,Textile Machinery,Agricultural machinery,Automotive,LC,boiler plate,Q,R,Q,R,Cr,Moor,CRM or,LC,LC,shipbuilding,metallurgy,Heavy-duty trucks,steel,building,highway,bridge,overpass,dock,auto parking system,Low alloy hot rolled plate,Automobile Manufacturing crossbeam Longitudi,l beam steel,LC,less burr),Stainless steel,structural steel,carbon steel,alloy steel,spring steel,aluminized zinc plates,aluminum,silver,copper,brass,titanium,Container plate,hot rolled coil,flat steel,open flat,cold-rolled steel plate,angle,channel,round bar,stainless steel checker plate,silicon steel sheet,strip,pickling plates,stainless steel composite pipe,manganese plate,hot-rolled ribbed steel bars,steel,silicon steel,billet,heavy rail,tin,round plate,pipe,flange plate,tin plate,galvanized plate,square steel,I-steel,silicon steel,heat-resisting steels Antioxidant steel,LC,high precision,Positioning accuracy,mm,Repeatability,mm,Edge detection precision,W By Speed Pro High-power,Benthonic By star L,mm,x,mm y,mm z,Maximum work piece weight,kg,+,By speed,Maximum axis acceleration,m,s,LC,Cut surface without burrs,No deformation,D Five axis,.Razz,Cutting surface roughness Razz,No notch slag size,Cutting edge
