INST D-sub Series Front Panel Mount 15 Contacts Connector
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | INST, INST | |
| Model Number | D-SUB, D-sub | Type | Other, Adapter, plastic screw type,solder | |
| Application | Other, Power, Power | Gender | Male |
Product Description
INST D-sub series front panel mount 15 contacts connector
Description | Details | Code |
1. Connector Size | INST-D-SUB | D-SUB |
2. Current Rating | 3-7A | 3-7 |
3. Number of Contacts | 9,15 | 9,15 |
4. Connector Type | Without SR | B |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation | A |
8. Mating Style | Screw | S |
9. Backs Shell | Straight /45 degree Angle | ST |
10. Waterproof Rating | IP68 | 8 |
Material: Insulator: UV resistent, Nylon+GFUL94V0 Conntacts:Brass, Nickle Plated or Gold plated Sealing: Silicone RoHS CE | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP68 10m Water 2 weeks Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM. | ||
Packing: 1. plastic bag 2. carton 3. Customize
Shipping:We could offer various shipping solutions for your choice, competitive express freight such as DHL/ FedEx/ UPS...
Shenzhen INST is a professional manufacturer of IP67/IP68 waterproof connectors. INST has its own factory, which is located in Nanshan, Shenzhen. 10 years of experience in this field, INST is now manufacturing the whole range of ,M8, M12, M16, M22, M23 7/8", M36, M58, Dsub, RJ45 waterproof connector and normalized Din 43650 rectangular connectors type A,B,C, both to be cabled and molded, with or without electronic components. The products have been worldwidely exported to the markets as in Germany, Sweden, Denmark, Australia, Dutchland UK, Spain, Israel, USA, Canada and Asia. Our specialty is OEM/ODM.
Q1: What kind of guarantee do you provide ?
A1: 1.100% high quality, all failed parts get free warranty within 30 days after received.
2.Accept 10 years warranty upon customer requirement.
3.Repairs parts are available within 10years; We will inform the EOL products to you from time to time.
Q2: What if the connector which we need have some differences on specifications from yours?
A2: Any difference, we can design and produce according to your requests, which include connector, cable, color, material, mould, processing requirement etc.
Q3: I'm confused about how to choose a waterproof connector which fits my requirements.
A3: We will send you our catalogue. Just tell us the item number according to your requirements. And then you will get the drawing from us.
M12 Series


M22 Series



Other Series

RJ45 Series D-Sub Series

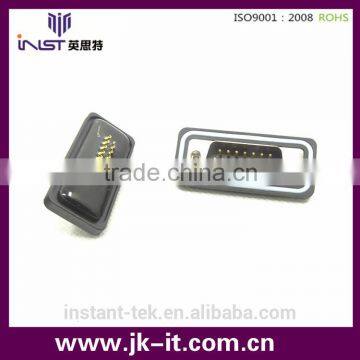

INST D-sub series front panel mount 15 contacts connector

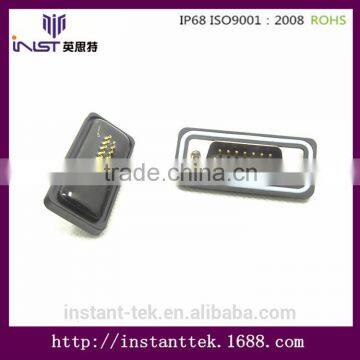

INST D-sub series front panel mount 15 contacts connector

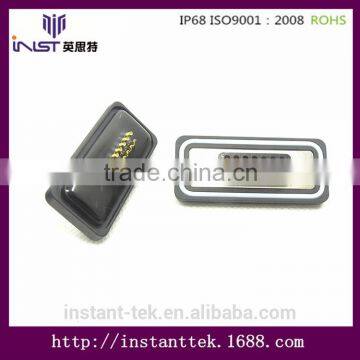

INST D-sub series front panel mount 15 contacts connector
